    Aoxuan WC67Y-160T3200 Torsion Bar Press Brake Integrally Welded Structure

    Ask Lasest Price
    Brand Name : Aoxuan
    Model Number : WC67K-160T3200
    Certification : CE
    Price : $14000-$15000
    Delivery Time : 35 DAYS
    Payment Terms : 50% deposit
    Supply Ability : 300 sets/year
    • Product Details
    • Company Profile

    Aoxuan WC67Y-160T3200 Torsion Bar Press Brake Integrally Welded Structure

    Product Description:

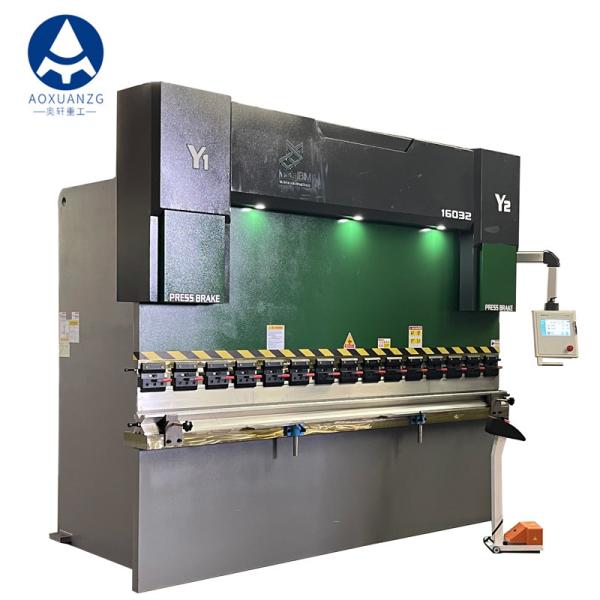

    Torsion Bar Press Brake offers a perfect combination of power and accuracy. This industrial-grade press brake is designed for use in a wide range of metalworking applications. It is equipped withTP10S system, Y1, Y2 axis, and mechanical torsion bar. It has a voltage of 380V/50HZ and comes in a blue color. The maximum bending length it can handle is 3200mm and it is made of high strength steel for durability and longevity. It is a reliable and easy to use press brake that can be used for a variety of metalworking tasks.

    Features:

    • Product Name: Torsion Bar Press Brake
    • Max. Opening Height: 457mm
    • Main Motor Power: 11KW
    • Max. Bending Length: 3200mm
    • Material: High Strength Steel
    • High Efficiency: With torsion bar mechanism, the machine has high efficiency and is suitable for mass production.
    • Compact Structure: Its compact structure makes it space-saving.
    • Integrally Weld Structure: Adopting integrally weld structure, it is durable and reliable.

    Technical Parameters:

    Product NameTorsion Bar Press Brake
    ModelWC67Y-160T3200
    Max. Pressure1600KN
    Throat Depth6times/min
    Ram Stroke200mm
    Main Motor Power11KW
    Voltage380V/50HZ
    ColorBlue/customized
    Net Weight9000KG
    NC ControllerTP10S
    Compact StructureYes
    High PrecisionYes

    Photos:

    Aoxuan WC67Y-160T3200 Torsion Bar Press Brake Integrally Welded Structure

    Aoxuan WC67Y-160T3200 Torsion Bar Press Brake Integrally Welded Structure

    Aoxuan WC67Y-160T3200 Torsion Bar Press Brake Integrally Welded StructureAoxuan WC67Y-160T3200 Torsion Bar Press Brake Integrally Welded Structure

    Customization:

    Optional
    1. Color - can be customized according to customer’s requirements
    2. Voltage - The voltage is set according to customer needs. Single-phase power can be used in some areas.
    3. Manual/electric compensation worktable can be installed
    4. Light curtain protection or laser protection can be added to protect workers
    5. Any component can be upgraded
    6. Molds can be customized. We have a mold catalog. Customers can send the workpieces and engineers will recommend them.


    Support and Services:

    Torsion Bar Press Brake provides comprehensive technical support and service to ensure the smooth operation of the product. Our technical support team offers 24/7 online service and telephone support. We also provide on-site maintenance and repair service to help solve any potential problems. In addition, we provide online resources such as manuals, video tutorials, and FAQs to help customers understand and use our products better.

    Packing and Shipping:

    The packaging and shipping of Torsion Bar Press Brake is carefully planned to ensure the product arrives to its destination in perfect condition. All components of the press brake are carefully wrapped with protective materials such as bubble wrap and foam padding. The components are then placed in a heavy-duty wooden crate that is built specifically for the size and weight of the press brake. The crate is sealed securely with nails and screws and then banded with steel strapping. The crate is then loaded onto a truck or other shipping vehicle and shipped to its destination.

    FAQ:

    Q&A about Aoxuan WC67Y-160T3200 Torsion Bar Press Brake
    • Q: What is the Brand Name of this product?
    • A: This product is manufactured by Aoxuan.
    • Q: What is the Model Number?
    • A: The Model Number is WC67Y-160T3200.
    • Q: Where is this product made?
    • A: This product is made in Maanshan.
    • Q: What is the Certification this product has?
    • A: It has CE Certification.
    • Q: What is the Minimum Order Quantity?
    • A: The Minimum Order Quantity is 1 SET.
