Product Description:

1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2. Our engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
3. Our Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
4. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

The standard configuration:

1. Rapid and precise blade clearance adjustment by single handle on the side frame

2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel

3. Cutting Line Illumination and wire for shadow line cutting

4. Counter of Strokes, Cutting Length Adjustment

5. Hydraulic and Electrical overload protection

6. Squaring Arm and Front Support Arms

7. E21S controller system

8. Germany Bosch-Rexroth Hydraulic

Technical Parameters:

Applications:

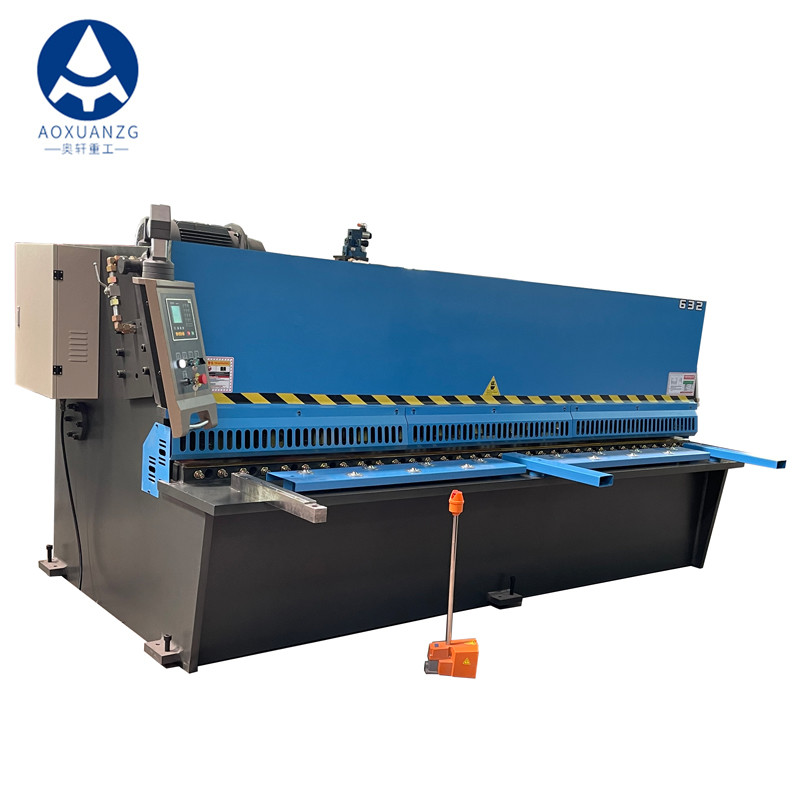

The Aoxuan Hydraulic Swing Shearing Machine (QC11K-6*3200mm) is the perfect choice for those looking for a reliable and powerful shearing machine. This machine is manufactured in Maanshan and comes with CE certification, providing a guarantee of quality. The minimum order quantity is one set, and the price is between $9000-$11000 according to packaging and delivery details. Payment terms require a 50% deposit and delivery time is 35 days. The supply ability of this machine is 300 sets/year, and the motor power is 7.5Kw. The shearing angle is 1°30', and the blade material is Cr12 for maximum durability. The blade gap adjustment is manual, and the controller is an E21s Estun. This machine is perfect for those who need reliable and precise blade clearance.

Customization:

Aoxuan Hydraulic Swing Shearing Machine is an integrally welded structure, made with heavy duty and high precision. It is equipped with rolling material support ball and a fully adjustable back gauge. The Model Number is QC11K-6*3200mm, and it has a Cutting Width of 3200mm. The Back Gauge Range is 20-500mm, and the Shearing Angle is 1°30'. The Stroke Times is 12 Times/min, and the Blade Gap Adjustment is Manual.

The Place of Origin is Maanshan and it is certified with CE. The Minimum Order Quantity is 1 SET, and the Price is between $6500 and $7300. The Packaging Details is LCL, and the Delivery Time is 35 DAYS. The Payment Terms is 50% deposit, and the Supply Ability is 300 sets/year.

Photos:

Support and Services:

We provide comprehensive technical support and services for Hydraulic Swing Shearing Machine, including:

• Remote technical support
• Onsite maintenance and repair services
• Scheduled maintenance plans
• Spare parts and accessories supply
• Training and education
• Consulting and advisory services
• Software updates

Our team of experienced engineers and technicians are available 24/7 to provide you with the best technical support and service for Hydraulic Swing Shearing Machine.

Packing and Shipping:

The Hydraulic Swing Shearing Machine is packaged and shipped in the following manner:

• The Hydraulic Swing Shearing Machine is securely wrapped in a sealed plastic bag and then placed in a custom-made corrugated cardboard box.
• The box is then taped shut and labeled with the product name and the customer’s address.
• The box is then transported via a reliable courier service.

FAQ:
