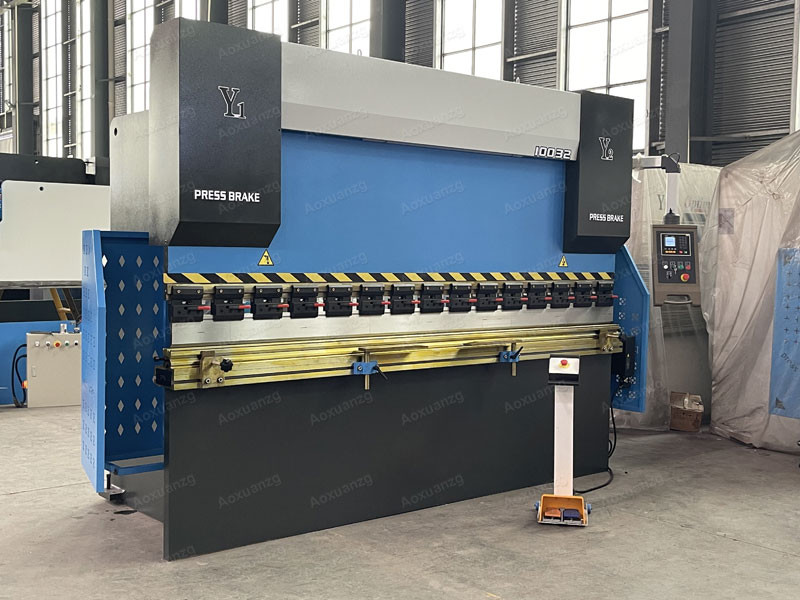

100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    Buy cheap 100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine from wholesalers

    Buy cheap 100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine from wholesalers
    • Buy cheap 100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine from wholesalers
    • Buy cheap 100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine from wholesalers

    100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-100T3200
    Certification : CE,ISO
    Price : $12500
    Delivery Time : 15-30 DAYS
    Payment Terms : 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
    Supply Ability : 500 sets/year
    • Product Details
    • Company Profile

    100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    Product Description:

    Hydraulic Press Brakes are designed for accurate and precise bending of sheet metals. With its customizable protection fence and big power, this machine can deal with various materials such as carbon sheet, stainless sheet, galvanized sheet and alloy. The main motor power is 7.5Kw and the nominal pressure is 1000KN. The angle programming is also available, which ensures the precision of the bending work. The power mode of this machine is hydraulic.

    100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    Main features :

    1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
    2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
    3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
    4. Upper clamp is fitted with compensation device.
    5. Worktable mechanical compensation or hydraulic compensation device is optional.

    100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    Customization:

    Hydraulic Press Brakes

    Brand Name: AOXUANZG
    Model Number: WC67Y-100T3200
    Place of Origin: Maanshan
    Certification: CE,ISO
    Minimum Order Quantity: 1
    Price: $12500
    Packaging Details: Plastic film package first, then placed in container with steel wire fixed.
    Delivery Time: 15-30 DAYS
    Payment Terms: 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
    Supply Ability: 500 sets/year
    Nominal Pressure: 1000KN
    Accuracy: ±0.01
    Throat depth: 330mm
    Main motor power: 7.5Kw
    Weight: 5T

    Features:

    • High precision and Special custom;
    • High Quality and Special custom;
    • High efficiency and Long service life;
    • Easy to operate and maintain;
    • Safe and reliable.

    100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine100T3200MM Hydraulic Press Brake WIth E21 For Carbon/Stainless/Galvanized Sheet Bending Machine

    Technical parameter:

    ModelPressureWorktable lengthDistance between columnsDepth of throatStrokeMax height between worktable and ramMain motorWeight

    Dimension

    (LxWxH)

    Unitsknmmmmmmmmmmkwmmmm
    WC67Y/K-40/25004002500192522080300430002650x1100x1950
    WC67Y/K-50/250050025002015220100340437502650x1250x2100
    WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
    WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
    WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
    WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
    WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
    WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
    WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
    WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
    WC67Y/K-160/320016003200259032020047511105003260x1580x2775
    WC67Y/K-160/400016004000304032020047511125004060x1580x2925
    WC67Y/K-160/600016006000480032020048011195006060x1580x3480
    WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
    WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
    WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
    WC67Y/K-300/320030003200253040025058018.5180003300x2100x2980
    WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
    WC67Y/K-400/400040004000318040032063030300004060x2220x3630
    WC67Y/K-400/6000400060004700400320630304500060602x2203x980
    WC67Y/K-500/60005000600046005003207030550006080x2760x4000
    WC67Y/K-800/600080006000460050040090037720006100x3250x4300

    Packing and Shipping:

    Hydraulic Press Brakes are packaged in heavy-duty, double-wall corrugated boxes and shipped on wooden pallets. The boxes are designed to protect the product during transit and are marked with the company logo and product information. The pallets are labeled with the company name and product description for easy identification and handling. Products are always shipped with the utmost care to ensure that they arrive safely and in perfect condition.

    FAQ:

    Q1: What is the purpose of a hydraulic press brake?

    A1: The purpose of a hydraulic press brake is to bend sheet metal into a desired shape.

    Q2: What is the brand name of this hydraulic press brake?

    A2: The brand name of this hydraulic press brake is AOXUANZG.

    Q3: What is the model number of this hydraulic press brake?

    A3: The model number of this hydraulic press brake is WC67Y-100T3200.

    Q4: What is the minimum order quantity for this hydraulic press brake?

    A4: The minimum order quantity for this hydraulic press brake is 1.

    Q5: What is the delivery time for this hydraulic press brake?

    A5: The delivery time for this hydraulic press brake is 15-30 days.
