Product Description:
It is suitable for cutting carbon steel,stainless steel,galvanized
sheet,aluminum and many other metals.It is widely used in metal
processing industry,machine building industry,building
construction,mining industry,railway construction and aerospace
Industry.
Features:

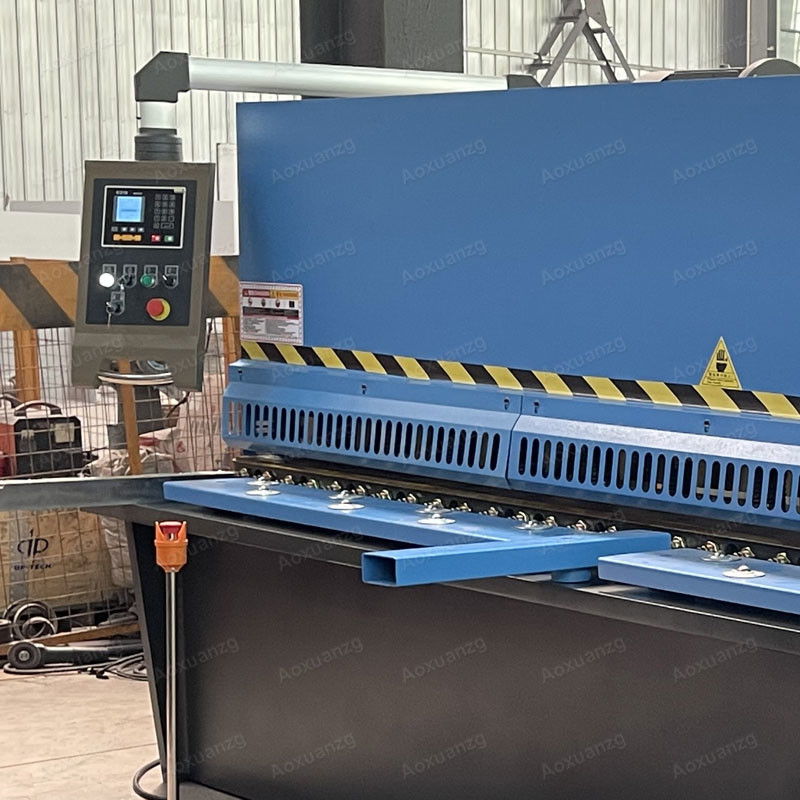

● The steel plate welding structure of the whole machine, hydraulic
transmission, accumulator return, convenient operation, reliable p
erformance, beautiful appearance, standard digital control system;
● The adjustment of the knife edge gap is indicated by a sign, and
the adjustment is easy and fast;
● It is equipped with light alignment device and cutting stroke
control device, which is convenient and quick to adjust;

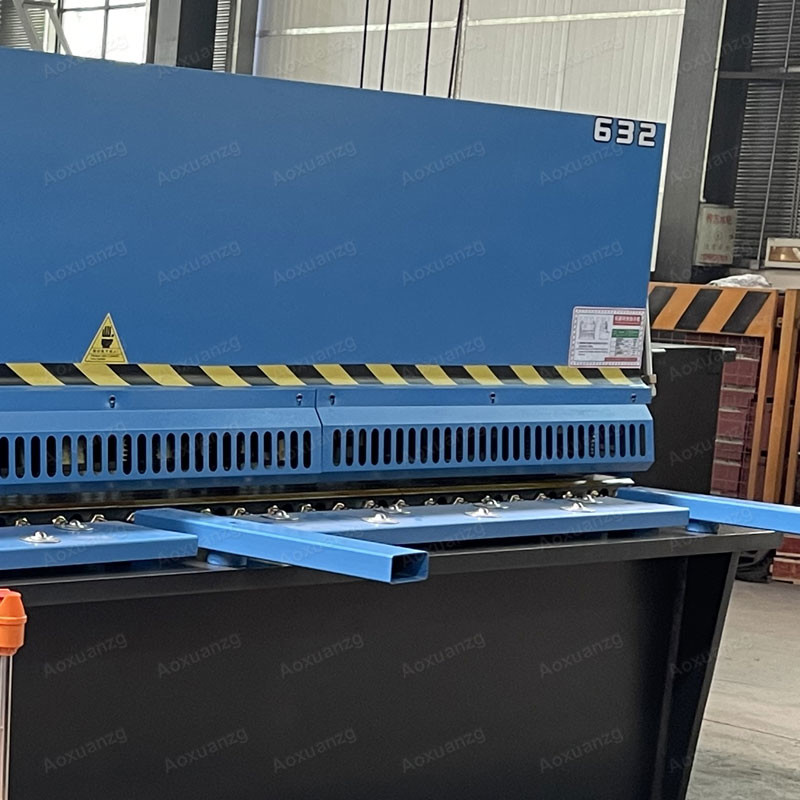

● The working unit is equipped with a rolling support ball to
reduce sheet scratches and frictional resistance;
Customization:
Hydraulic Swing Shearing Machine
Brand Name: Aoxuan
Model Number: QC11K-6*3200mm
Place of Origin: Maanshan
Certification: CE
Packaging Details: LCL
Delivery Time: 35 DAYS
Payment Terms: 50% deposit
Features:
- Stroke Times: 12 Times/min
- Blade Length: 3200mm
- Back Gauge Range: 20-500mm
- Cutting Thickness: 6mm
- Rolling material support ball, blade clearance, rolling material
support ball, protection cover
Technical parameter:
| Model | Thickness (mm) | Cutting Length (mm) | Cutting Angle (°) | Material Strength (KN/CM) | Stroke (times/min) | Power (kw) | Dimension(mm) |
|
|
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Packing and Shipping:
The Hydraulic Swing Shearing Machine is packaged in a corrugated
cardboard box that is designed to protect the machine from any
potential damage during shipping. The box will be clearly labeled
with the shipping address and “Fragile” sticker to alert the
carrier of the delicate nature of the contents within.
The Hydraulic Swing Shearing Machine will be shipped via a
reputable carrier that will ensure it reaches its destination in a
timely manner. The carrier will provide tracking information so
that the customer can monitor the progress of their package.
```FAQ:
Q1: What is the product name?
A1: The product name is Aoxuan Hydraulic Swing Shearing Machine.
Q2: What is the model number?
A2: The model number is QC11K-6*3200mm.
Q3: Where is the place of origin?
A3: The place of origin is Maanshan, China.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 1 SET.
Q5: What is the price range?
A5: The price range is $6500-$7300.
