Improved Bending Precision NC Controller E22 Torsion Bar Press
Brake For Stainless Steel
Product Description:

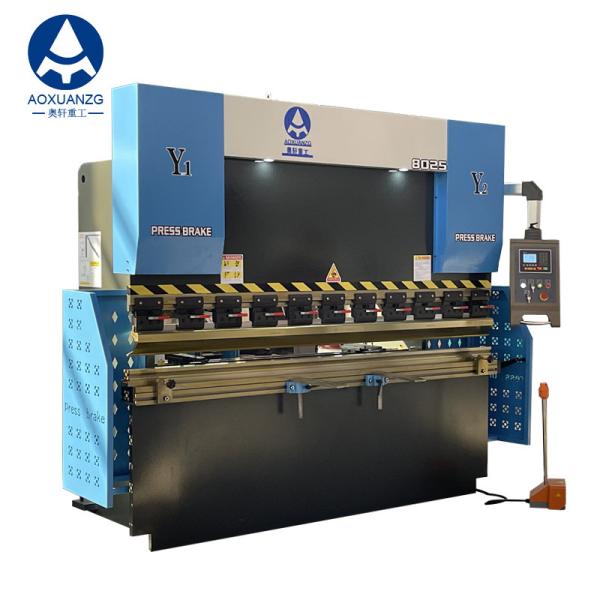

The WC67Y-80T2500 Torsion Bar Press Brake is an advanced and
high-performance machine that offers excellent positioning accuracy
and power efficiency. It features a compact structure, making it
easy to integrate into production lines. The main motor power is
7.5KW, and the positioning accuracy is ±0.03mm/m. The control
system is E22, and the color is blue. This press brake also
features an AC motor, which provides superior power and
performance. The unique torsion bar structure enables a more
efficient bending process and is designed to reduce noise and
vibration. The WC67Y-80T2500 Torsion Bar Press Brake is an ideal
solution for those looking for a reliable and high-performing
machine for their production lines.
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Applications:
Aoxuanzg's WC67Y-80T2500 Torsion Bar Press Brake is a mechanical torsion bar press brake that features a NC
controller and offers high efficiency and wide application. It is
certified with CE and comes with a minimum order quantity of 1 SET.
The price for this press brake is between $11500-$12000, and it is
packaged with wrap film around the machine, and put in an export
wooden case. The delivery time is 35 days after 50% deposit. The
supply ability is 300 sets per year, and the back gauge range is
from 0-600mm. The control system is E22, the net weight is 5700KG,
the stroke is 100mm, and the voltage is 380V/50HZ. This press brake
is a great option for those looking for a hydraulic press brake
with high efficiency and wide application.
Customization:
Torsion Bar Press Brake
Brand Name: Aoxuanzg
Model Number: WC67Y-80T2500
Place of Origin: Maanshan
Certification: CE
Minimum Order Quantity: 1 SET
Price: $11500-$12000
Packaging Details: Wrap film around the machine, put in the Export wooden case.
Delivery Time: 35 DAYS
Payment Terms: 50% deposit
Supply Ability: 300 sets/year
Net Weight: 5700KG
Model: WC67Y-80T2500
Voltage: 380V/50HZ
Stroke: 100mm
Overall Dimensions: 3400×1900×2450mm
This Torsion Bar Press Brake is a high-end product with superior
performance. It is equipped with ball screw and linear guide,
integrally weld structure, mechanical torsion bar, which makes the
working accuracy more stable and reliable. It is suitable for
precision bending of sheet metal parts of various materials, and is
widely used in the field of sheet metal processing.
Support and Services:
Pre-sales.
* Project design, performance introduction, technical agreement,
contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product
assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human
parts.
* Training how to install the machine, training how to use the
machine with video and so on
* And our technical staff can go abroad to provide technical
guidance.
Packing and Shipping:
Torsion bar press brake products will be packaged in a wooden
pallet and wrapped in a plastic sheet. The package will be secured
with straps and shrink-wrap to ensure safe delivery. The product
will be shipped to customer within 3-5 business days after payment
is received.
FAQ:
Torsion Bar Press Brake FAQs
Q: What is the Brand Name, Model Number, Place of Origin,
Certification, Minimum Order Quantity, Price, Packaging Details,
Delivery Time, Payment Terms, and Supply Ability of the Torsion Bar
Press Brake?
A: The Brand Name is Aoxuanzg, the Model Number is WC67Y-80T2500, the
Place of Origin is Maanshan, it is CE Certified, the Minimum Order
Quantity is 1 SET, the Price is $11500-$12000, the Packaging
Details is Wrap film around the machine, put in the Export wooden
case., the Delivery Time is 35 DAYS, the Payment Terms is 50%
deposit and the Supply Ability is 300 sets/year.
Q: What are the advantages of the Torsion Bar Press Brake?
A: The Torsion Bar Press Brake has many advantages, including high
accuracy, low noise, high strength, and low failure rate.
Q: What kind of material can the Torsion Bar Press Brake process?
A: The Torsion Bar Press Brake can process various materials
including stainless steel, aluminum, and carbon steel.
Q: What is the working principle of the Torsion Bar Press Brake?
A: The Torsion Bar Press Brake works by applying a mechanical force
to the material, which is then bent by a torsion bar.
Q: What is the maximum bending capacity of the Torsion Bar Press
Brake?
A: The maximum bending capacity of the Torsion Bar Press Brake is
80T2500.
