WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending

    Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers

    Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers
    • Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers
    • Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers
    • Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers
    • Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers
    • Buy cheap WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending from wholesalers

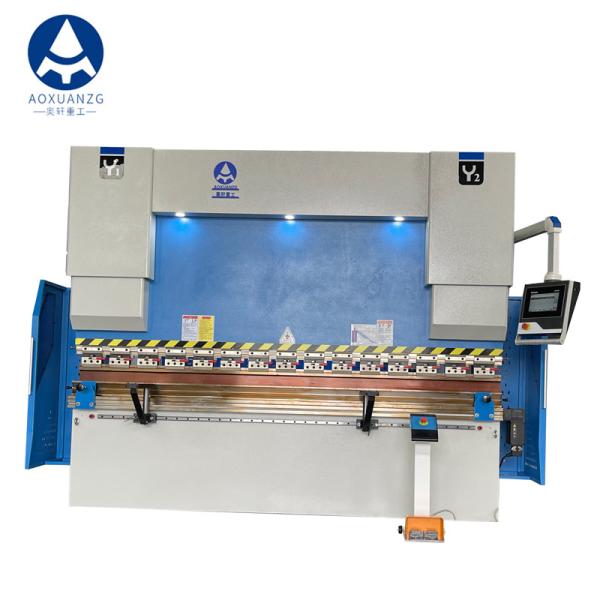

    WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-250T3200
    Certification : CE,ISO
    Price : $25000+
    Delivery Time : 30 DAYS
    Payment Terms : 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
    Supply Ability : 500 sets/year
    • Product Details
    • Company Profile

    WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending

    Features:

    Multi-axis bending machines are all electro-hydraulic servo models, with 4+1 axes including X, Y1, Y2, R+ V. The R-axis is used to control the up and down movement of the rear gauge, which will increase product processing accuracy.

    Features:​

    Product Name:Hydraulic CNC Press Brake
    Motor Power:20kw
    Max. Bending Force:2500kn
    Back Gauge Accuracy:±0.01mm
    Max. Bending Length:3200mm
    Max. Bending Thickness:9.5mm Carbon Steel, 4.8mm Stainless Steel

    Technical Parameters:

    Technical ParametersData
    Max. Bending Length3200mm
    PressureHydraulic
    TypeCNC Press Brake
    Maximum open height560mm
    Throat depth400mm
    Max. Bending Angle30-180
    Overall Dimension3750x2200x3100mm
    Distance between housings2540mm

    Applications:

    AOXUANZG WE67K-250T3200MM Hydraulic CNC Press Brake is a press brakes designed for high-precision and efficient bending of metal sheets and plates.This press brake also has a CE and ISO certification, and overall dimensions of 3750x2200x3100mm. With its advanced CNC control system, it can be used for accurate and precise bending of metal workpieces with a high degree of automation. It is the perfect solution for metal fabrication shops for producing high-quality metal parts.

    Configurations:

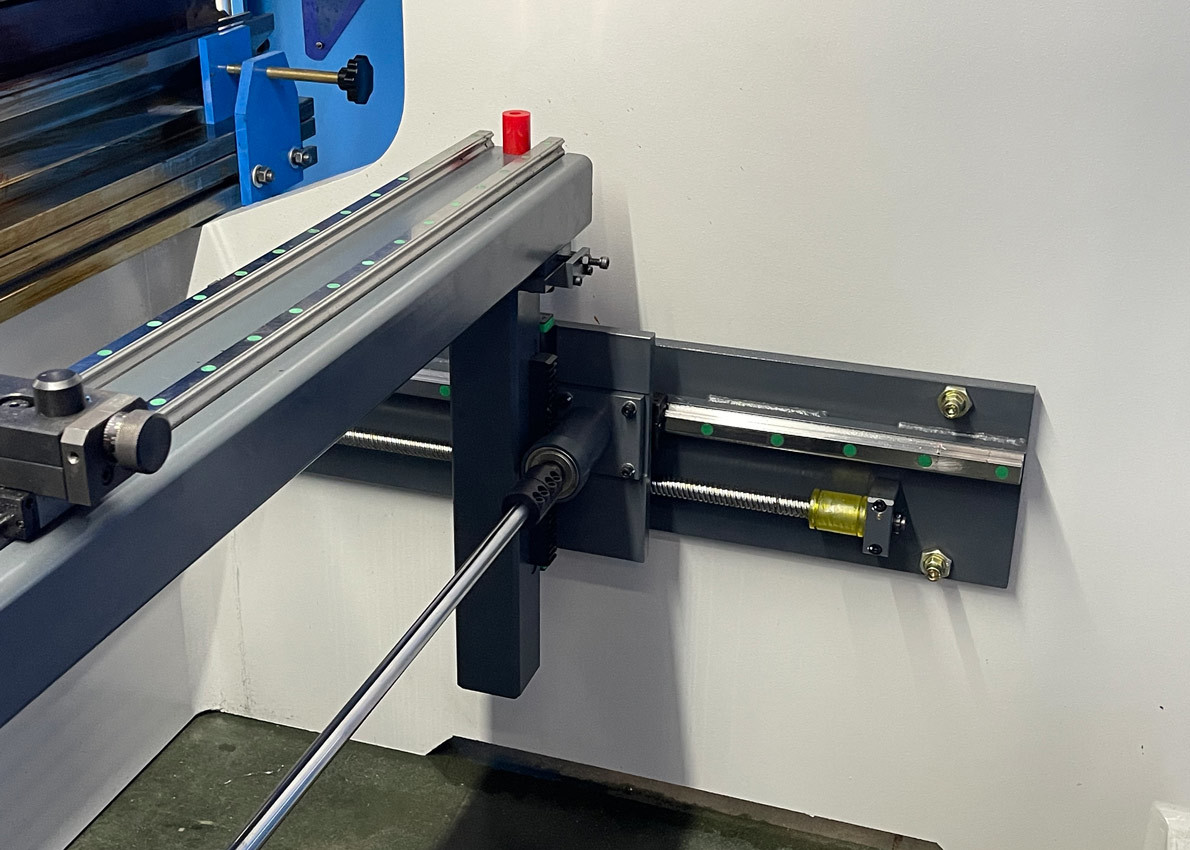

    High precision backguage
    Germany Bosch Rexroth safety valve
    Germany EMB Hose connector
    Schneider Electric Syste
    RV reducer motor working table compensation (Optional)
    Compensation device on workbench (Optional)
    Quick mold clamping device

    Details:

    WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending

    WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole BendingWE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending

    Support and Services:

    Hydraulic CNC Press Brake technical support and service includes:

    • Installation Support
    • Operation Training
    • Maintenance Training
    • Troubleshooting Support
    • Remote Diagnostics
    • Spare Parts Support
    • Software Upgrades
    • Technical Documentation

    Packing and Shipping:

    Packaging and Shipping for Hydraulic CNC Press Brake:

    • The machine will be packaged in a wooden box or a steel frame.
    • The machine will be shipped by sea, air, or land.
    • The machine will be shipped in accordance with the international shipping standards.
    • The delivery time depends on the specific route and the availability of the transportation means.
    WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending

    FAQ:

    Q: What is the brand name of this Hydraulic CNC Press Brake?
    A: The brand name of this Hydraulic CNC Press Brake is AOXUANZG.
    Q: What is the model number of this Hydraulic CNC Press Brake?
    A: The model number of this Hydraulic CNC Press Brake is WE67K-250T3200MM.
    Q: Where is this Hydraulic CNC Press Brake made?
    A: This Hydraulic CNC Press Brake is made in China.
    Q: What certifications does this Hydraulic CNC Press Brake have?
    A: This Hydraulic CNC Press Brake is certified with CE and ISO.
    Q: What is the minimum order quantity for this Hydraulic CNC Press Brake?
    A: The minimum order quantity for this Hydraulic CNC Press Brake is 1.
    AOXUANZG's Hydraulic CNC Press Brake is the perfect choice for you. Contact us today to learn more!
