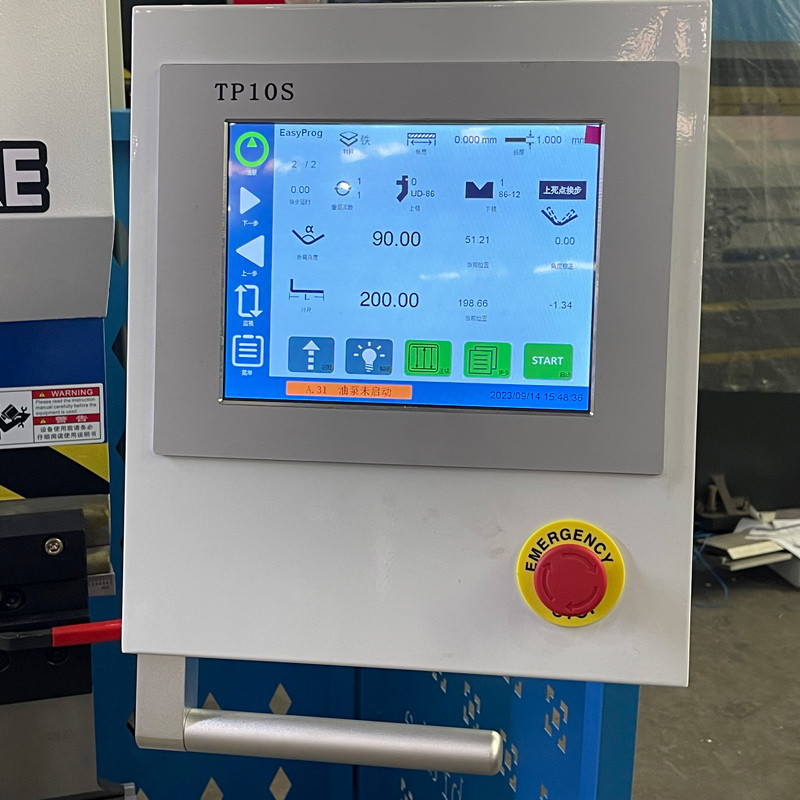

    Tp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection Fence

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-40T2500
    Certification : CE,ISO
    Price : $8100
    Delivery Time : 15-30 DAYS
    Payment Terms : 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
    Supply Ability : 500 sets/year
    • Product Details
    • Company Profile

    Tp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection Fence

    Special Custom Tp10s Controller 40T2500MM Press Brake Hydraulic Bending Machine With Optional Protection Fence

    Product Description:

    Hydraulic Press Brakes are CNC-operated machines that use hydraulic power mode to provide users with high-precision and reliable performance. With a voltage of 380V/3 Phase/customizable, these machines offer a high degree of accuracy, with an accuracy of ±0.01. The open height is 300mm, making them ideal for a wide range of heavy-duty applications. Additionally, some models feature 3-axis operation and single phase, while other models are available in wholesale quantity. Hydraulic Press Brakes provide superior production efficiency and reliability, making them the perfect choice for industrial operations.

    Tp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection Fence

    Technical parameter:

    ModelPressureWorktable lengthDistance between columnsDepth of throatStrokeMax height between worktable and ramMain motorWeight

    Dimension

    (LxWxH)

    Unitsknmmmmmmmmmmkwmmmm
    WC67Y/K-40/25004002500192522080300430002650x1100x1950
    WC67Y/K-50/250050025002015220100340437502650x1250x2100
    WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
    WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
    WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
    WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
    WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
    WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
    WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
    WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
    WC67Y/K-160/320016003200259032020047511105003260x1580x2775
    WC67Y/K-160/400016004000304032020047511125004060x1580x2925
    WC67Y/K-160/600016006000480032020048011195006060x1580x3480
    WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
    WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
    WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
    WC67Y/K-300/320030003200253040025058018.5180003300x2100x2980
    WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
    WC67Y/K-400/400040004000318040032063030300004060x2220x3630
    WC67Y/K-400/6000400060004700400320630304500060602x2203x980
    WC67Y/K-500/60005000600046005003207030550006080x2760x4000
    WC67Y/K-800/600080006000460050040090037720006100x3250x4300

    Tp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection Fence

    Customization:

    Hydraulic Press Brakes

    Brand Name: AOXUANZG
    Model Number: WC67Y-40T2500
    Place of Origin: Maanshan
    Certification: CE,ISO
    Minimum Order Quantity: 1
    Price: $8100
    Packaging Details: Plastic film package first, then placed in container with steel wire fixed.
    Delivery Time: 15-30 DAYS
    Payment Terms: 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
    Supply Ability: 500 sets/year
    Main motor power: 5.5Kw
    Material: Carbon/ Stainless/ Galvanized Sheet, Alloy
    Accuracy: ±0.01
    Protection fence: Optional
    Operation: CNC
    Wholesale: Yes
    Phase: Single Phase
    Axis: 2 Axis
    Speed: High Speed

    Tp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection FenceTp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection FenceTp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection FenceTp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection FenceTp10s Controller 40T 2500MM Press Brake Hydraulic Bending Machine With Optional Protection Fence

    Support and Services:

    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.

    Packing and Shipping:

    Packing:
    1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
    2. After tested, the machines will be wrapped with plastic sheet ,
    3,a,Small size : carefully packed in wooden cases ;
    b,Big size: machine will be securely wired into the container by steel wire.

    Packing Detail:
    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
    Delivery Detail :
    ☀ Shipped in 30 days after payment.

    FAQ:
