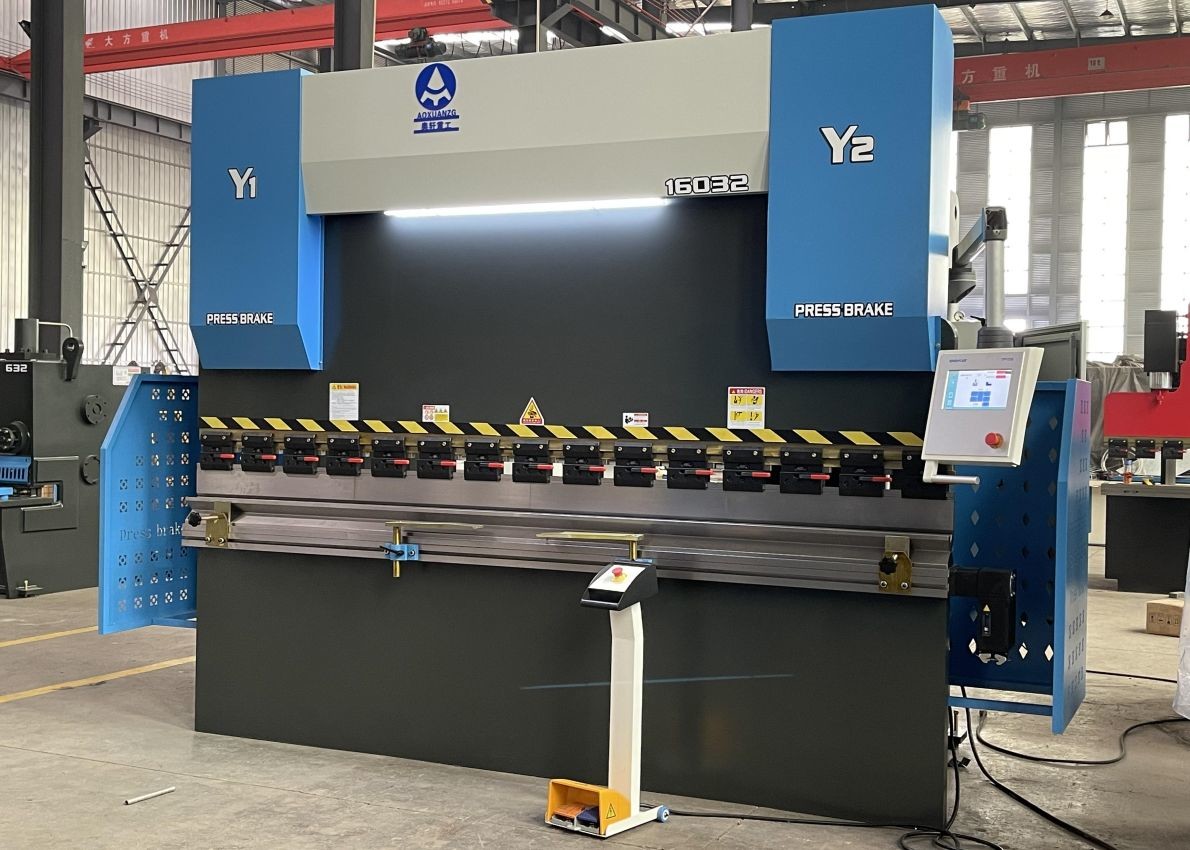

Wc67y Achieve Consistent Bending Results 160T CNC Hydraulic Press
Brake 2 Axis 3200MM
Product Description:
Hydraulic CNC press brake is a press bending machine designed to
create bends and form sheet metal with precision and accuracy. It
is one of the most essential tools for fabricators and
manufacturers. This press brake is equipped with hydraulic
pressure, which allows it to bend thicker materials with ease. With
a maximum bending thickness of 6mm for carbon steel and 3mm for
stainless steel, it guarantees excellent results in all kinds of
metalworking projects. In addition, it has a distance between
housings of 2500mm and a throat depth of 400mm to support
large-scale projects. Moreover, this press brake can be customized
in terms of color and other features to meet specific requirements.
Keywords: Press brakes, Press bending machine, Hydraulic press
brake, Bending thickness, Carbon steel, Stainless steel, Pressure,
Distance between housings, Throat depth, Customized
Applications:
The Hydraulic CNC Press Brake manufactured by AOXUANZG is an advanced machine that can provide precision metalworking
services. This machine is designed with a model number of WC67K-160T3200MM and is certified by CE and ISO. The minimum order quantity for this machine is 1 and the price is $16700. The packaging details for this machine include plastic film package and is delivered in 30 days. The payment terms for this machine are 50% deposit after order confirmed, 50% (payment after machine
finished testing before shipping by(T/T). The supply ability for this machine is 500 sets/year and the color is customized. The type of this machine is CNC Press Brake and the maximum bending force is 1600kn. The throat depth of this machine is 400mm and the pressure is hydraulic.
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Details:
Hydraulic CNC Press Brake Technical Support and Service
Packing and Shipping:
Packaging and Shipping of Hydraulic CNC Press Brake
The Hydraulic CNC Press Brake is securely packaged for shipping.
The press brake is strapped to a pallet and secured with stretch
wrap. The pallet is then secured to a truck to ensure that the
press brake arrives safely.
The truck will be driven to the customer’s destination and will be
unloaded upon delivery. The customer will be responsible for
unloading the press brake from the truck. Special lifting equipment
may be required for unloading. The customer should contact their
local freight company for more information.
FAQ:
Hydraulic CNC Press Brake FAQs
- Q: What is the Brand Name of this product?
A: The brand name of this product is AOXUANZG. - Q: What is the Model Number?
A: The Model Number is WC67K-160T3200MM. - Q: Where is it produced?
A: This product is produced in China. - Q: What certifications does it have?
A: This product has CE and ISO certification. - Q: What is the minimum order quantity?
A: The minimum order quantity is 1. - Q: How much does it cost?
A: This product costs $16700. - Q: How is it packaged?
A: It is packaged in plastic film first, and then placed in a
container with steel wire fixed. - Q: How long does it take to deliver?
A: It normally takes 30 days to deliver. - Q: What payment terms are available?
A: Payment terms available are 50% deposit after order confirmed, and
50% payment after machine finished testing before shipping by T/T. - Q: How many can be supplied per year?
A: This product can be supplied up to 500 sets per year.
