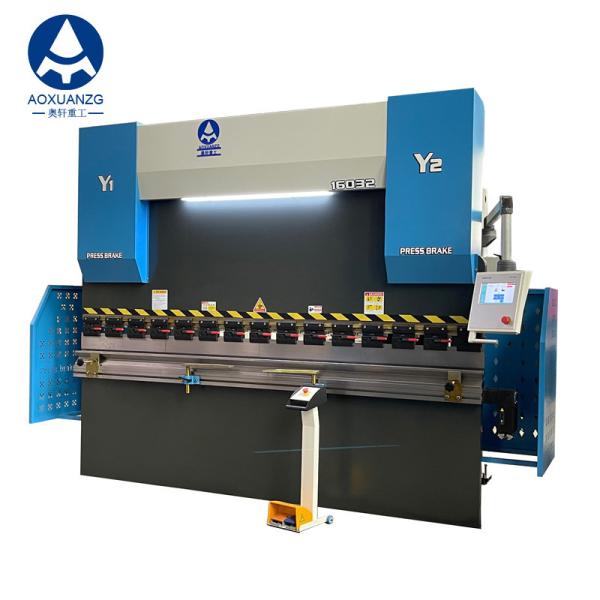

160T3200MM Bending Thickness 6mm Carbon Steel Hydraulic Press Brake
With 11kw Motor Power
Product Description:
Hydraulic CNC Press Brake is a type of press brake machine that
uses hydraulic cylinders to generate a force to bend different
kinds of metal sheets. It is mainly used in sheet metal fabrication
and other related tasks. This press brake features a maximum
bending angle of 30-180 degrees, a distance between housings of
2500mm, a motor power of 11kw, and a back gauge accuracy of
±0.01mm. It is capable of providing high precision and accuracy for
your sheet metal fabrication needs. Hydraulic CNC Press Brake
offers a reliable and efficient solution for your press brake
needs. It is an ideal solution for industries that require
precision and accuracy in their sheet metal fabrication processes.
With its superior quality and reliability, Hydraulic CNC Press
Brake is the perfect choice for any press brake needs.
Applications:
Hydraulic CNC Press Brake – AOXUANZG WC67K-160T3200MM
AOXUANZG WC67K-160T3200MM Hydraulic CNC Press Brake is an advanced
press bending machine. It is designed to meet the needs of a wide
range of industrial applications. This press brake provides
excellent performance and accuracy, with a maximum bending force of
1600kn and maximum open height of 630mm. It is certified by CE and
ISO, and is available with a minimum order quantity of 1. It has a
maximum bending thickness of 6mm Carbon Steel and 3mm Stainless
Steel, and a throat depth of 400mm. The distance between housings
is 2500mm. It comes with a competitive price of $16700 and a
delivery time of 30 days. Payment terms are 50% deposit after order
confirmed, and 50% payment after machine finished testing before
shipping by T/T. AOXUANZG WC67K-160T3200MM is supplied with a
supply ability of 500 sets/year and packed in plastic film and
steel wire for secure delivery.
Technical parameter:
Hydraulic CNC Press Brake
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Support and Services:
Hydraulic CNC Press Brake technical support and services include:
- Assistance with machine setup, installation, and programming
- Troubleshooting and diagnosis of operational issues
- Preventative maintenance and repair
- Ongoing training and education
- Advice on machine optimization and cost savings
Packing and Shipping:
Packing:
1. Before packaged, the machines will be tested strictly to
guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by
steel wire.
Packing Detail:
☂ Each Press Brake with plastic film package first, then placed in
a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to
the harbor terminal.At the dock we pack the goods in containers and
ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.
If you are interested, please contact me ^-^
