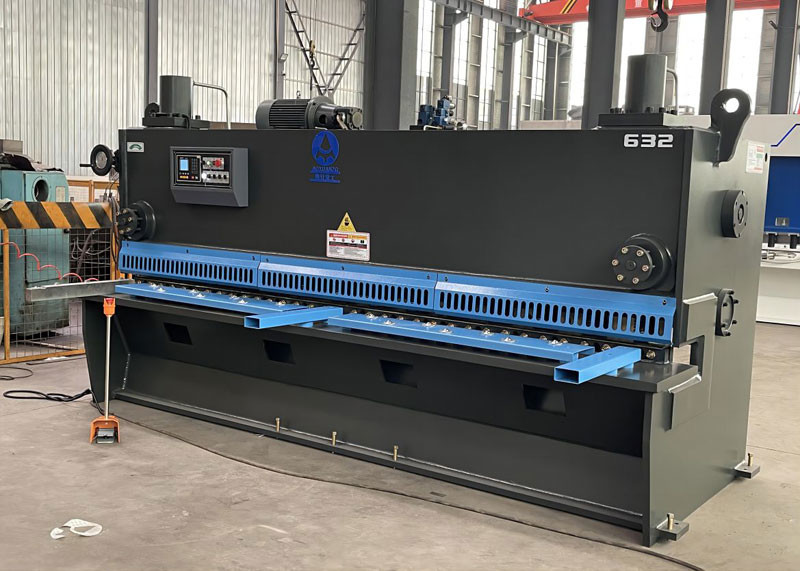

Product Description:
The Full Automatic Hydraulic Guillotine Shearing Machine is the perfect choice for your cutting needs. It is equipped with
an Estun E21S Controller with multiple functions, ensuring high
accuracy and reliability. The shearing machine has a 7.5KW Motor
Power and 800mm Table Height, providing a stable cutting and
shearing performance. The blade clearance of the machine can be
adjusted manually or electrically, while the blade gap can be
adjusted automatically. Its shearing angle can be set between 1-2°
for precise and accurate cuts.
Applications:
AOXUANZG's Hydraulic Guillotine Shearing Machine is the perfect
choice for industries such as metal fabrication, sheet metal
production, and many others. This machine has been CE certified and
is available with a minimum order quantity of one. It is made of
high-quality components such as a pneumatic support rack, Estun
E21S controller, and a hydraulic system. The backgauge range is
20-1000mm and the stroke times reach up to 8 times/min. Other
features include manual and electric blade clearance adjustment,
overall dimension of 3860*1700*1700mm, and a price range of
$10000-10300. The machine is packed with wrap film and put in an
export wooden case, and it will be delivered within 15-30 days.
Payment terms of 50% deposit after order is confirmed and 50%
payment after the machine has finished testing are also available.
AOXUANZG has a supply capacity of 500 sets/year of this Hydraulic
Guillotine Shearing Machine.
Customization:
Hydraulic Guillotine Shearing Machine
Brand Name: AOXUANZG
Model Number: QC12K-6*3200
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: $10000-10300
Packaging Details: Wrap film around the machine, put in the export
wooden case.
Delivery Time: 15-30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment
after machine finished testing before shipping by(T/T).
Supply Ability: 500 sets/year
Hydraulic Guillotine Shears, Hydraulic Guillotine, 6*3200mm, AOXUANZG, CE, 500 sets/year, Automatic, 6000kg, Manual/Electric, 20-1000mm, CNC
Technical parameter:
| Model | Thickness
(mm) | Cutting Length
(mm) | Cutting Angle
(°) | Material Strength
(KN/CM) | Stroke
(times/min) | Power
(kw) | Dimension(mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Support and Services:
Technical support and service for Hydraulic Guillotine Shearing
Machine include:
- Troubleshooting and maintenance services
- Regular technical training
- Free spare parts replacements
- 24/7 technical support
- On-site installation and commissioning
- Remote online technical support
Packing and Shipping:
Packaging and Shipping for Hydraulic Guillotine Shearing Machine:
The Hydraulic Guillotine Shearing Machine will be safely and
securely packaged to ensure that it is in perfect condition upon
arrival. It will be shipped in separate boxes for maximum
protection. Each box will be labeled with the contents and
destination. The boxes will be placed on a pallet that is secured
with straps and shrink wrap.
The Hydraulic Guillotine Shearing Machine will be shipped via
freight carrier. The freight carrier will be selected based on cost
and transit time. Tracking information will be provided to ensure
that the shipment is being delivered on time.
FAQ:
- Q: What is the Brand Name of the Hydraulic Guillotine Shearing
Machine?
- A: The Brand Name of the Hydraulic Guillotine Shearing Machine is
AOXUANZG.
- Q: What is the Model Number of the Hydraulic Guillotine Shearing
Machine?
- A: The Model Number of the Hydraulic Guillotine Shearing Machine is
QC12K-6*3200.
- Q: Where is the Hydraulic Guillotine Shearing Machine manufactured?
- A: The Hydraulic Guillotine Shearing Machine is manufactured in
China.
- Q: What certifications does the Hydraulic Guillotine Shearing
Machine have?
- A: The Hydraulic Guillotine Shearing Machine has CE certification.
- Q: What is the minimum order quantity for the Hydraulic Guillotine
Shearing Machine?
- A: The minimum order quantity for the Hydraulic Guillotine Shearing
Machine is 1.
