High Accuracy Hydraulic Press Brake Plate Press Bending Folding
Machine With 58T Made In China
Product Description:

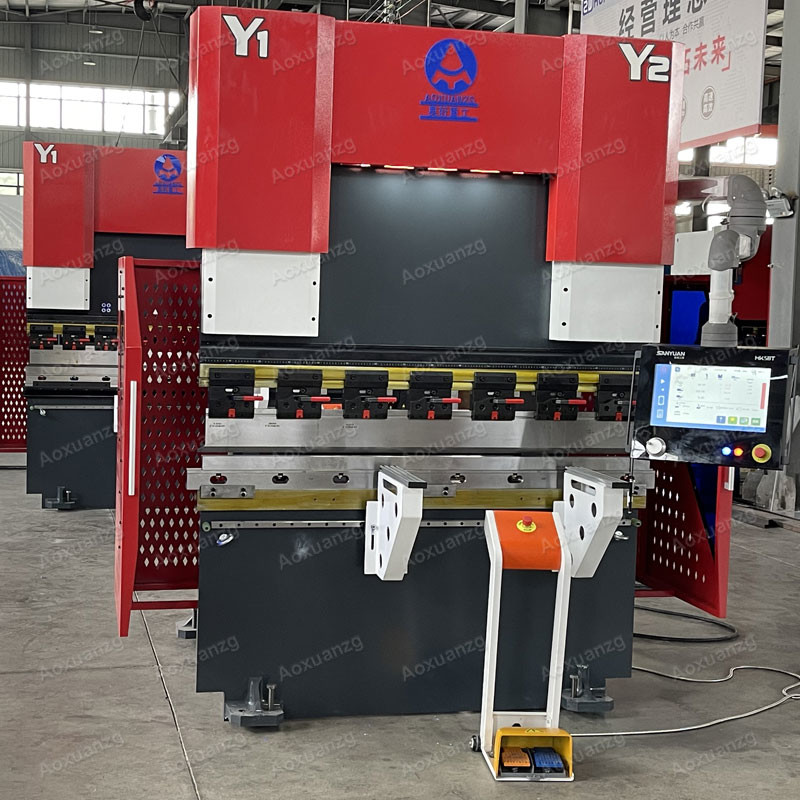

Hydraulic CNC Press Brake
Hydraulic CNC press brakes are essential machines for metalworking.
Ideal for bending, they provide great flexibility and accuracy in
the metal bending process. Our hydraulic CNC press brakes are
specifically designed to provide reliable bending performance for a
wide range of applications.
Our hydraulic CNC press brake is capable of bending up to 1600mm
length with hydraulic pressure. It is equipped with a CNC control
system for precise angle bending from 30 to 180 degrees with back
gauge accuracy of ±0.01mm. This press brake is perfect for fast and
accurate production of press brake parts.
Our hydraulic CNC press brakes deliver the highest quality of metal
bending with a robust design and accurate results. With its
powerful hydraulic system, it can handle heavy-duty jobs. Its CNC
control system allows easy setup and operation, ensuring precise
results.
Whether you need to bend metal with accuracy and precision or
require a heavy-duty press brake for larger metalworking projects,
our hydraulic CNC press brake is the perfect solution. It is
designed to provide reliable performance and accurate results,
ensuring the highest level of quality and efficiency.
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Customization:
Customized Hydraulic CNC Press Brake
Brand Name: AOXUANZG
Model Number: WC67K-30T1600MM
Place of Origin: China
Certification: CE,ISO
Minimum Order Quantity: 1
Price: $10200
Packaging Details: Plastic film package first, then placed in
container with steel wire fixed.
Delivery Time: 30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment
after machine finished testing before shipping by(T/T).
Supply Ability: 500 sets/year
Pressure: Hydraulic
Overall Dimension: 1900*1750*1900mm
Max. Bending Angle: 30-180
Maximum open height: 190mm
Type: CNC Press Brake
This customized Hydraulic CNC Press Brake is a powerful press
bending machine that is used to bend metal sheets and plates. It is
perfect for forming parts using the Hydraulic pressure, with
Maximum Bending Angle of 30-180 degrees and Maximum open height of
190mm. This CNC Press Brake is highly efficient, with Overall
Dimension of 1900*1750*1900mm, and is certified with CE and ISO.
At AOXUANZG, we offer this Hydraulic Press Brake at a competitive
price of $10200, with a minimum order quantity of 1. We also
guarantee fast delivery within 30 days, and accept Payment Terms of
50% deposit after order confirmed , 50% (payment after machine
finished testing before shipping by(T/T). Our reliable Supply
Ability is 500 sets per year, with Packaging Details of Plastic
film package first, then placed in container with steel wire fixed.
Support and Services:
Hydraulic CNC Press Brake Technical Support and Service
At , we offer technical support and service for our Hydraulic CNC
Press Brake products. Our experienced professionals are available
to provide technical advice and assistance on the installation,
operation, maintenance, and repair of your Hydraulic CNC Press
Brake.
We provide the highest quality technical support services,
including:
- Installation assistance
- Operator training
- Troubleshooting
- Repair services
- Preventive maintenance
- Technical advice
We also offer extended warranties on our products to ensure you are
fully protected against any potential malfunctions or defects. If
you have any questions, please contact us and we will be happy to
help.
Packing and Shipping:
Packaging and Shipping of Hydraulic CNC Press Brake:
The product is securely packaged in a wooden crate or box for
protection during shipping and handling. The packaging includes all
foam inserts to ensure that the product stays in place and is not
damaged during transit. The product is then shipped via air
freight, ground freight, or sea freight depending on destination
and customer requirements. All shipments are tracked and monitored
for timely delivery.
