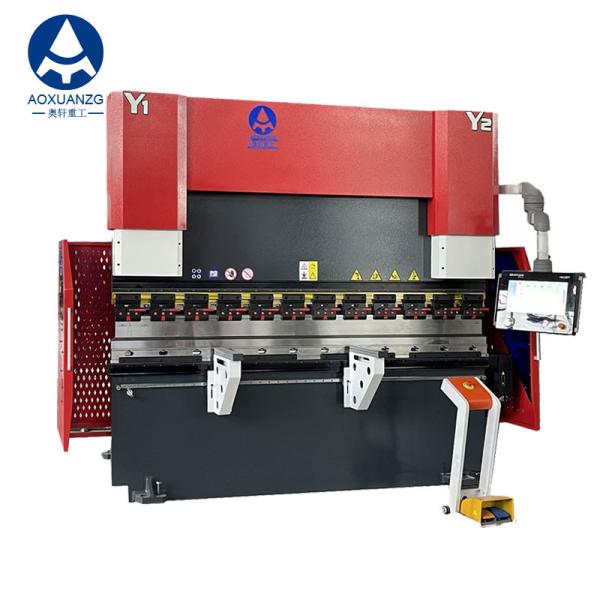

2500mm Wdith Hydraulic CNC Press Brake Sheet Plate Carbon Steel
Bending Machine With HK58T Controller
Product Description:
Hydraulic CNC Press Brake is a press bending machine with high
accuracy and efficiency. It is a kind of hydraulic press brake with
a controller of HK58T, featuring a max. Bending Thickness of 3mm
Carbon Steel and 1.5mm Stainless Steel, and a back gauge accuracy
of ±0.01mm. Moreover, it has a throat depth of 300mm. This press
brake is an ideal choice for various press-bending jobs, offering
reliable performance and stability.
This press brake is designed with high precision and fast speed. It
is suitable for accurately bending any complex parts with high
efficiency. The hydraulic system works reliably and stably,
providing a reliable bending force. This CNC press brake is
equipped with a controller of HK58T, which is user-friendly and
easy to operate. It also has a throat depth of 300mm, which offers
a wide bending range.
Hydraulic CNC Press Brake is a high-precision and reliable press
bending machine, offering many advantages for press-bending jobs.
Its hydraulic system provides a reliable bending force, and the
controller of HK58T is user-friendly and easy to operate. This
press brake also has a max. Bending thickness of 3mm Carbon Steel
and 1.5mm Stainless Steel, and a back gauge accuracy of ±0.01mm. It
is a perfect choice for any press-bending jobs.
Features:
- Product Name: Hydraulic CNC Press Brake
- Back Gauge Accuracy: ±0.01mm
- Distance between housings: 2050mm
- Color: Customized
- Type: CNC Press Brake
- Max. Bending Thickness: 3mm Carbon Steel, 1.5mm Stainless Steel
Technical Parameters:
| Name | Value |
|---|
| Distance between housings | 2050mm |
| Max. Bending Angle | 30-180 |
| Max. Bending Thickness | 3mm Carbon Steel, 1.5mm Stainless Steel |
| Type | CNC Press Brake |
| Max. Bending Force | 630kn |
| Back Gauge Accuracy | ±0.01mm |
| Overall Dimension | 2605*1725*2355mm |
| Color | Customized |
| Motor Power | 5.5kw |
| Max. Bending Length | 2500mm |
Applications:
Hydraulic CNC Press Brake, manufactured by AOXUANZG is a
high-precision machine, with a model number of WC67K-63T2500MM. It
is certified by CE and ISO and is available for purchase with a
minimum order quantity of 1. This press brake has a price of $14000
and is packaged in plastic film and then placed in a container with
steel wire fixed for additional security. The delivery time is 30
days and payment is accepted via T/T. AOXUANZG is capable of
supplying up to 500 press brakes per year. The maximum bending
angle of this press brake is 30-180, with a throat depth of 300mm
and a maximum open height of 380mm. Furthermore, the maximum
bending length of this press brake is 2500mm and it is available in
a range of customized colors. This Hydraulic CNC Press Brake is
ideal for the production of high-precision components, such as
automotive parts, aircraft components, and home appliances. It is
perfect for all press brake machining applications, making it a
must-have for any press brake machine.
Packing and Shipping:
Packaging and Shipping:
The Hydraulic CNC Press Brake is safely and securely packaged to
ensure protection during transportation. It is then shipped in a
protective container by a reliable carrier. Delivery time will vary
depending on the destination.
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
FAQ:
Q: What is the Brand Name of the Hydraulic CNC Press Brake?
A: The Brand Name of the Hydraulic CNC Press Brake is AOXUANZG.
Q: What is the Model Number of the Hydraulic CNC Press Brake?
A: The Model Number of the Hydraulic CNC Press Brake is
WC67K-63T2500MM.
Q: Where is the Hydraulic CNC Press Brake made?
A: The Hydraulic CNC Press Brake is made in China.
Q: Does the Hydraulic CNC Press Brake have certifications?
A: Yes, the Hydraulic CNC Press Brake has CE and ISO
certifications.
Q: What is the minimum order quantity for the Hydraulic CNC Press
Brake?
A: The minimum order quantity for the Hydraulic CNC Press Brake is
1.
