40T Adjustable Stroke Tiltable Workbench Mechanical Punch Pressure Machine

Main Features:

1. Steel welded body, tempered, with high stiffness, precision and stability.
2. The crankshaft of the machine is ground after high-frequency quenching.
3. Pneumatic double balancing cylinder balances the weight of the slider and punch to reduce noise and impact.
4. The combined pneumatic clutch and brake are made of friction material, which means long service life.
5. The PLC electronic control system is safe and reliable.
6. The machine is equipped with two-hand buttons and foot switches to achieve continuous, single and inching exercises.

Transmission control and brake systems:

1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation,convenient of installation and maintenance

2. Die height adjustment of slider with manual mode, the scale display. Extended by four
triangular rail, easy adjustment.

3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.

5. Electrical control adopts Omron PLC for centralized control, improved machine reliability

6. Proximity switch with 8 groups consisting of cam controller, reliable synchronization detection and monitoring.

7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.

RAM adjustment and Structure:

1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure,the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.

2. Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload protection device, simple structure, if the slider overload,the fuse collapse is damaged, then protect the machine tool and die from damage.

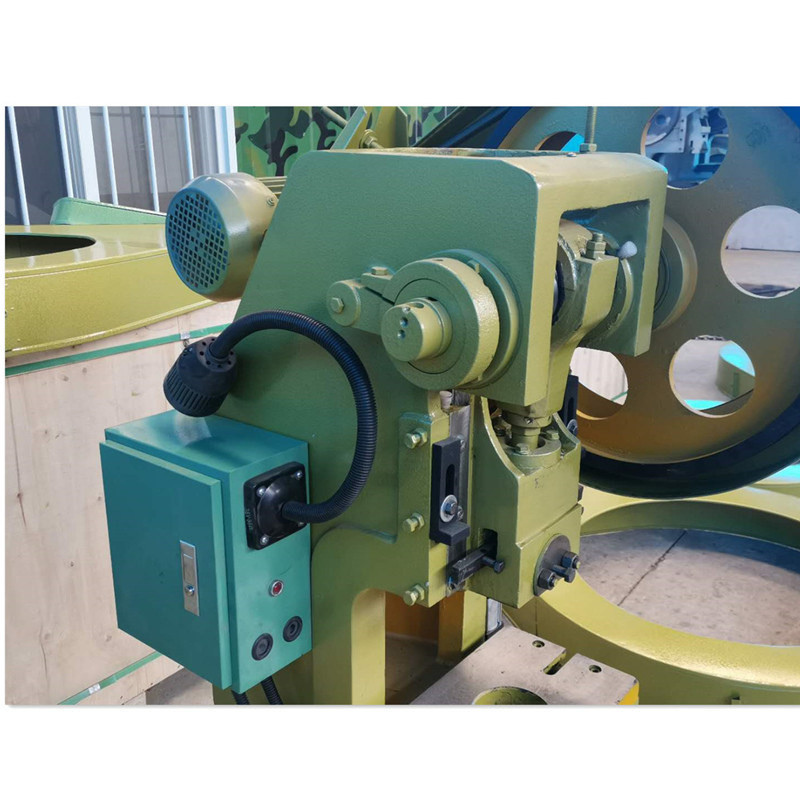

Detailed photos:

​Technical Parameters:​

​​

Packing photo:
