    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : QC12K-4*2500
    Certification : CE
    Price : $5000-$10000
    Payment Terms : 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
    Supply Ability : 500 sets/year
    Delivery Time : 15-30 DAYS
    • Product Details
    • Company Profile

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    Product Description:

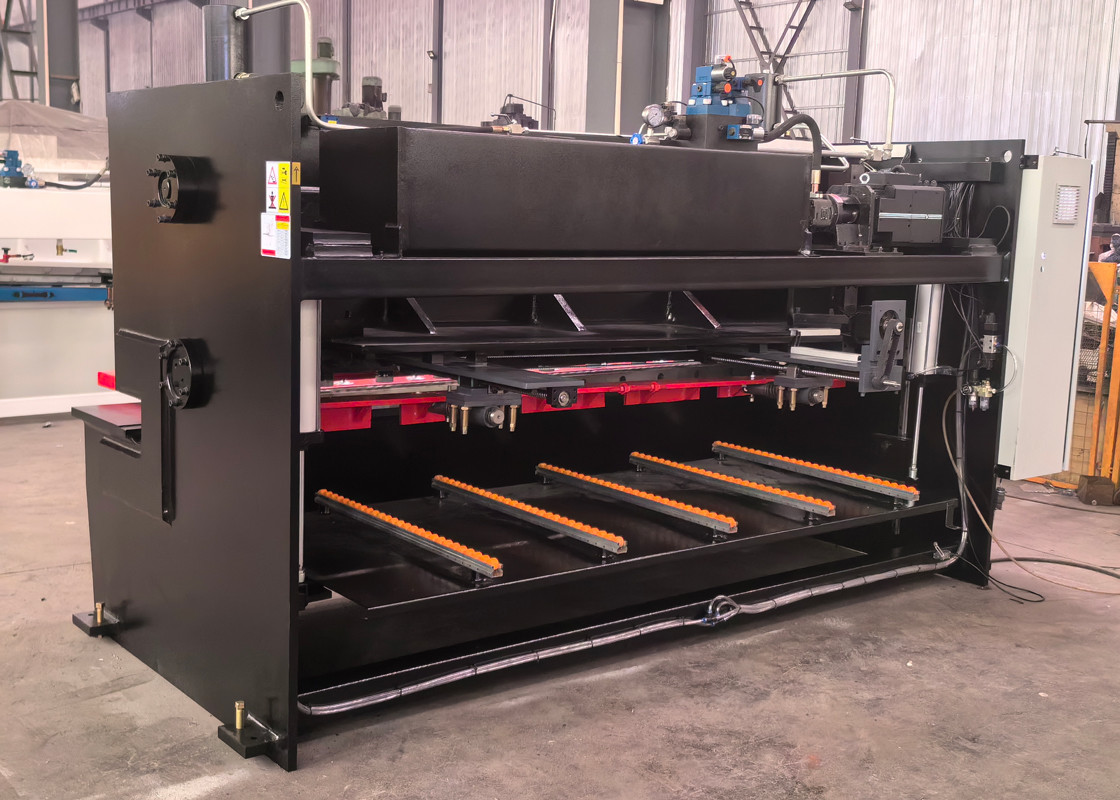

    The Hydraulic Guillotine adopts a frame structure with all-steel welding. It has four corner and eight-sided right-angle guide rails for added precision and good rigidity. Not only is it hydraulically preloaded, but the integrated two-way cartridge valve is also used for the entire hydraulic system. Additions such as a digital stroke display, a photoelectric protection device and a mobile workbench can be installed to make the replacement of molds more convenient.

    The guillotine features a double-action upper slider and lower hydraulic pad that can be adjusted within a range of pressure strokes according to process requirements. It can be easily operated and remotely controlled with the press of buttons.

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    Features:

    This guillotine is equipped with DELEM’s most advanced DAC360T system. Through the use of this system, the controller is able to automatically adjust the shear angle and knife edge gap that is appropriate for the material of the metal plates, thus greatly improving the accuracy of the processing.

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    Special customization - rear gauge is equipped with pneumatic support


    Technical Parameters:

    ParameterSpecification
    Features

    Hydraulic Guillotine Shears, CNC controller,

    Pneumatic support rack, Automatic blade gap adjustment

    Motor Power5.5KW
    ControllerDELEM DAC360T
    Cutting Thickness4mm
    Blade Gap AdjustmentAutomatic
    Control SystemCNC
    Backgauge Range20-500mm(can be enlargerd)
    Blade Length2500mm
    Table Height800mm
    Overall Dimension3040*1550*1550mm
    Weight2500kg

    Delem DAC-360T functions:

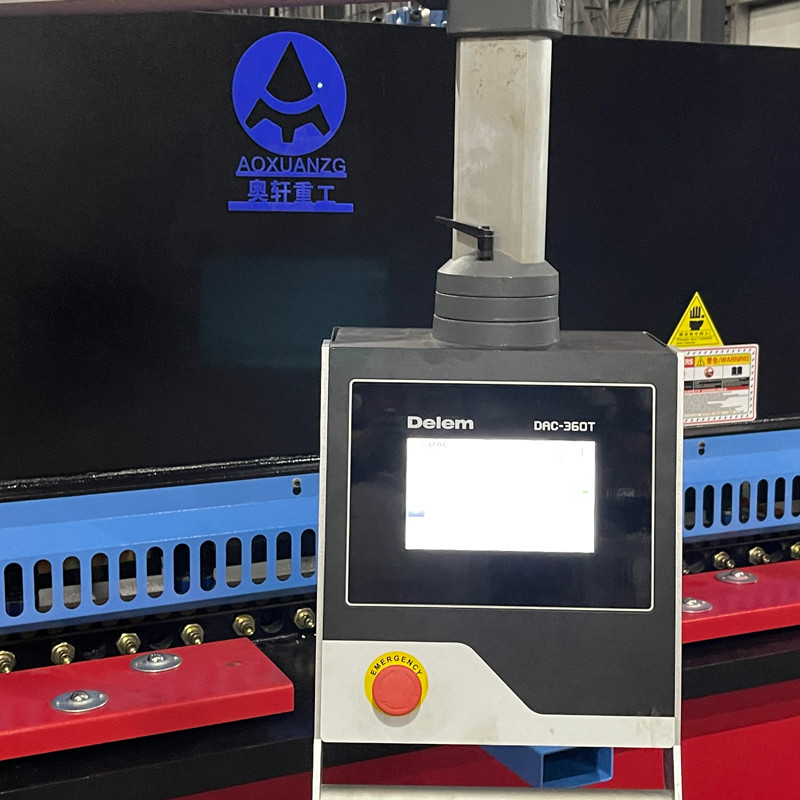

    The DAC-360T control provides a user-friendly and versatile touch control solution for shears. Upon demand multiple back gauge axes, cutting angle, stroke length and gap can be controlled, based on state-of-the-art electronics. Next to back gauge control, the DAC-360T automatically calculates the required setting for the cutting angle and gap depending on material properties and thickness. The stroke length is optimized based on the required cutting length, thus increasing productivity.

    The back gauge control supports servo control, 2-speed AC control as well as inverter control. Depending on the application you can select either two-side positioning or single side positioning, using optional spindle correction functionality. The DAC-362T supports dual and triple gauge axes control, offering control for extra gauges and related functionality.


    Full force control for clamping and cutting is available in the DAC-360T. With its easy to use touch screen navigation on the bright LCD screen, operation is most user-friendly. The numerical programming with clear icons guides the operator through all programming functionalities.

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    Detailed photos:

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    High-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360THigh-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360THigh-End Hydraulic Guillotine With Automatic Angle Adjustment And Blade Gap Adjustment For Precise 4mm Cutting DAC360T

    Support and Services:

    Hydraulic Guillotine Shearing Machine Technical Support and Service

    • 24/7 technical support with product information and troubleshooting assistance.
    • Regular scheduled maintenance and repair services.
    • Access to spare parts inventory.
    • Onsite installation and training.
    • Software upgrades and system updates.
    • Warranty and extended service plans.

    Packing and Shipping:

    Packaging and Shipping of Hydraulic Guillotine Shearing Machine:

    The Hydraulic Guillotine Shearing Machine is securely packaged to protect against moisture, dust, and other damage during shipping. Standard wooden cases or wooden pallets are used for the packaging. The package is sealed with the help of plastic tape and the box is labeled with the product information.

    The Hydraulic Guillotine Shearing Machine is shipped via air, sea, or land depending on the customer's requirements. The delivery time and costs vary depending on the destination and mode of transport chosen.
