    Hydraulic Iron Worker Combined Punching And Shearing Machine With Notching

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : Q35Y-16
    Certification : CE
    Price : $5698-$7326/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Hydraulic Iron Worker Combined Punching And Shearing Machine With Notching

    Hydraulic Iron Worker Combined Punching and Shearing Machine with Notching /China Made Ironworker

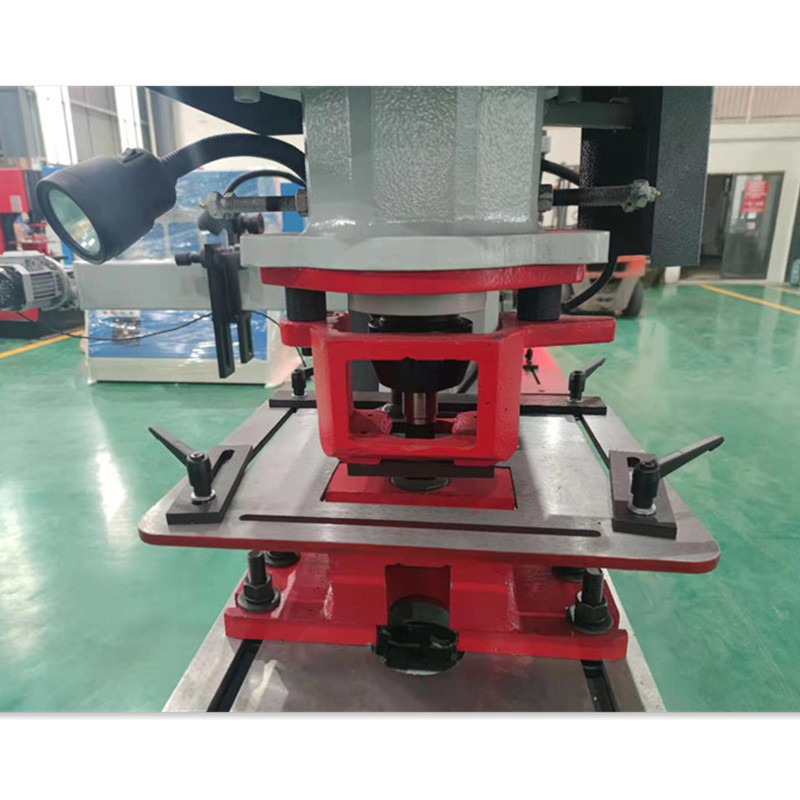

    *Aoxuan's Q35Y series industrial-grade hydraulic ironworker machine featuring multiple functions, including: round
    hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate
    bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cu
    tting; angle bending and pipe notching.

    *The hydraulic ironworker machine comes standard with: quick-change coupling nut & sleeve, squaring arm with s
    cale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multif
    unction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the com
    ponents are of the highest quality in the matter of safety, function, capability and maintenance.

    *Optional tooling of hydraulic ironworker machine

    Main standard properties components of hydraulic ironworker machine:

    1. All the electrical parts are IMPORT with CE certificate.
    2. Professionally engineered design frame structures.
    3. Steel welds with high precision strength and rigidity to eliminate vibrations.
    4. Ironworker steel frame Q235 = American standard steel A306 GR55.
    5. Most important easy maintenance
    6. Timer relay by Japanese OMRON.
    7. Indicator on both hydraulic cylinders
    8. Electric back gauge auto stop
    9. Oil seals by Japanese.
    10. Hydraulic system with overload protection system
    11. Hydraulic System by Japanese Yuken.
    12. Motor by Chinese Jiangsu Dazhong
    13. Hydraulic fuel tanks and ironworker frame built by our Factory.
    14. Dual independent hydraulic cylinder
    15. Dual Footswitch controlled work separately
    16. Easy Adjustable stroke control with ruler
    17. Emergency safety stop switch


    Hydraulic Iron Worker Combined Punching And Shearing Machine With Notching



    Details:

    Hydraulic Iron Worker Combined Punching And Shearing Machine With NotchingHydraulic Iron Worker Combined Punching And Shearing Machine With Notching
    Technical Parameters:

    Profile steelRound barSquare barEqual angle steelT-BarJoistChannel
    90°shearing45°shearing90°shearing45°shearing
    Q35Y-164540*40125*125*1250*50*5125*125*1260*60*8126*74*5126*53*5.5
    Q35Y-205050*50140*140*1250*50*5140*140*1270*70*10160*86*6160*60*6.5
    Q35Y-25605050160*160*1460*60*6160*160*1480*80*10200*102*9210*75*9
    Q35Y-306555*55180*180*1660*60*6180*180*1680*80*10280*124*10.9280*86*11.5
    Q35Y-407060*60200*200*18100*100*10180*180*1680*80*10300*126*11300*89*12
    Q35Y-508065*65200*200*20120*120*10180*180*1680*80*10320*130*10320*92*12


    Customer & EXPO:
    Hydraulic Iron Worker Combined Punching And Shearing Machine With Notching
    FAQ:
    1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
    own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
    be solved on spot at first time.

    2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
    ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
    ica.

    3. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
    would keep you updated of production details of emails and photos.
