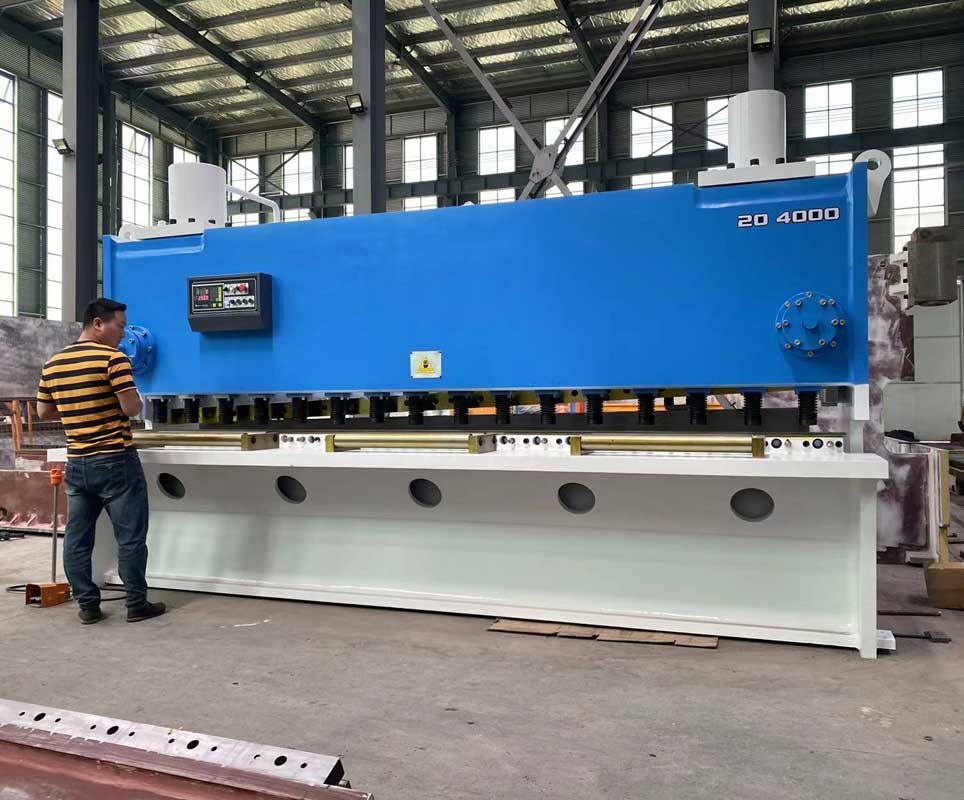

20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty

    Buy cheap 20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty from wholesalers

    Buy cheap 20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty from wholesalers
    • Buy cheap 20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty from wholesalers
    • Buy cheap 20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty from wholesalers

    20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : QC12Y
    Certification : CE,ISO
    Price : $28000-$30000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty

    Heavy duty 20*4000mm Guillotine Shears Hydraulic Cutting Machine prcie


    Features:
    ●The steel plate welding structure of the whole machine, hydraulic transmission, accumulator return, convenient operation, reliable performance, beautiful appearance, standard digital control system;
    ●The adjustment of the knife edge gap is indicated by a sign, and the adjustment is easy and fast;
    ●It is equipped with light alignment device and cutting stroke control device, which is convenient and quick to adjust;
    ●The working unit is equipped with a rolling support ball to reduce sheet scratches and frictional resistance;


    20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty


    Technical parameter:

    ModelThickness
    (mm)
    Cutting Length
    (mm)
    Cutting Angle
    (°)
    Material Strength
    (KN/CM)
    Stroke
    (times/min)
    Power
    (kw)
    Dimension(mm)
    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200

    Details:

    ● Estun E21sNC control System
    ● Powered Back gaugeX-axis
    ● DELTA Inverter controlled back gauge
    ● HIWIN Ball screws & Polished rod with 0,05mm accuracy.
    ● Squaring Arm and Front Support Arms
    ● Germany Bosch-Rexroth Hydraulic
    ● Germany EMB Tubing connector
    ● Germany Siemens Main Motor
    ● Tele mecanique/Schneider Electrics
    ● Hydraulic &Electrical overload protection
    ● Cutting Line Illumination and wire for shadow line cutting
    ● Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

    20x4000mm Guillotine Shears Hydraulic Cutting Machine Heavy Duty

    Packing Detail:
    ☂ Each Shearing machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


    Delivery Detail :
    ☀ Shipped in 30 days after payment.


    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.


    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.


    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
