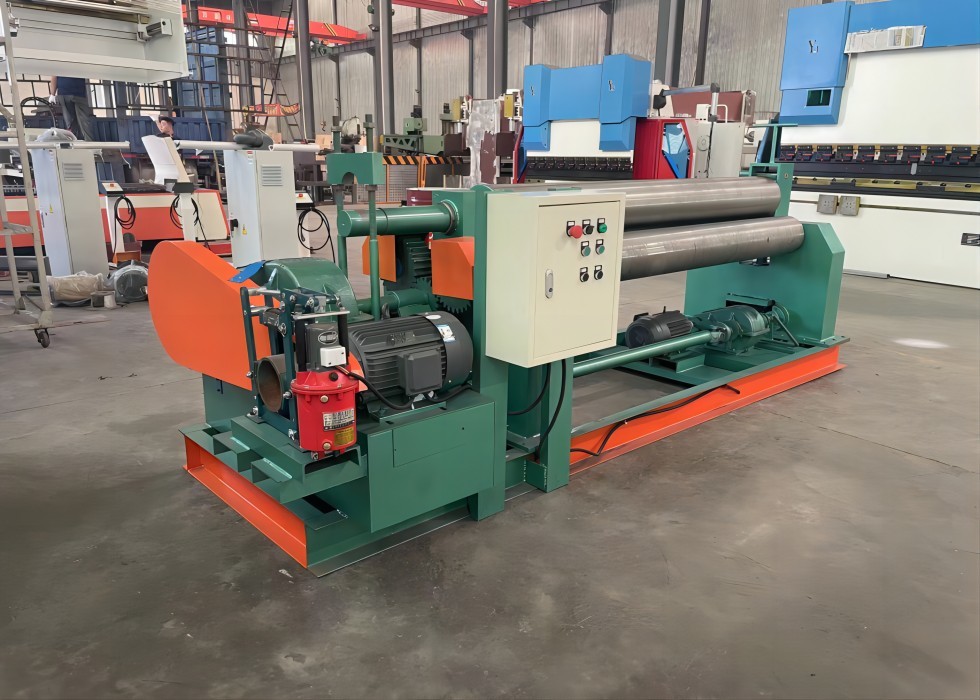

W11-13*2500 Hydraulic Roll Bending Machine/
Mechanical Symmetrical 3 Roller Plate Bending Rolling Machine

Summarize:

W11 series belong to three roller plate rolling machine, up roller is fixed and it is the main drive, hydraulic motor driven by variable spee-
d drive gear up and down roller belt drive, to provide torque for the roll sheet; under the roller moves vertically through the hydra-
ulic pressure acting on the piston of hydraulic cylinder obtained in order to clamp plate for hydraulic transmission; the down roll
of the sides with side roller and cylinder driven by oil.The machine advantage of end plate bending(pre-bending) and rolling can
be conducted on the same machine.

Structure and main parts:

This equipment composed of work frame , upper roll device , main drive device, down roll device, side roll device, overturn dev
ice ,hydraulic system(parts) , electricity system(parts), and lubricate device .

Work frame:

Body from the base, a fixed side frame and the tip side of the rack, and each part is steel welded structure. Were fixed with bolts
on both sides of the rack in the base and sides of the rack will be used to connect beams connected to rigidity good. Both sides
of the rack up roller and side rollers with movement of rail, fixed on the side of the rack with roller bearing for half of the closed fr
ame structure, has overturned side rack shelf support devices. Coil force in the process of both sides of the rack by the bear fro
m the base not only supports the weight of the machine to ensure the accuracy of the role of equipment, but also enables a torq
ue between the drive and chassis balance, and will join into one machine. In the now traditional large-scale four-roller bending m
achine body and the main gear is separate from the base installation.

Deatailed information:

1. Main power:Siemens Electrical made in Germany

2. Main electronic elements: made in France;

3. Axletree:Double-row self-aligning bearingfrom Germany

4. Main motor: Siemens Electrical made in Germany

5. Programmable logic controller PLC:OMRON products from Japan

6. Hydraulic system: - Rexroth made inGermany

7. Gear pump: made in China TaiWan ;

8. Work Roller:Material of work roller with 42CrMo Alloy steel.

9. Digital display system:Touch Screen for Delta

10 Transducer:OMRON,Made in Japan

11. Automatic lubrication system:Sino-Japanese joint,which has block alarm

W12 Four-roller Rolling machine, plate rolling machine, hydraulic bending machine, 4-roller rolling machine,

W11 Three-roller rolling machine,plate,rolling machine

Technical Parameters:
