    125T 3200MM Hydraulic Press Brake CNC 3 Axis XYV With TP10s

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : WC67Y-125T/3200
    Certification : ce,ISO9001
    Price : $12300-$16000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    125T 3200MM Hydraulic Press Brake CNC 3 Axis XYV With TP10s

    125T 3200MM Hydraulic Press Brake CNC Bending Machine 3 Axis XYV With TP10s


    125T 3200MM Hydraulic Press Brake CNC 3 Axis XYV With TP10s


    MAIN FEATURE:

    1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
    2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
    3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
    4. Travel limit protection, full machine guarding with safety interlocker.
    5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
    6. The stroke and distance of the back gauge is adjusted by the motor.
    7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
    8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
    9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
    10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.


    Technical parameter:

    ModelNominal forceWorktable lengthDistance between columnsThroat depthSlider strokeMaximum opening height between worktable and sliderMain motor powerMachine tool size
    (L x W x H)
    Machine weight
    Unitsknmmmmmmmmmmkwmmkg
    63/3200630320027002501004005.54340×1460×24206000
    100/32001000320027003201504507.53450×1450×26008000
    160/3200160032002700320200465113250×2535×292013000
    250/3200250032002700400250560154000×2250×406018400
    250/4000250040003300400250560154800×2250×406020000
    250/5000250050004100400250560155800×2250×406022000
    250/7000250070006250400250560157800×2250×416025000
    320/4000320040003300400250560224060×2570×456022000
    320/5000320050004300400250560225060×2570×456024510
    320/6000320060005300400250560226060×2570×456027020
    400/4000400040003100400320625374050×3240×388029950
    400/5000400050004210400320625375050×3240×388037000
    400/6000400060005100400320625376050×3240×388044050
    500/4000500040003100400320630374090×2965×532032700
    500/5000500050004100400320630375090×2965×532039750
    500/6000500060005100400320630376090×2965×532046800
    630/5000630050004100400320710455050×4910×320067950
    630/6000630060005100400320710456050×4910×320075000
    800/5000800080006700350400750559500×3000×6050100000

    Press brake:125T 3200 mm

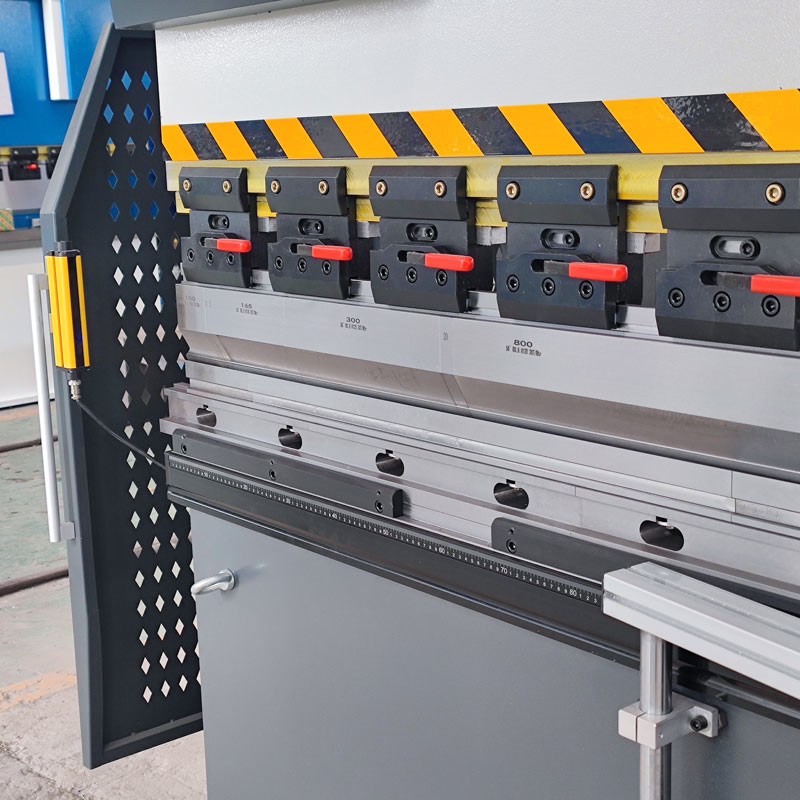

    Standard die:3200mm Segmented Upper die with lower die.
    E21 Controller : Estun,Nanjing
    Ball screw & linear guide:HIWIN
    Hydraulic valve:Rexroth,Germany
    Tubing connector:EMB,Germany
    Main Motor:German Siemens
    Electrics:Schneider ,France
    Hydraulic Pump:SUNNY,USA
    Foot switch:Karcon,South Korea

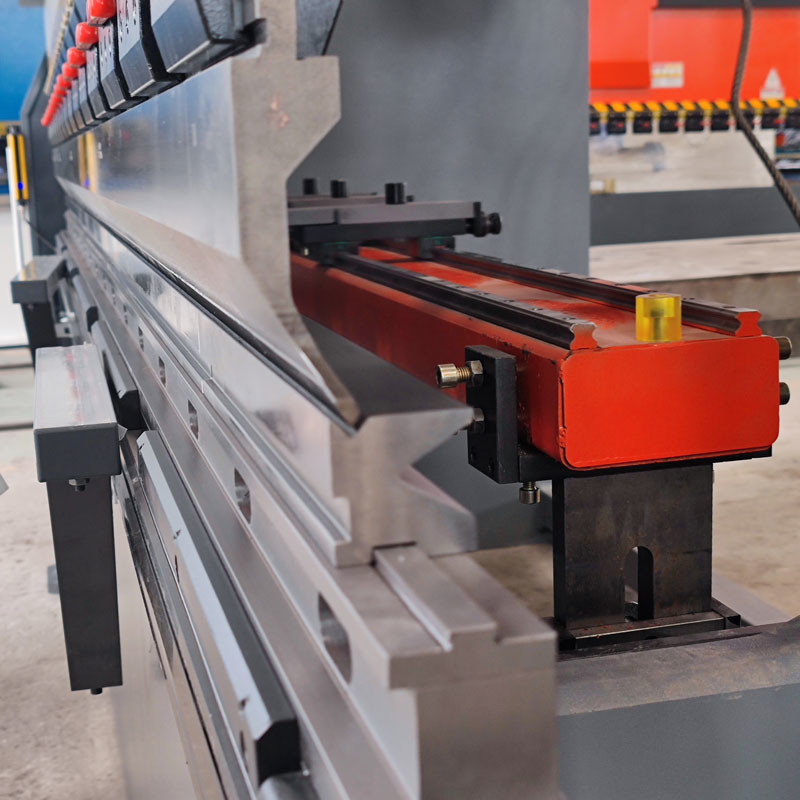

    CNC Stop finger with linear guide
    Plate Support Arm
    Hydraulic & Electrical overload protection
    Protection facility :
    -laser protection(Optional)
    -Light screen protection(Optional)
    Compensation device(Optional)
    Fast clamp(Optional)
    Light screen protection(Optional)
    Rear guardrail(Optional)
    Side guardrail(Optional)


    125T 3200MM Hydraulic Press Brake CNC 3 Axis XYV With TP10s125T 3200MM Hydraulic Press Brake CNC 3 Axis XYV With TP10s


    Packing Detail:
    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
    Delivery Detail :
    ☀ Shipped in 30 days after payment.
