    Upper Roller Universal Hydraulic 3 Roller Plate Bending Machine PLC

    Ask Lasest Price
    Brand Name : Aoxuanzg
    Model Number : W11S-20x6000
    Certification : CE,ISO
    Price : $80000-$83000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Upper Roller Universal Hydraulic 3 Roller Plate Bending Machine PLC

    W11S-20x6000 Upper Roller Universal Hydraulic 3 Rollers Plate Bending Machine Rolling machine


    The machine is a hydraulic three-roll plate rolling machine, which is used to roll the plate into a cylindrical shape. Pre-bending is achieved by the horizontal movement of the upper roller; there is a relative displacement with the lower roller. The two lower rollers are driven by a motor and a reducer during rounding. Since the height of the lower roller is constant, it is easy to feed and operate. The dumping frame is hydraulically designed.


    Upper Roller Universal Hydraulic 3 Roller Plate Bending Machine PLC


    Technical parameter:

    Model typeMax thickness
    (mm)
    Max length
    (mm)
    Upper roller diameter
    (mm)
    Lower roller diameter
    (mm)
    Rollers center distance
    (mm)
    Main motor
    (kw)
    Hydraulic motor power
    (KW)
    W11S-12*20001220002551502457.54
    W11S-12*2500122500300165270115.5
    W11S-12*3200123200320180300155.5
    W11S-16*2000162000300165270115.5
    W11S-16*2500162500320180300155.5
    W11S-16*3200163200380200330227.5
    W11S-20*2000202000320180300155.5
    W11S-20*2500202500380220360227.5
    W11S-25*2000252000380220360227.5
    W11S-25*25002525004102353803011
    W11S-30*20003020004102353803011
    W11S-30*25003025004602604203715
    W11S-30*30003030004802604203715
    W11S-30*32003032005102754604515
    W11S-30*40003040005902905004522
    W11S-40*20004020004802604203732
    W11S-40*25004025005202905005522
    W11S-40*30004030005602905005522
    W11S-40*40004040006103606507530
    W11S-50*32005032006103607007530

    Details (optional):
    1. Main power supply: German Siemens motor
    2. Main electronic components: French Schneider;
    3. Axle: German double row self-aligning bearing
    4. Main motor: German Siemens motor
    5. Programmable logic controller PLC: Japanese OMRON product
    6. Hydraulic system: German Bosch-Rexroth
    7. Gear pump: Made in Taiwan, China;
    8. Work roll: The work roll is made of 42CrMo alloy steel.

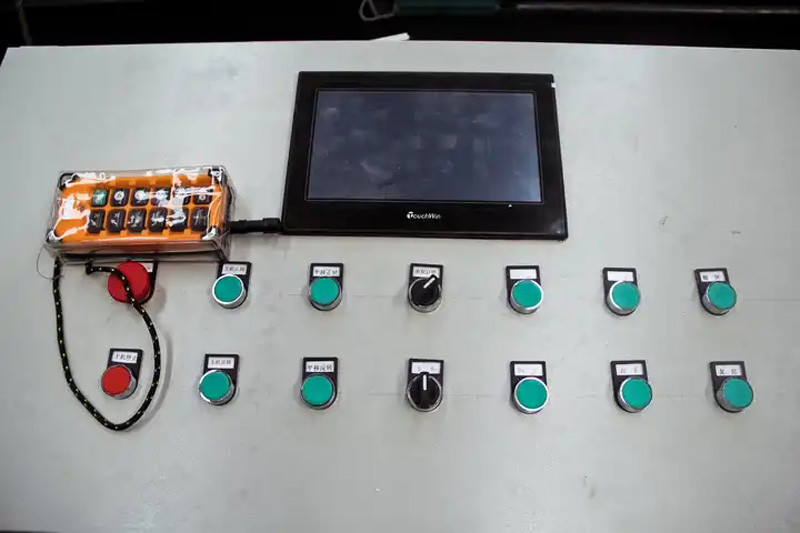

    9. Digital display system: Delta touch screen
    10 Transducers: Omron, made in Japan
    11. Automatic lubrication system: Sino-Japanese joint venture, with stall alarm


    Upper Roller Universal Hydraulic 3 Roller Plate Bending Machine PLCUpper Roller Universal Hydraulic 3 Roller Plate Bending Machine PLC


    Packing:

    1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
    2. After tested, the machines will be wrapped with plastic sheet ,
    3,a,Small size : carefully packed in wooden cases ;
    b,Big size: machine will be securely wired into the container by steel wire.


    Packing Detail:
    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
    Delivery Detail :
    ☀ Shipped in 30 days after payment.


    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.


    If you are interested, please contact me ^-^
