    CNC Universal 3 Roll Plate Rolling Machine With Super High Power

    Ask Lasest Price
    Brand Name : Aoxuan
    Model Number : W11S-6X2000
    Certification : CE
    Price : US $23,980.00-$29,985.00
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets/ year
    Delivery Time : 30 days after payment
    • Product Details
    • Company Profile

    CNC Universal 3 Roll Plate Rolling Machine With Super High Power

    W11S-40X2550 CNC Giant Upper Roller Universal 3-Roll Plate Rolling Machine With Super High Power

    CNC Universal 3 Roll Plate Rolling Machine With Super High Power

    1.Main functions:
    1. Pre-bending is available means top-roller can be adjusted in directions upwards- downwards, right- left.
    2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, W11S machine can produce cone type tube.
    3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, workers are safe and easy to run the machine.
    4. The shape of "O", "U", "R" or combined section shape is also available.
    5. The machine is completed with economical PLC control function achieve high working efficiency.
    6. PLC is from SIEMENS or OMRON;
    7. Digital Screen is from DELTA, Taiwan;
    8. Hydraulic valve and O-Seals are from UOSHEN brand, Taiwan
    9. Motors are from SIEMENS brand
    10. Main electric parts are from SIEMENS or SCHNEIDER
    11. Gearbox is from China famous brand
    12. Machine frame is welded with quality steel plate
    13. Top roller is made with 42CrMo forded alloy steel
    14. Bottom rollers are made with 45# forged alloy steel
    15. To strong the bottom rollers, support rollers are adopted

    2. Our Services
    1: Response in time after getting customer's claim
    1: Provide solution in 1 day
    2: Usually solve problem within 2 days
    2. For big machine, Installation Service is available as per customer's requirement

    3. Training Service
    Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.


    4. Quality Guarantee
    We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
    We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.


    5. Technical parameters

    ModelMax. thickness(mm)WidthWorkpiece min diaTop
    roller
    Bottom
    roller
    Distance bottom rollerMotor (KW)
    normalPre(mm)mm(mm)(mm)(mm)MainHydraulicMovement
    W11S-6x200064200048019512516031.50.75
    W11S-6x250064250058023513518042.20.75
    W11S-8x200086200055022012518042.20.75
    W11S-10x200010820006302501452005.541.1
    W11S-10x320010832006302801802507.541.1
    W11S-10x4000108400080036020033018.57.54
    W11S-12x250012925006602651452005.55.51.5
    W11S-12x40001294000850380220360227.55.5
    W11S-16x200016122000700300150245117.54
    W11S-16x250016122500750330165270117.54
    W11S-16x320016123200800360180330227.54
    W11S-16x400016124000120049025040037117.5
    W11S-20x200020162000780340180330227.54
    W11S-20x250020162500800360180330227.54
    W11S-20x32002016320085038022036030115.5
    W11S-25x20002520200080036022036030115.5
    W11S-25x25002520250085038024036030115.5
    W11S-25x320025203200100041026038037117.5
    W11S-25x400025204000120049025040037117.5
    W11S-30x250030242500100041026038037117.5
    W11S-30x320030243200110044026040037117.5
    W11S-35x200035282000110044026040037157.5
    W11S-35x2500352825001150460275420371511
    W11S-35x3200352832001400560290500552211
    W11S-40x25004032250012505002904605518.511
    W11S-40x3200403232001400570340500752211
    W11S-40x3200403232001480590340610552211
    W11S-40x5000403250001750700360650753015
    W11S-50x5000504050001980790420780903715
    W11S-60x3200604832001600650380700753015
    W11S-70x3200705632001750710420780753715
    W11S-80x3200806432001900770460880903718.5

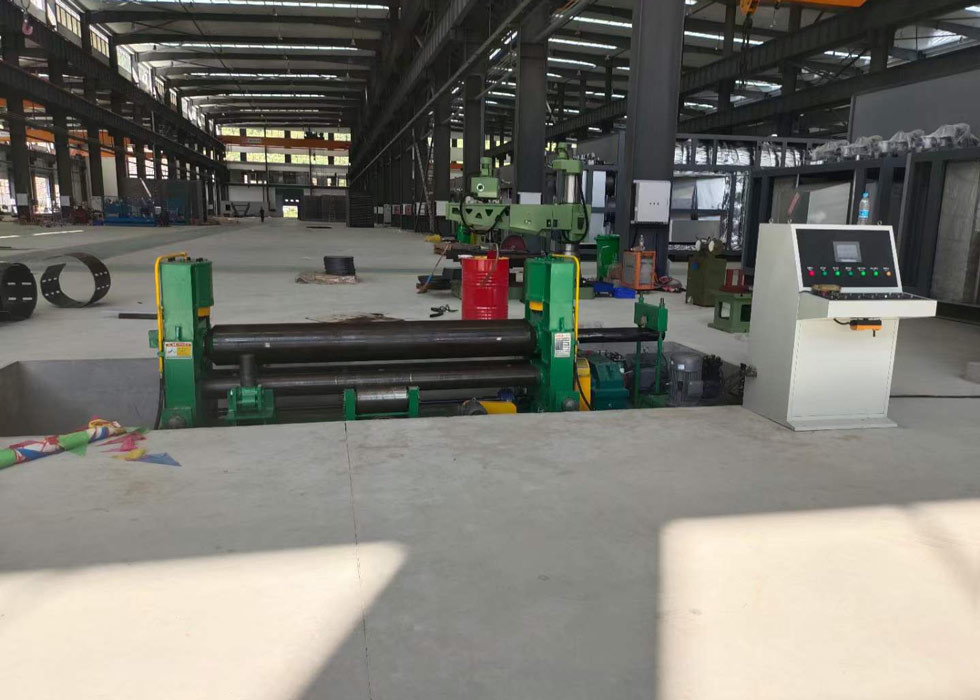

    6. Details


    CNC Universal 3 Roll Plate Rolling Machine With Super High PowerCNC Universal 3 Roll Plate Rolling Machine With Super High PowerCNC Universal 3 Roll Plate Rolling Machine With Super High Power


    CNC Universal 3 Roll Plate Rolling Machine With Super High Power


    Our workshop:

    CNC Universal 3 Roll Plate Rolling Machine With Super High Power

    Contact information:

    CNC Universal 3 Roll Plate Rolling Machine With Super High Power
