Product Description:

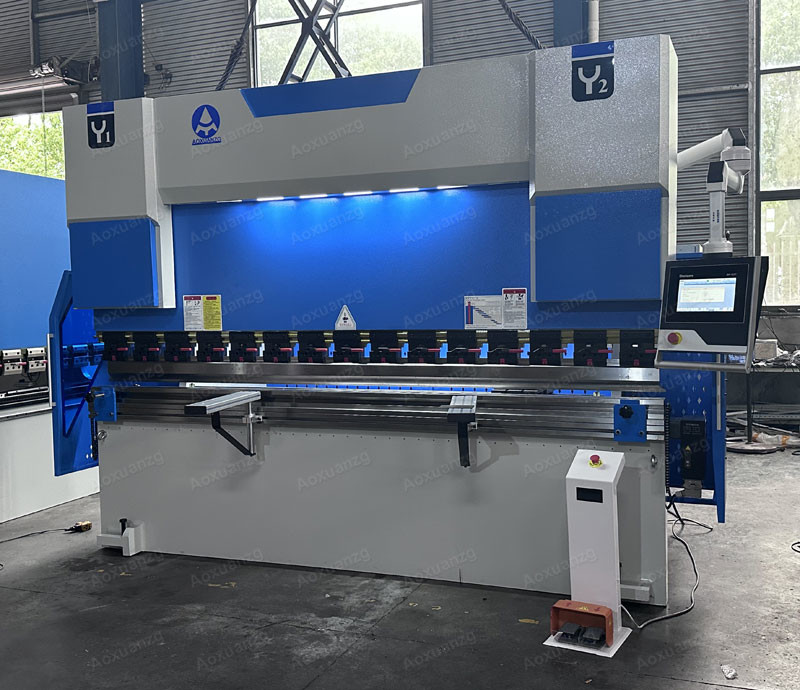

Press brake is a machine capable of bending plates, which has a
wide range of applications and uses.
1,In the electric power industry, the shearing machine can cut the
plates into different sizes, and then process them again through
the press brake, such as computer cases, electrical cabinets,
refrigerator air-conditioning shells, etc.
2,In the decoration industry, high-speed CNC shearing machines are
widely used, generally used in conjunction with CNC Press brake, to
complete the production of stainless steel plates, doors and
windows, and decoration in some special places.
3,In the automobile and shipbuilding industry, large-scale CNC
hydraulic shearing machines are generally used, mainly to complete
the shearing work of the plate, and then perform secondary
processing, such as welding, bending, etc.
4,In the kitchen and catering industry, stainless steel kitchen
utensils of various varieties and specifications are then subjected
to secondary processing, such as welding, bending, etc.
5,In the aerospace industry, high precision is generally required,
and high-precision CNC shearing machines and press brake can be
selected, which are accurate and efficient.
6,In the wind power communication industry, wind power generation
poles, road light poles, communication tower poles, traffic light
poles, traffic signal poles, monitoring poles, etc. are bent.
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300
|
Features:
1. Adopt integrated hydraulic control system, more reliable and
easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage
proof design and setting .
3. Overload overflow protection is outfitted to hydraulic
system,which can assure no leakage,and the oil level can be read or
seen directly.
4. The hydraulic system is made in compliance with current
regulations.
Controller:
DA-53T features:
• “Hot-key” touch navigation
• 10.1" high resolution colour TFT
• Up to 4 axes (Y1,Y2 + 2 aux. axes)
• Crowning control
• Tool / material / product library
• Servo and frequency inverter control
• Advanced Y-axis control algorithms for closed-loop as well as
open-loop valves.
• TandemLink (option)
• USB memory stick interfacing
• Profile-53TL offline software
Details:
Support and Services:
Pre-sales.
* Project design, performance introduction, technical agreement,
contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product
assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human
parts.
* Training how to install the machine, training how to use the
machine with video and so on
* And our technical staff can go abroad to provide technical
guidance.
Packing and Shipping:
Packaging and Shipping for Hydraulic CNC Press Brake:
The Hydraulic CNC Press Brake will be securely packaged in a wooden
crate or steel frame, if necessary. The packaging will include
appropriate material to ensure the safety of the product during
transit. The crate or frame will be labeled with the product name
and a unique identification number.
The Hydraulic CNC Press Brake will be shipped via a reliable
carrier, such as UPS, FedEx, or DHL. The shipping costs will be
based on the size and weight of the product, as well as the
delivery location.
FAQ:
Q&A
Q1: What is the Brand Name of the Hydraulic CNC Press Brake?
A1: The Brand Name of the Hydraulic CNC Press Brake is AOXUANZG.
Q2: What is the Model Number of the Hydraulic CNC Press Brake?
A2: The Model Number of the Hydraulic CNC Press Brake is
WE67K-160T3200MM.
Q3: Where is the Hydraulic CNC Press Brake made?
A3: The Hydraulic CNC Press Brake is made in China.
Q4: Does the Hydraulic CNC Press Brake have Certifications?
A4: Yes, the Hydraulic CNC Press Brake has CE and ISO
Certifications.
Q5: How much does the Hydraulic CNC Press Brake cost?
A5: The Hydraulic CNC Press Brake costs $31000.
