Product Description:

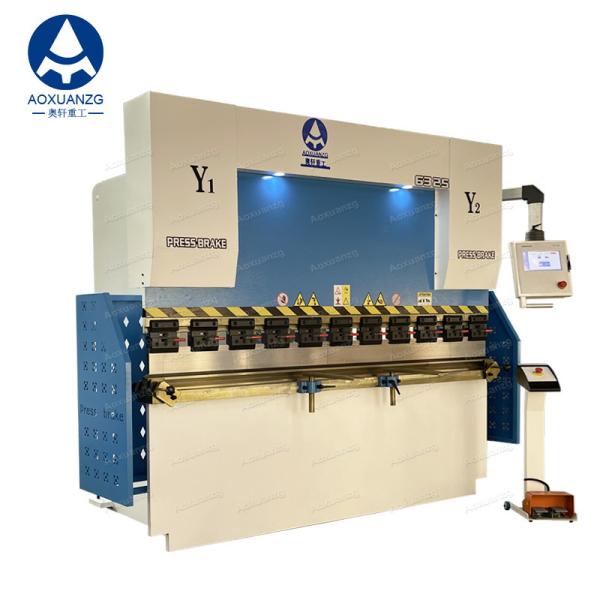

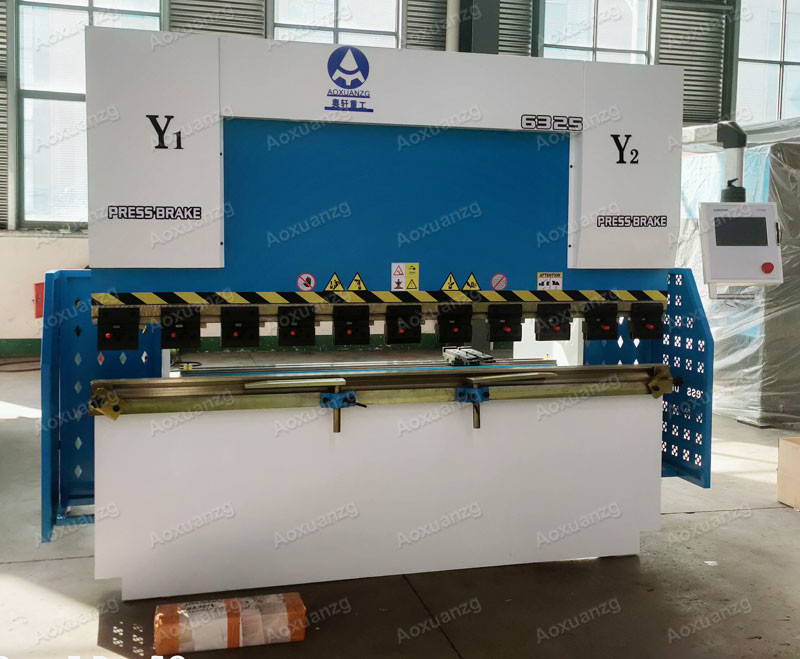

CNC Press Brake
The CNC press brake uses the mold (general or special mold) to bend
a cold metal sheet into a workpiece of various geometric
cross-section shapes. It is a sheet metal forming machine designed
for cold rolling sheet metal processing. It is widely used in sheet
metal bending, such as automobile, aircraft manufacturing, light
industry, shipbuilding, container, elevator, railway vehicles and
other industries.
Main features:
1. The whole machine is in sheet plate welded structure, which
internal stress eliminated by vibration aging technology, high
strength and good rigidity of machine.

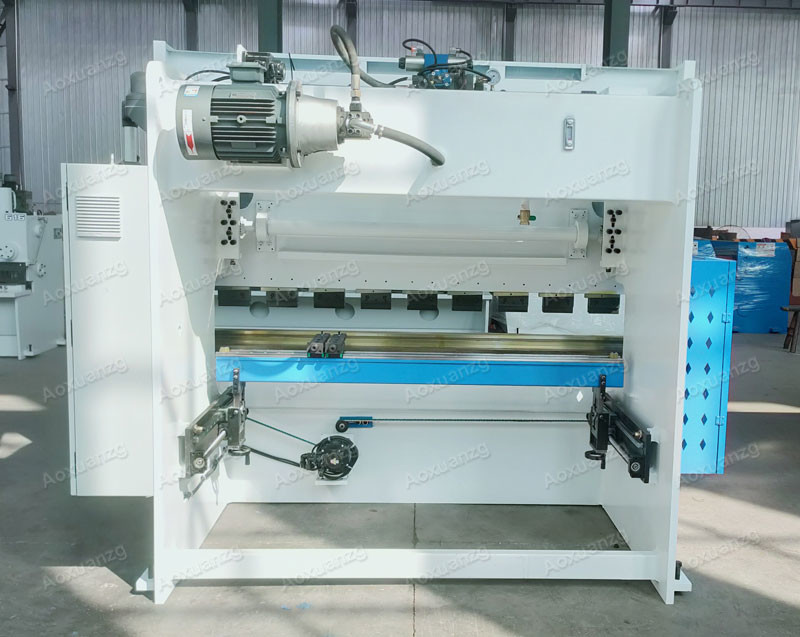

2. Double hydraulic oil cylinder is applied for upper transmission,
provided with mechanical limit stopper and synchronous torsion bar,
stable and reliable operation, as well as high precision.

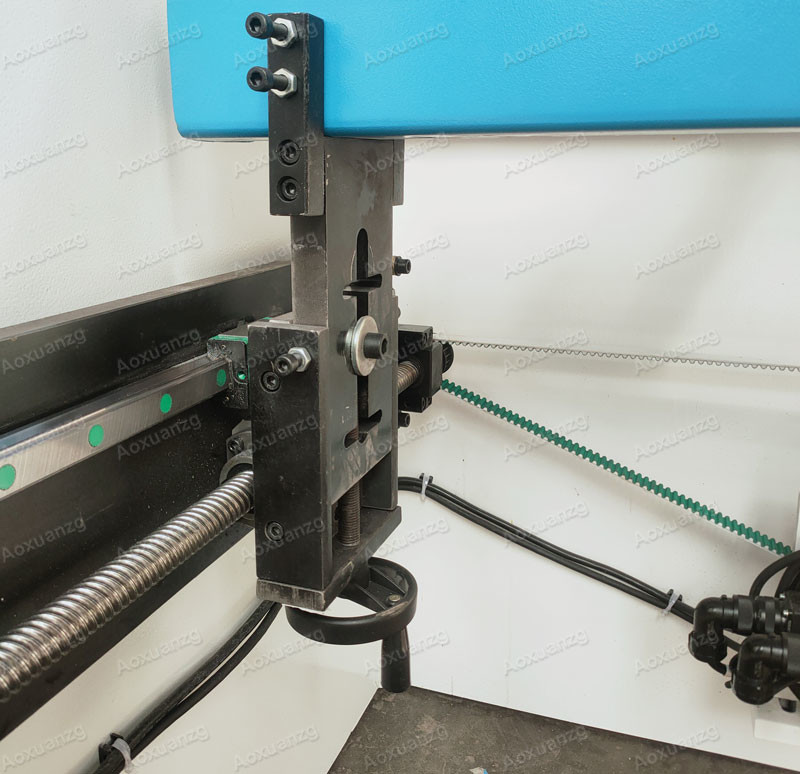

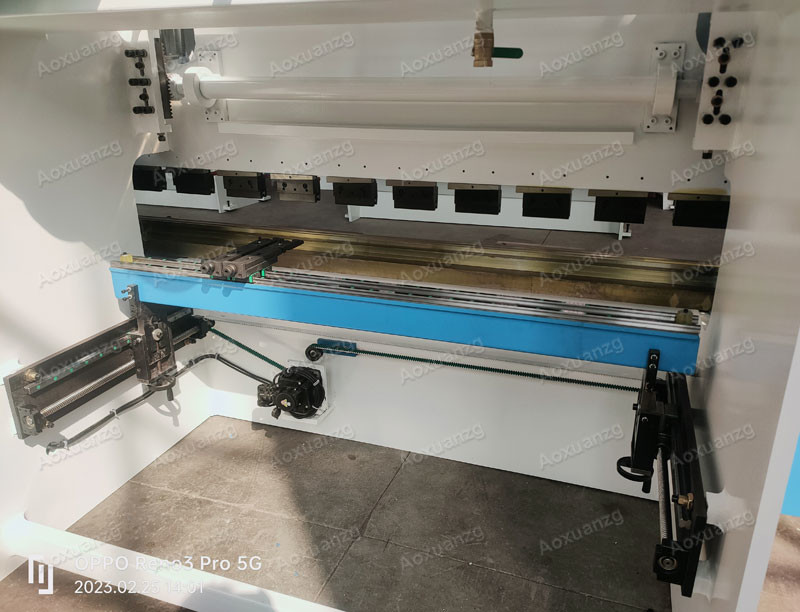

3. Electrical adjustment and manual fine-tuning adjustment mode are
adopted for distance of rear stopper and stroke of gliding block,
and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation
device is optional.
Customization:
Hydraulic Press Brakes
Brand Name: AOXUANZG
Model Number: WC67Y-63T2500
Place of Origin: Maanshan
Certification: CE,ISO
Minimum Order Quantity: 1
Price: $9900-12000
Packaging Details: Plastic film package first, then placed in
container with steel wire fixed.
Delivery Time: 15-30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment
after machine finished testing before shipping by(T/T).
Supply Ability: 500 sets/year

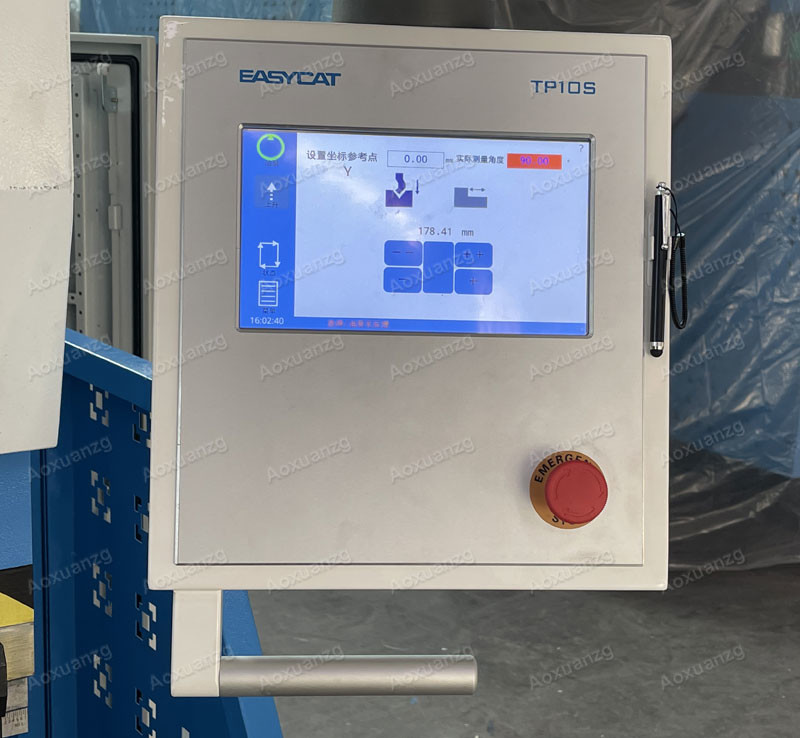

Control: Tp10s Controller
Weight: 3.6T
Size: 2600*1725*2400mm
Strokes: 10
Power mode: Hydraulic
Special Features: single phase, big power, angle programming.
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight | Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Packing and Shipping
1. Before packaged, the machines will be tested strictly to
guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by
steel wire.
