    TP10S Controller Hydraulic Press Brakes

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-30T/1200
    Certification : CE
    Price : $80008-$18946/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    TP10S Controller Hydraulic Press Brakes

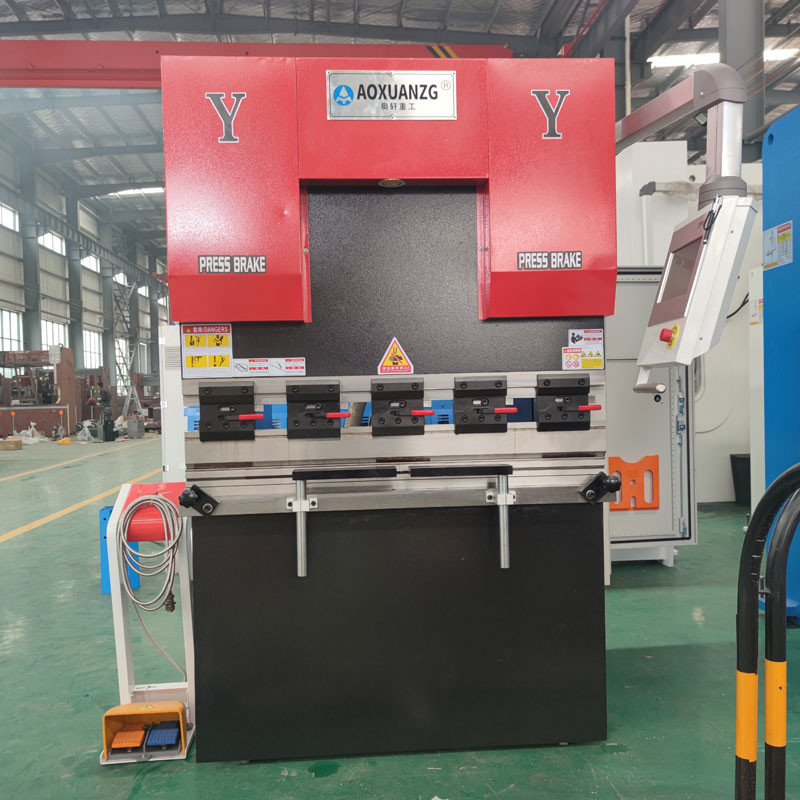

    High Accuracy Servo Motor CNC Hydraulic Press Brakes With TP10S Controller
    Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance
    manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending
    dies can be designed and changed according to customers' different needs.

    Technical Parameters:


    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150



    TP10S Controller Hydraulic Press Brakes
    Standard configuration
    Main configuration list

    1
    NC Control system
    E21 E300 DA41 DA53S DA56S DA66T DA69T TP10S
    2
    Electrical components
    Schneider Electrical from French
    3
    Main Motor
    Siemens from Germany Brand
    4
    BackGauge & RAM Drive
    Inverter from Taiwan delta
    5
    Travel switch
    Schneider Electrical from French
    6
    Foot switch
    KACON from South Korea
    7
    Hydraulic System
    Bosch-Rexroth form Germany
    8
    Hydraulic Pump
    SUUNY or SAEMP form Taiwan
    9
    Sealing Element
    PARKER from U.S.A Brand
    10
    Tubing connector
    EMB form Germany Brand
    11
    Ball screw/ Polished rod
    HIWIN from TaiWan Brand

    Details:

    TP10S Controller Hydraulic Press BrakesTP10S Controller Hydraulic Press BrakesTP10S Controller Hydraulic Press BrakesTP10S Controller Hydraulic Press Brakes


    Packing Detail:
    1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
    2. All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.
    3. The outmost is wooden case with fixed formwork.
    4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
