Holland Delem DA66T 6 + 1 Axis CNC Hydraulic Press Brakes Machine
For Electrical Cabinet
CNC press brake uses the mold (general or special mold) to bend a
cold metal sheet into a workpiece of various geometric
cross-section shapes. It is a sheet metal forming machine designed
for cold rolling sheet metal processing. It is widely used in sheet
metal bending, such as automobile, aircraft manufacturing, light
industry, shipbuilding, container, elevator, railway vehicles and
other industries.
Technical Parameters:
| Model | Norminal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat Depth (mm) | Slider Stroke(mm) | Max Open hight (mm) | Main motor power(KW) | Crowing Cylinders | Control Axes | X axis stroke(mm) | X axis speed(mm/s) | Dimension
LxWxH (mm) |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 2 | 3+1 | 500 | 200 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3 | 3+1 | 500 | 200 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3 | 3+1 | 500 | 200 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4 | 3+1 | 500 | 200 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 8500×3100×7150
|
1. High bending precision,fast working speed, and
efficient,operational safety,performance stably.
2. Good antiknock frame(welded-steel plate construction),whole
frame is been tempering,reduce modification,using large-scale CNC
milling machine,process in one time,insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system,easy
operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to
standard drawing.
6. High executive force,high standard and high professional machine
assembled team.

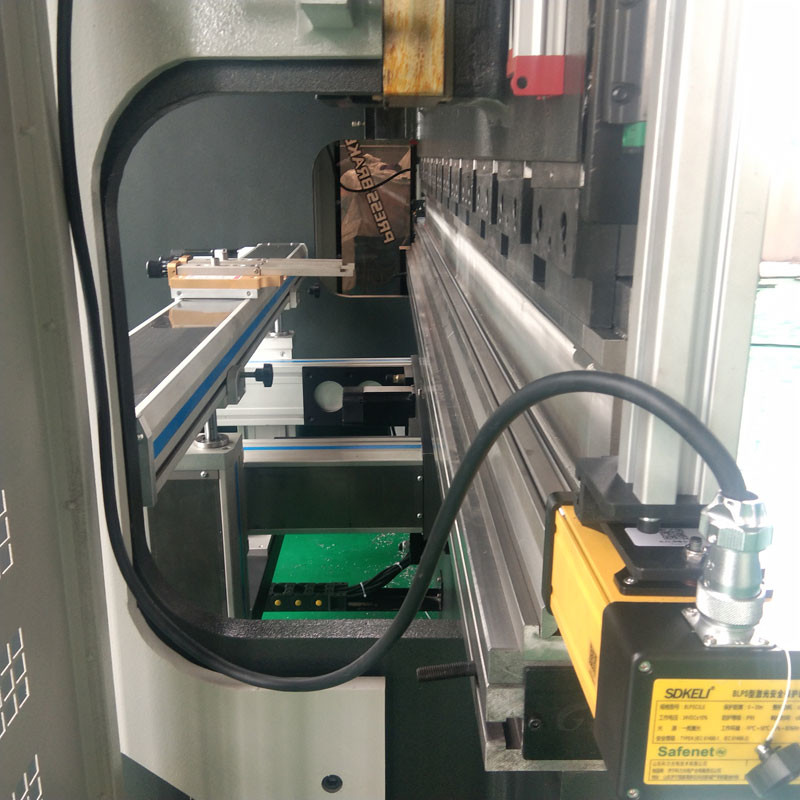

7. Power safeguard design,with light curtain protection,open door
power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact
design,small floor space,easy operation.
9. Providing comprehensive bending program for all press
brake,shearing machine user.
10. Replaceable worktable and the upper and lower mound,no
welding,forging and precision grinding.
11. Thickening the slider and the vertical plate, to ensure the
stability of the machine tool and reduce the elasticity.
12. Rational layout of the oil pipeline design, to prevent the oil
temperature rise quickly.
13. The similarity of images and shipping machine can reach 99.5%.
14. In time fast delivery.
Details:

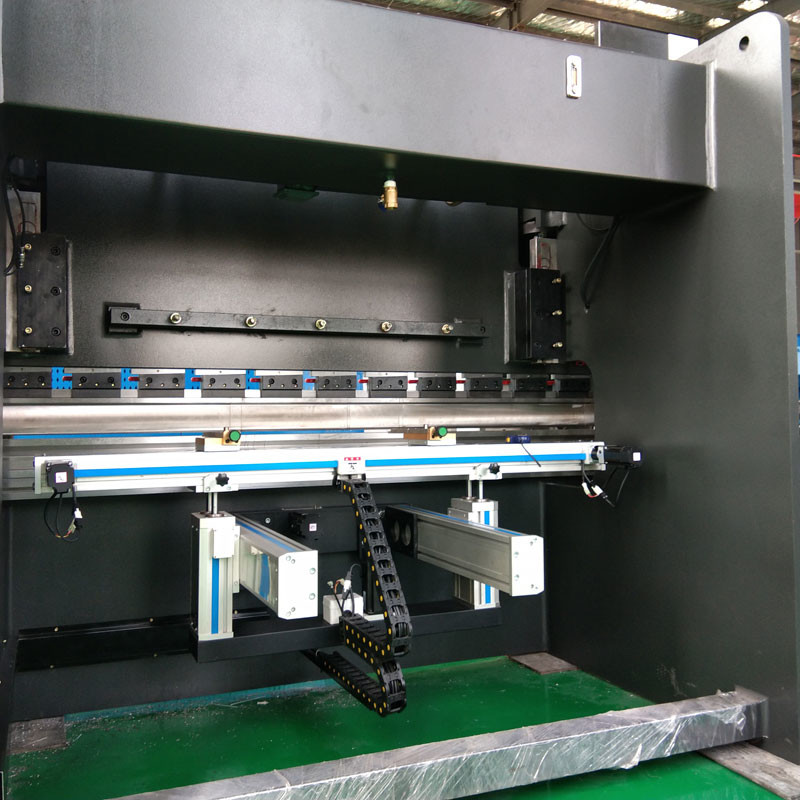

Backgauge
6+1 Axis CNC Backgauge ,including the (Y1 , Y2 , Z1 , Z2 , X ,R , +
crowing )
the fine adjustment with high accuracy up to ± 0.02mm
Packing Detail:
☂ Each Press brake with plastic film package first, then placed in
a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to
the harbor terminal.At the dock we pack the goods in containers and
ship them abroad.
For more information, please contact me (^o^)/~
