    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-80T/3200
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box

    High Precision Custom Mold TP10S 80T 3200MM Hydraulic Press Brakes Machine For Iron Box
    NC Press brake series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box


    Details:

    TP10S CNC Controller
    1. 10inch TFT 256K color touch screen
    2. The standard Y X axis servo motor
    3. Support angle programming, system automatically calculate depth
    4. Slider (Y axis) position control, position control of rear stopper (X axis)
    5. 220 programs, each program 24 steps
    6. Mataching support X2, R1, R2, Z1, Z2


    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box

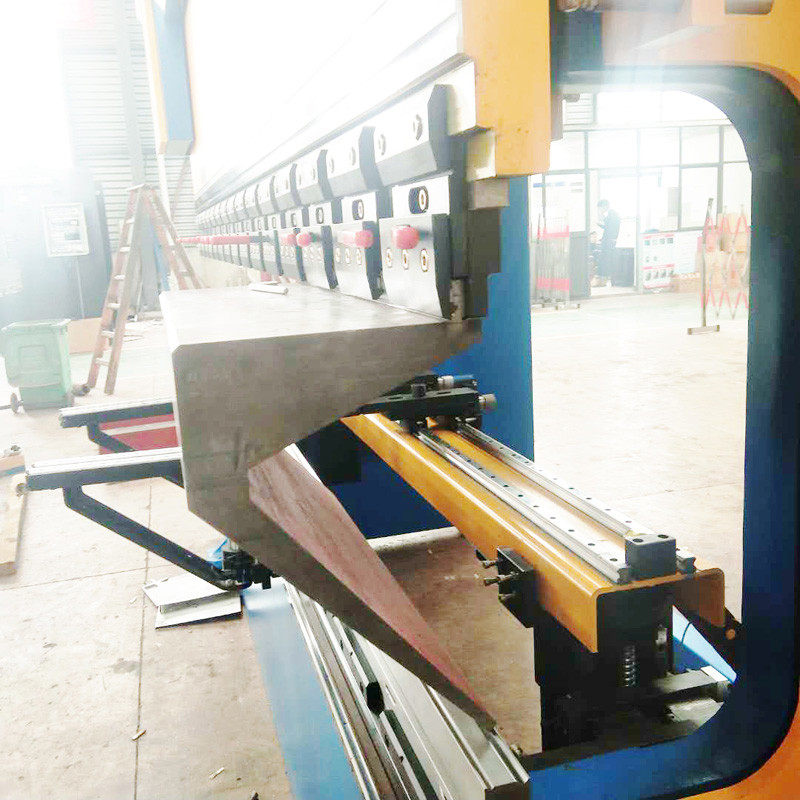

    Press Brake Tooling-- Custom Tooling

    Press Brake toolings are made from 40CrMo Materials with destiny up to 52 degrees to ensure die service life, This style is specially customized according to customer's requirements.


    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box


    Fast Clampings
    Standard double V lower die with different size and various shaped slots for choice ,convenient for exchanging dies,capable for bending regular plates, with high cost performance CNC double-V die workbench,convenient for installation of segmented dies

    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box


    Front Supportor
    Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards


    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box
    Ball Screw and Linear Guide
    Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.
    2+1 Axis Electric control

    High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box
