    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-160T/3200
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

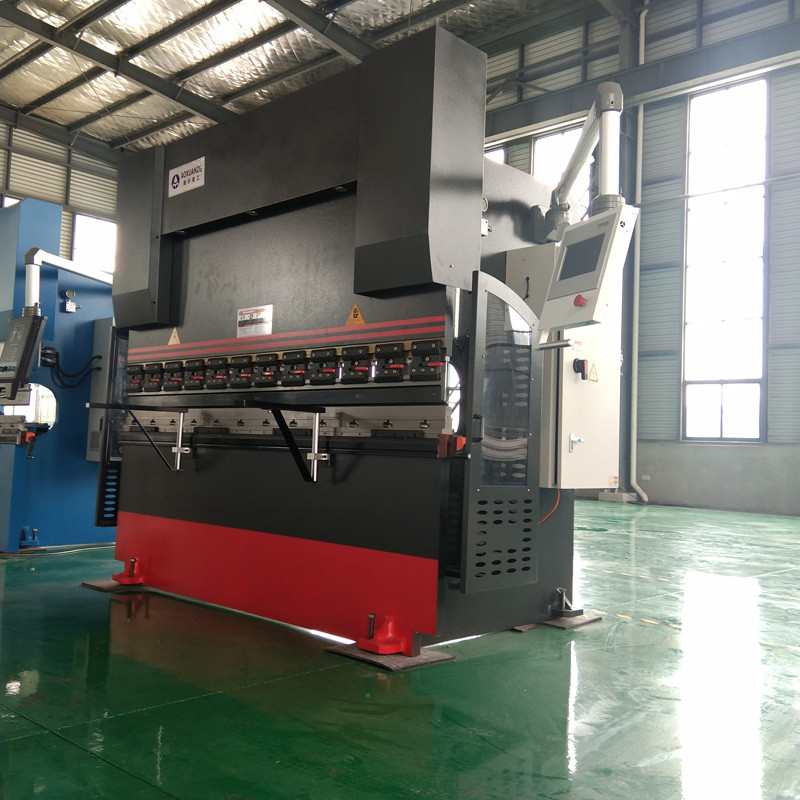

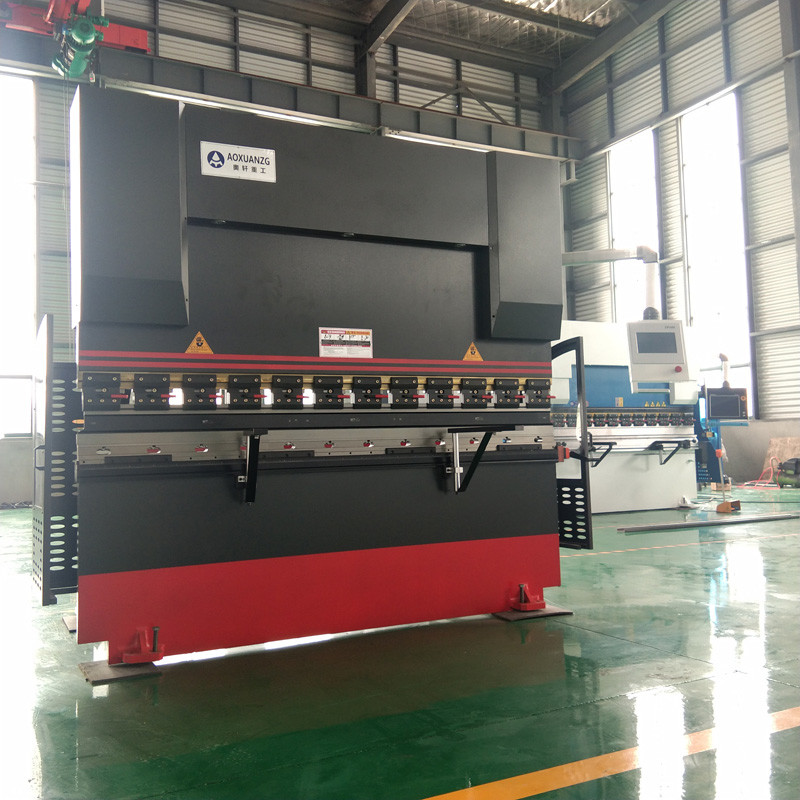

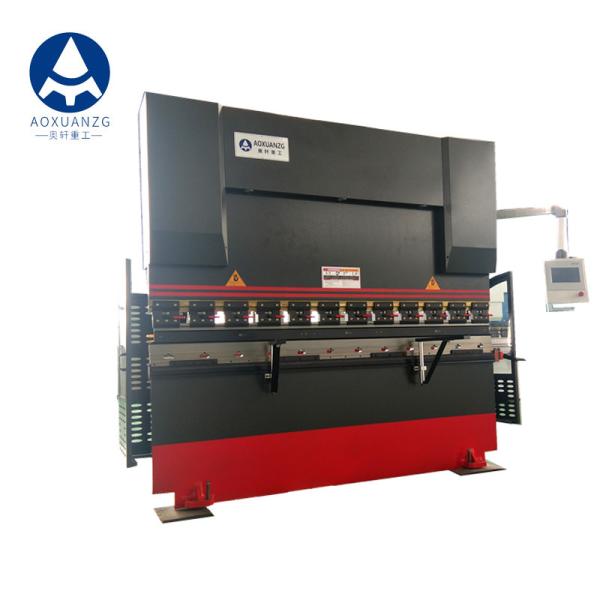

    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold

    TP10S 160T 3200MM CNC Hydraulic Sheet Metal Bending Machine With Custom Mold
    CNC Press brake series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold


    Details:

    TP10S CNC Controller
    1. 10inch TFT 256K color touch screen
    2. The standard Y X axis servo motor
    3. Support angle programming, system automatically calculate depth
    4. Slider (Y axis) position control, position control of rear stopper (X axis)
    5. 220 programs, each program 24 steps
    6. Mataching support X2, R1, R2, Z1, Z2


    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold


    Press Brake Tooling-- Custom Tooling

    Press Brake toolings are made from 40CrMo Materials with destiny up to 52 degrees to ensure die service life, This style is specially customized according to customer's requirements.


    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold

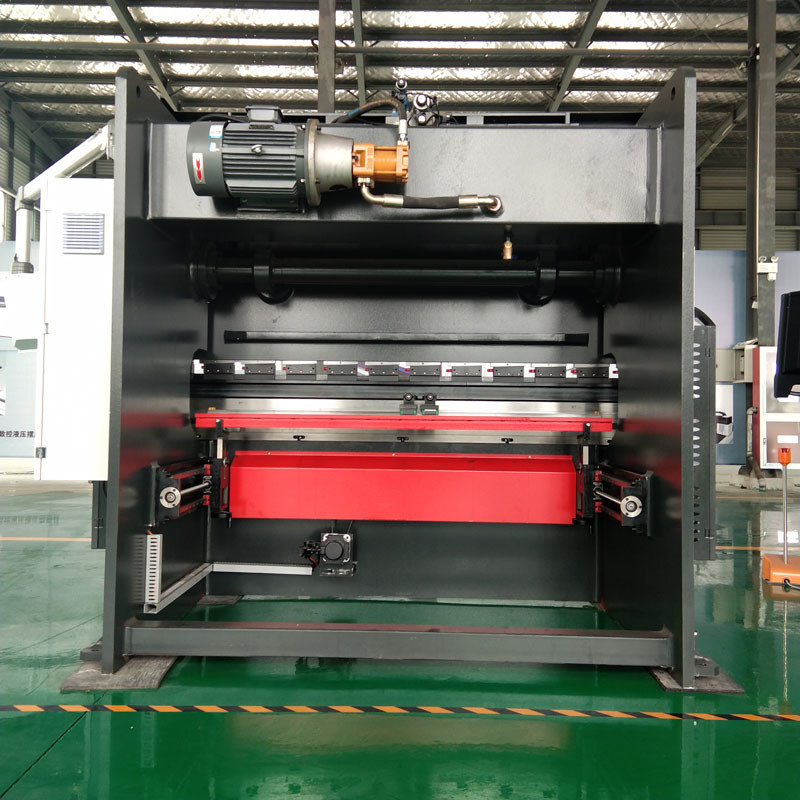

    Backgauge
    The Press Brake Backgauge plays an important in the machine’s everyday use press brake are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.


    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold

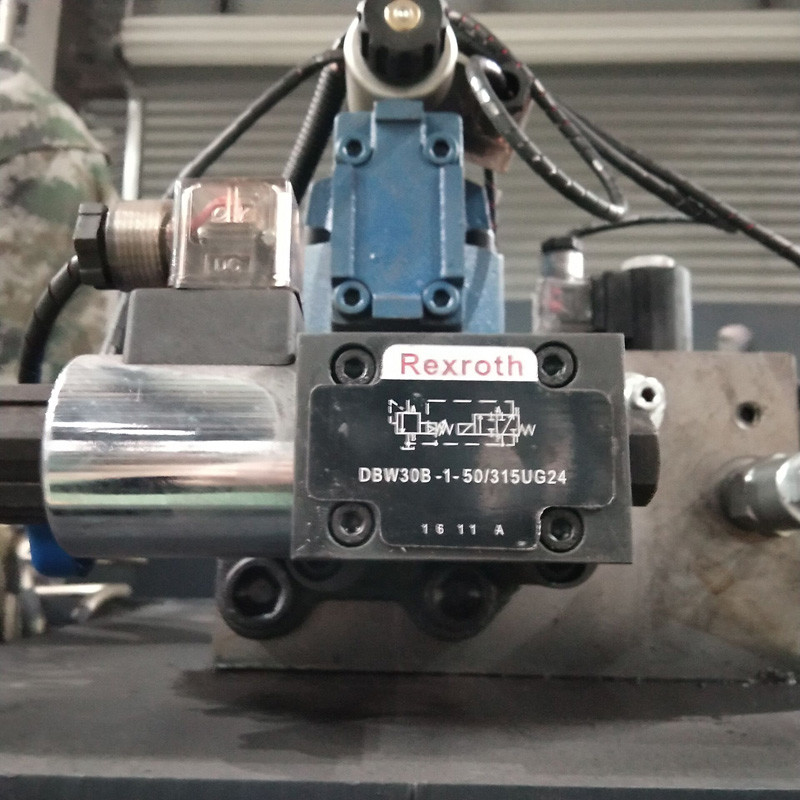

    Valve
    Germany Bosch Rexroth integrated hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid


    3200MM 160 Ton Hydraulic Press Metal Bender TP10S CNC With Custom Mold


    For more information, please contact me (^o^)/~
