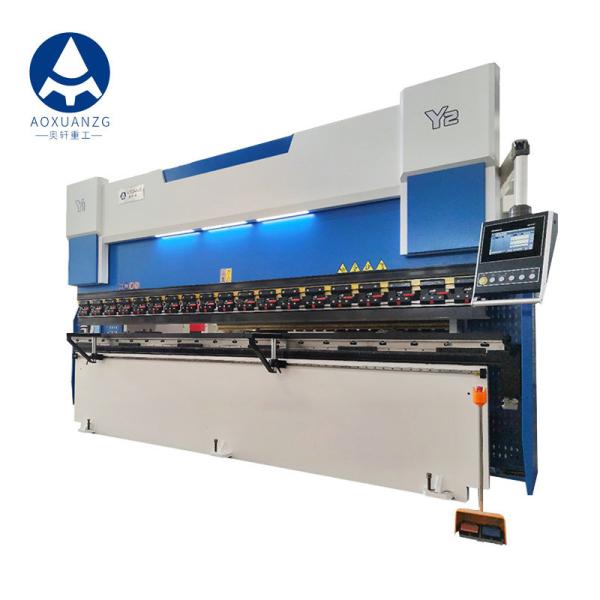

6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine

    Buy cheap 6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine from wholesalers

    Buy cheap 6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine from wholesalers
    • Buy cheap 6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine from wholesalers
    • Buy cheap 6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine from wholesalers
    • Buy cheap 6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine from wholesalers

    6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-160T/4000
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine

    Famous Brand Delem DA53T Servo Control CNC Electro - Hydraulic Bending Machine
    CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150

    6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine


    Details:

    Spain FAGOR Grating Ruler
    Slider position signal is feedbacked to controller by spain FAGOR Grating ruler, then the CNC Controller adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2) running on the same frenquency ,maintaining the parallel state of the worktable

    6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine


    Motor
    Brand: Siemens Germany

    Original: Germany
    All press brake motor original from Siemens Germany. Our bending machine warranty is 2 years.

    6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine


    Ball Screw and Linear Guide
    Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.

    6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine
