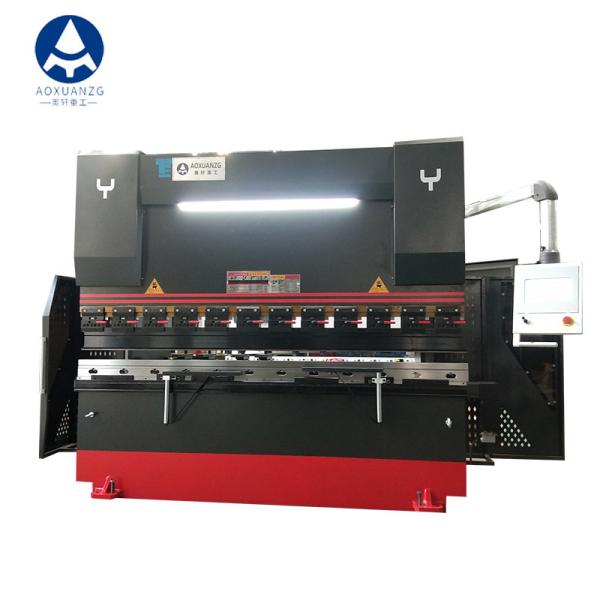

3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine

    Buy cheap 3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine from wholesalers

    Buy cheap 3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine from wholesalers
    • Buy cheap 3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine from wholesalers
    • Buy cheap 3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine from wholesalers

    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-300T/3200
    Certification : CE
    Price : $27298-$28956/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine

    WC67K Series Metal Plate Sheet CNC Hydraulic Iron Sheet Press Brake Folding Machine

    Main Features:


    1. Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
    2. The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions od stopper and gliding block, as well prccedures and paremeters.
    3. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.


    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine
    The standard cofiguration:
    RV reducer motor working table compensation (Optional)
    Compensation device on workbench (Optional
    Quick mold clamping device
    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150


    Certifications:
    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine

    Our Service
    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
    * Sample testing support.
    In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
    After-sales.
    * We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
    to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.
    Our Company:

    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine



    Customer & EXPO:
    3000KN 19kw Hydraulic CNC Press Brake WC67K Plate Sheet Iron Sheet Folding Machine
    FAQ:
    1.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
    ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Africa.

    2. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
    would keep you updated of production details of emails and photos.

    3. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
    like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

    4. Payment terms? T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, res
    t 70%paid before shipment.

    5.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
    ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.
