    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-100T/4000
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S

    Netherlands Controller Delem DA52S Electric Hydraulic Press Brake With Electric Compensation
    ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
    CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150

    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52SElectric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S


    Details:


    DA52S Controller
    1. Quick, one page programming
    2. Hotkey navigation
    3. 7" widescreen color TFT
    4. Up to 4 axis
    5. Crowning control
    6. Tool/material/product library
    7. USB, peripheral interfacing
    8. Advanced Y-axis control algorithms for closed loop as well as open loop valves
    9. Panel based controller with optional housing.


    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S


    Front Supportor
    Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards


    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S


    Electric compensation

    Through compensation, the angle of the workpiece is prevented from increasing in the full length range, the angle and linear accuracy of the bent workpiece are effectively improved.


    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S

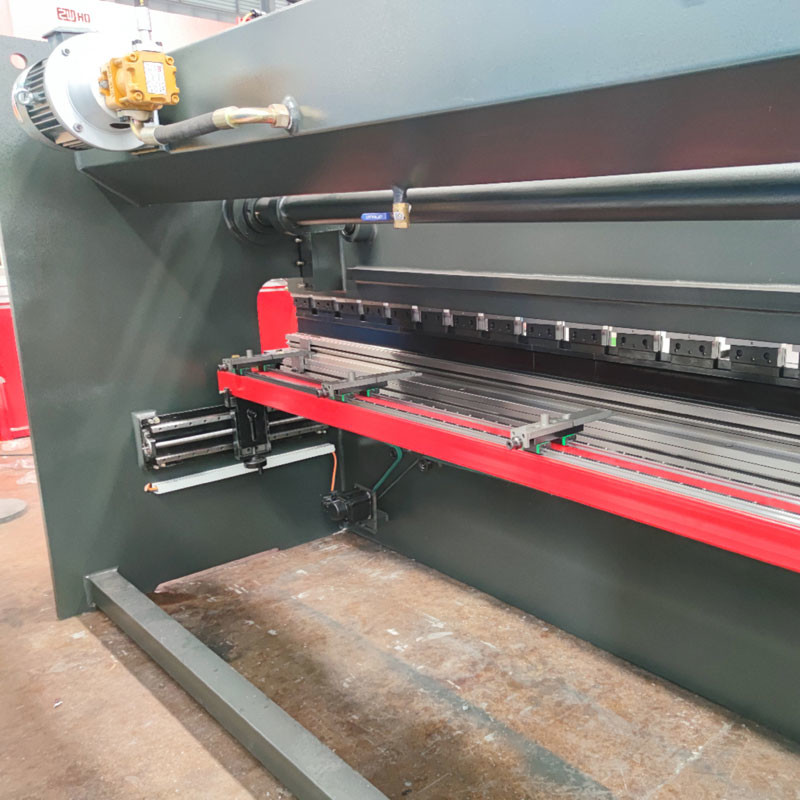

    Ball Screw and Linear Guide
    Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.


    Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52SElectric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S
