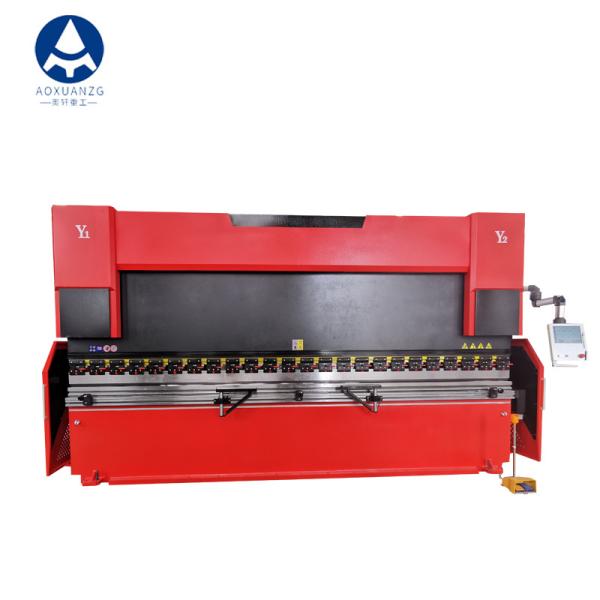

Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN

    Buy cheap Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN from wholesalers

    Buy cheap Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN from wholesalers
    • Buy cheap Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN from wholesalers
    • Buy cheap Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN from wholesalers

    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-125T/4000
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN

    Factory Price Fast Cybtouch 12 Controller Press Brake Machine / Folded Bender

    ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
    CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN
    Main configuration list

    1
    NC Control system
    E21 E300 DA41 DA53S DA56S DA66T DA69T TP10S
    2
    Electrical components
    Schneider Electrical from French
    3
    Main Motor
    Siemens from Germany Brand
    4
    BackGauge & RAM Drive
    Inverter from Taiwan delta
    5
    Travel switch
    Schneider Electrical from French
    6
    Foot switch
    KACON from South Korea
    7
    Hydraulic System
    Bosch-Rexroth form Germany
    8
    Hydraulic Pump
    SUUNY or SAEMP form Taiwan
    9
    Sealing Element
    PARKER from U.S.A Brand
    10
    Tubing connector
    EMB form Germany Brand
    11
    Ball screw/ Polished rod
    HIWIN from TaiWan Brand

    Details:

    Hydraulic System
    Brand: Rexroth Germany
    Original: Germany
    Press brake Hydraulic system original from Rexroth Germany, which can make sure our bending machine in high quality.

    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN

    Gear PUMP
    Brand: Sunny USA
    Original: USA
    Press brake Gear Pump original from Sunny USA. All our bending machine components use world famous brand.

    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN


    Packing Detail:
    1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
    2. All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.
    3. The outmost is wooden case with fixed formwork.
    4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.


    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN
    For more information, please contact me (^o^)/~

    Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN
