DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard

    Buy cheap DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard from wholesalers

    Buy cheap DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard from wholesalers
    • Buy cheap DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard from wholesalers
    • Buy cheap DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard from wholesalers
    • Buy cheap DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard from wholesalers

    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-125T/3200
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard

    3 + 1 Axis DA53T 125T 3200mm Hydraulic Bender Press Brake Machine With Safety Guard
    CNC Press Brake
    The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150

    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard


    Details:


    All the components are from world Famous Brand:
    1) Hydraulic System: Bosch-Rexroth from Germany
    2) Hydraulic PUMP: Sunny USA
    3) Electrical Components: Schneider Electrical from France
    4) Main Motor: Siemens from Germany
    5) Ball screw/ Liner guide: HIWIN from Taiwan
    6)Seal/Guide Ring: VALQUA-JAPAN


    Delem DA53T

    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard


    Automatic electric compensation
    Brand: Aoxuanzg

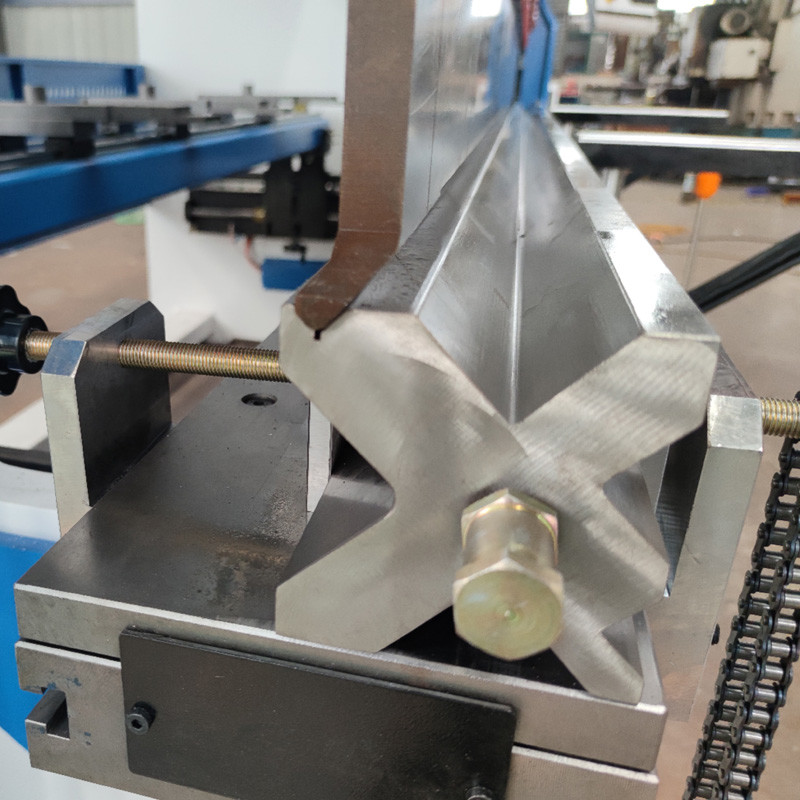

    Upper and lower dies(86°, R0.6mm, material: 42CrMo)


    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard


    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard

    Packing Detail:

    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


    Delivery Detail :
    ☀ Shipped in 30 days after payment.

    DA53T 4 Axis Press Brake 125T 3200mm Hydraulic CNC Sheet Metal Bender With Safety Guard
