Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge

    Buy cheap Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge from wholesalers

    Buy cheap Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge from wholesalers
    • Buy cheap Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge from wholesalers
    • Buy cheap Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge from wholesalers

    Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-80T/3200
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    Price : $14698-$15946/unit
    • Product Details
    • Company Profile

    Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge

    Cybelec 8 Controller 4 + 1 + 2 Axis Hydraulic Press Brake With Electric Backgauge
    CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150

    Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge


    Details:

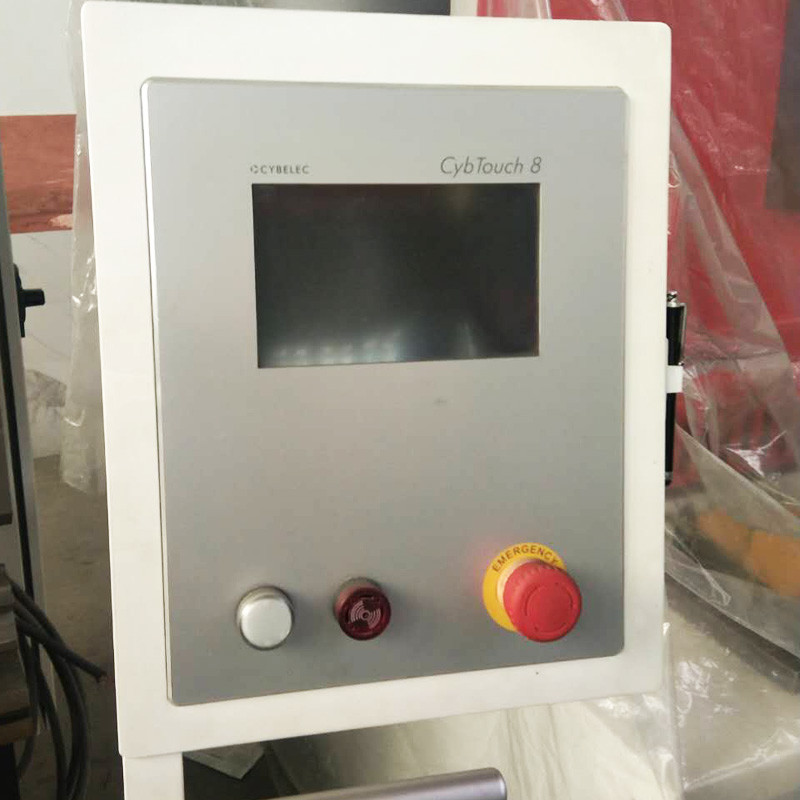

    CT8 Controller
    1. Large touch screen, bright color, high contrast.
    2. Convenient interface, clear display and large icon buttons.
    3. Visual, friendly and easy to operate man-machine interface.
    4. Perfect programming can improve the efficiency of batch multi-step bending.
    5.One-step bending of the page is very convenient.


    Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge

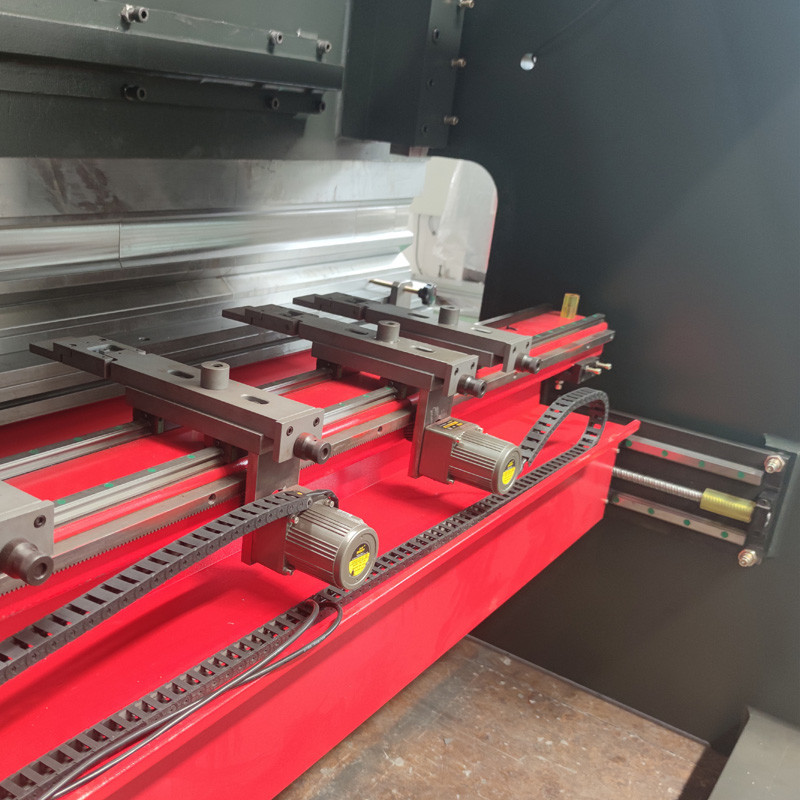

    Ball Screw and Linear Guide
    Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.


    Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge


    Electric Components
    Brand: Schneider France
    Original: France
    All press brake electrical components original from Schneider France. Also our machine use frequency inverter.

    Cybelec 8 Metal Hydraulic CNC Press Brake 4 + 1 + 2 Axis With Electric Backgauge

    For more information, please contact me (^o^)/~
