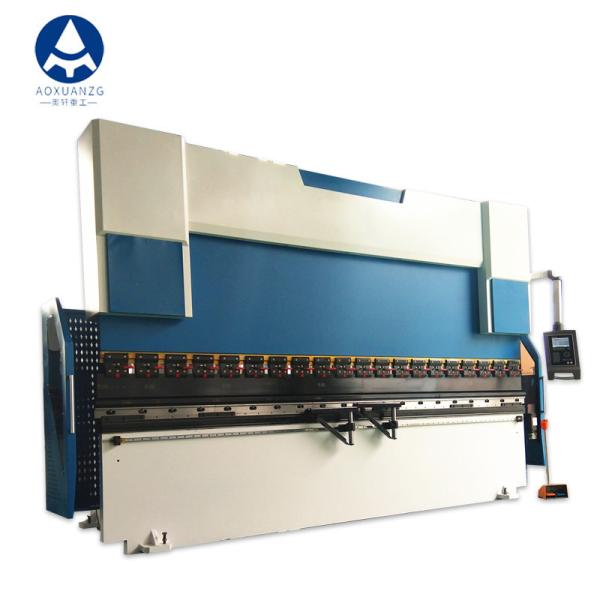

    Hydraulic Tube Aluminium Sheet Bending Machine 100T 4000MM With Schneider Components

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-100T/4000
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Hydraulic Tube Aluminium Sheet Bending Machine 100T 4000MM With Schneider Components

    Fast Clamp DA52S Hydraulic Bending Machine With Schneider France Electric Components
    ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
    CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150

    Hydraulic Tube Aluminium Sheet Bending Machine 100T 4000MM With Schneider Components


    Details:


    DA52S Controller
    1. Quick, one page programming
    2. Hotkey navigation
    3. 7" widescreen color TFT
    4. Up to 4 axis
    5. Crowning control
    6. Tool/material/product library
    7. USB, peripheral interfacing
    8. Advanced Y-axis control algorithms for closed loop as well as open loop valves
    9. Panel based controller with optional housing.


    Hydraulic Tube Aluminium Sheet Bending Machine 100T 4000MM With Schneider Components


    CNC Backgauge
    The Press Brake Backgauge plays an important in the machine’s everyday use press brake are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.


    Hydraulic Tube Aluminium Sheet Bending Machine 100T 4000MM With Schneider Components


    Standard Upper tools and Down die
    Brand: Aoxuanzg
    Press brake Upper Bending tooling adopts segmented tooling. we can sperate the whole length into pieces according to your request.

    Hydraulic Tube Aluminium Sheet Bending Machine 100T 4000MM With Schneider Components


    For more information, please contact me (^o^)/~
