    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WE67K-160T/3200
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine

    High Quality DA58T CNC Hydraulic Press Brake Bending Machine On Sale
    CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

    Technical Parameters:


    ModelNorminal pressure (KN)Worktable Length (mm)Columns Distance (mm)Throat Depth (mm)Slider Stroke(mm)Max Open hight (mm)Main motor power(KW)Crowing CylindersControl AxesX axis stroke(mm)X axis speed(mm/s)Dimension
    LxWxH (mm)
    WC67Y/K-63/2500630250019003501703805.523+15002003100×1450×2050
    WC67Y/K-80/3200800320027003501703807.533+15002003500×1550×2100
    WC67Y/K-100/32001000320027004002004207.533+15002003500×1580×2400
    WC67Y/K-160/32001600320027004002004201133+15002003500×1650×2550
    WC67Y/K-200/32002000320027004002004201533+15002003500×1680×2550
    WC67Y/K-250/32002500320027004002004201533+15002003500×1700×2600
    WC67Y/K-320/32003200320027004002004202233+15002003500×1800×2730
    WC67Y/K-400/40004000400035005003206003043+15002004300×2450×3500
    WC67Y/K-500/500050005000390050032060037/3+18002005400×2810×4300
    WC67Y/K-500/600050006000490050032060037/3+18002006500×2810×4300
    WC67Y/K-500/700050007000490050032060037/3+18002007500×2810×4900
    WC67Y/K-600/500060005000390050032060045/3+18002005500×2910×4900
    WC67Y/K-600/600060006000490050032060045/3+18002006500×2910×5100
    WC67Y/K-600/700060007000590050032060045/3+18002007500×2910×5200
    WC67Y/K-800/600080006000490060040060055/3+18002006500×2750 ×5300
    WC67Y/K-800/800080008000690060040060055/3+18002008500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×37/3+18002006500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×37/3+18002008500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×37/3+180020010500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×37/3+110002006500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×37/3+110002008500×3100×7150

    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine


    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine


    Safety Equipment:
    Safety Standards(2006/42/EC)
    1.EN 12622:2009+a1:2003
    2.EN ISO 12100:20110
    3.EN 60204-1:2006+A1:2009


    Details:

    Electric Components
    Brand: Schneider France
    Original: France
    All press brake electrical components original from Schneider France. Also our machine use frequency inverter.


    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine


    Backgauge
    4+1 Axis CNC Backgauge ,including the (Y1 , Y2 ,X,R + crowing )
    the fine adjustment with high accuracy up to ± 0.02mm
    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine

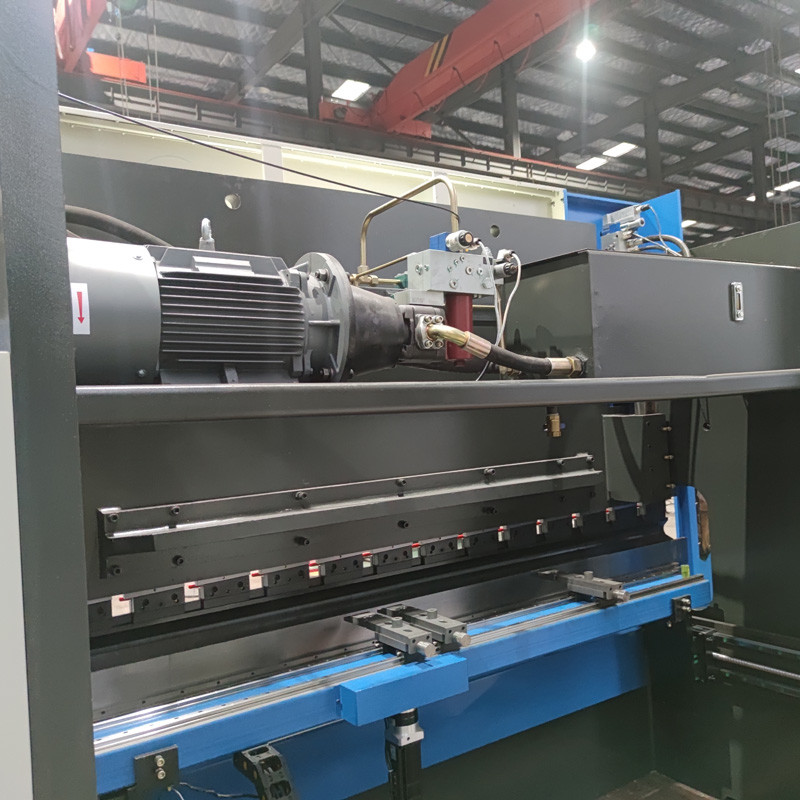

    Motor
    Brand: Siemens Germany

    Original: Germany
    All press brake motor original from Siemens Germany. Our bending machine warranty is 2 years.

    330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine
