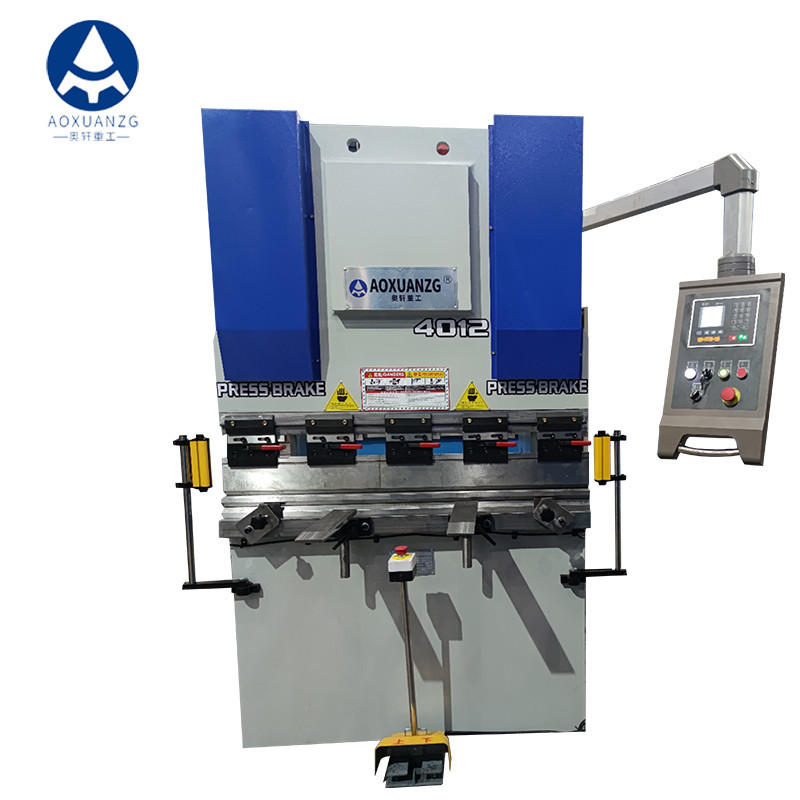

    K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-30T/1200
    Certification : CE
    Price : $5900-$6585/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder

    WC67Y/K-30t/1200 Hydraulic Bending& Folding Machine/CNC Torsion Bar Press Brake

    Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufa
    cturing, electricity poles, lamp posts,
    ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according
    to customers' different needs.

    Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake,
    large electro-hydraulic synchronization press brake Currently, our biggest press brake equipment is 1000T/10000, production for
    many years, and stable performance.


    K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder


    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    Packing Detail:
    Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
    and ship them abroad.
    Delivery Detail:
    Shipped in 30 days after payment
