Mini Hydraulic Torsion Bar Press Brake Bending Machine NC Control Estun E21

Ask Lasest Price
Brand Name :	AOXUANZG
Model Number :	WC67Y-40T/2500
Certification :	CE
Price :	$5000-$7385/unit
Payment Terms :	L/C, T/T, Western Union, D/P, D/A
Supply Ability :	500sets/Year
Delivery Time :	20-30 days

Add to Cart

Product Details
Company Profile

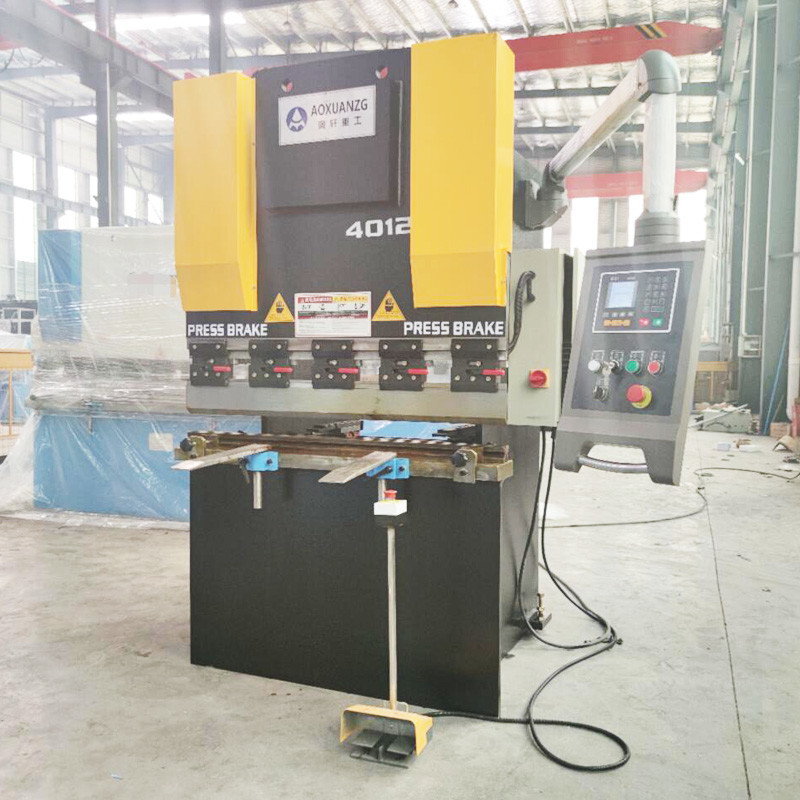

Mini Hydraulic Torsion Bar Press Brake Bending Machine NC Control Estun E21

Mini Hydraulic NC Control Estun E21 Torsion Bar Press Brake Machine

Press brake

(1) The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical compensation device, to achieve precision bending. (2) Hydraulic synchronous control and NC or CNC programmable logic controller ensure accurate repeatability and ease use. (3) Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way. (4) X axis , Y axis , Z axis ,R axis and V axis realize accurate positioning function by frequency converter through NC or CNC system programming control. (5) Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation. (6) The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation.

Technical Parameters:

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Mini Hydraulic Torsion Bar Press Brake Bending Machine NC Control Estun E21

Main configuration list
1	NC Control system	E21 E300 DA41 DA53S DA56S DA66T DA69T
2	Electrical components	Schneider Electrical from French
3	Main Motor	Siemens from Germany Brand
4	BackGauge & RAM Drive	Inverter from Taiwan delta
5	Travel switch	Schneider Electrical from French
6	Foot switch	KACON from South Korea
7	Hydraulic System	Bosch-Rexroth form Germany
8	Hydraulic Pump	SUUNY or SAEMP form Taiwan
9	Sealing Element	PARKER from U.S.A Brand
10	Tubing connector	EMB form Germany Brand
11	Ball screw/ Polished rod	HIWIN from TaiWan Brand
Safety Configuration
1	Warning of high oil temperature	■Yes □No
2	High oil pressure protection	■Yes □No
3	Motor overload protection	■Yes □No
4	Oil inlet filter jammed warning	■Yes □No
5	Laser Safety Protection	□Yes ■No
6	Left & Right side protection	■Yes □No
7	Electricity leakage protection	■Yes □No
8	Safety Relay	□Yes ■No
9	Monitoring and Redundant valves	□Yes ■No
10	Safety standards	■CE □CSA □NR-12 □OSHA

For more information, please contact me (^o^)/~

Mini Hydraulic Torsion Bar Press Brake Bending Machine NC Control Estun E21
