    Air Gantry Type CNC Plasma Cutting Machines 8500w Starfire Control With Huayuan Power

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : 3015 160A
    Certification : CE
    Price : $5000-$18000/unite
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

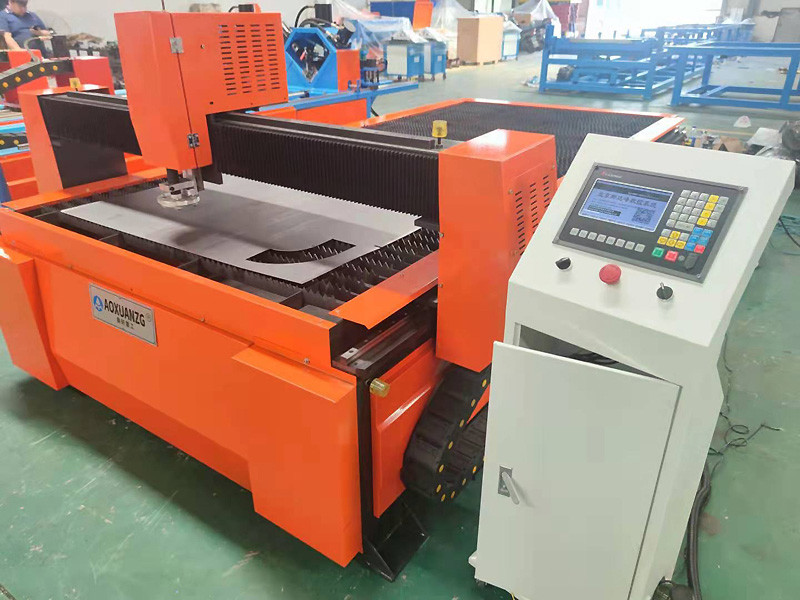

    Air Gantry Type CNC Plasma Cutting Machines 8500w Starfire Control With Huayuan Power

    High Quality Starfire Control System CNC 3015 Plasma Cutting Machine With Huayuan Power


    Application Materials:
    Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc.


    Application Industry:
    Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military-industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment, etc.


    Production Features
    1. The machine adopts the moving gantry structure, imports high precision screw and linear guide, smooth transmission, high precision.
    2. Bed and beam, the table are using the overall welding structure, according to large manufacture standard , first stress annealing and second rough processing , finally vibration aging treatment, can completely eliminate the welding and processing stress, to maintain high strength, high precision, can be maintained for more than 20 years without deformation.
    3. X, Y axis are imported from Japan servo motor, high precision, high speed, high torque, high inertia, stable and durable performance. To ensure that the machine's high speed and acceleration.


    Technical parameter:


    Model1530 160A Plasma cutting machine (high configuration)
    X,Y working area1500*3000mm
    Z working area150mm
    Packing dimension2280mm*3850mm*1850mm
    Lathe bedVery thick steel structure
    Machine Power8.5kw
    Working voltage380V three phase 60hz
    Reposition precision0.02mm
    Processing precision0.1mm
    Maximum cutting speed12000mm/min
    Torch Height control modeAutomatic
    Quality cutting thicknessMax 25mm steel ,12.5mm stainless steel
    Maximum Cutting thicknessMax 35mm steel, 17.5mm stainless steel
    Plasma power supplyLGK160A
    Control systemSTARfire
    MotorsStepper motor
    SoftwareStarcam
    Weight1600KG
    Plasma Air PressureMax.0.8Mpa
    Working Temperature-10°C-60°C. Relative Humidity, 0-95%.
    LCD Display Dimension7 Inches

    Air Gantry Type CNC Plasma Cutting Machines 8500w Starfire Control With Huayuan Power


    Feature of plasma cutting machine:
    ♦ working area: 1500*3000mm
    ♦ Heavy duty thicken machine body
    ♦ 200A Hypertherm plasma power
    ♦ Stepper motor and Leadshine Driver
    ♦ Start Controller system from Beijing
    ♦ Automatic Arc Pressure adjustable
    ♦ HIWIN Linear Guide Rail
    ♦ Helical Rack and Pinion
    ♦ Fast Cam software
    ♦ Big size rotary system in machine side
    ♦ warranty : 1.5 years


    Details:


    Independent control cabinet
    Using Beijing Starfire control system.
    The interface is clear and easy to understand, easy to operate, automatic typesetting and blanking


    StarCAM Nesting software, rich shapes and simple operation
    It can cut any plane shape part graphics formed by straight lines and arcs. You can program directly on the machine. You can also draw CAD on a computer or using ready-made CAD files, it can be directly converted into a code program file through the included STARCAM software and transferred to the machine through the USB interface to realize cutting.


    Machine Table
    The industry special saw blade machine table. Machine weight:1500Kg


    Air Gantry Type CNC Plasma Cutting Machines 8500w Starfire Control With Huayuan Power


    Standard cutting head
    Equipped with exclusive red light positioning, and high-sensitivity electronic anti-collision gun head.


    Japan's famous servo system can detect the location and enjoys high precision, wide speed range, and short acceleration time.


    Air Gantry Type CNC Plasma Cutting Machines 8500w Starfire Control With Huayuan Power


    Plasma power supply
    Using China's well-known brand Huayuan industrial-grade plasma power supply, precise cutting, no burrs, small bevel, energy saving and low consumption, more stable performance


    Air Gantry Type CNC Plasma Cutting Machines 8500w Starfire Control With Huayuan Power


    For more information, please contact me (^o^)/~
