    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : QC11K-6*1600
    Certification : CE
    Price : $6300-$6900/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

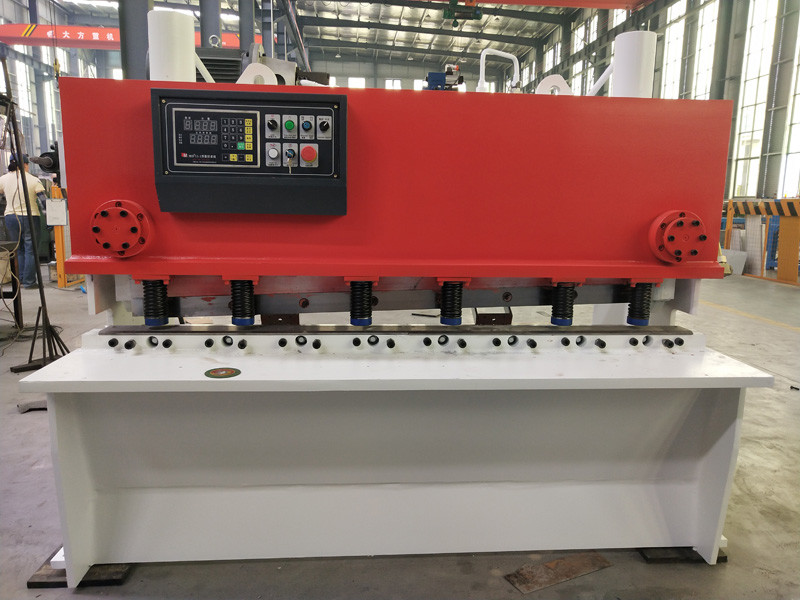

    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm

    Small NC MD11 Controller Hydraulic Guillotine Shearing Machine For Metal Plate

    The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.


    Technical Parameters:

    ModelThickness(mm)Cutting Length(mm)Cutting Angle(°)Material Strength (KN/CM)Stroke (times/min)Power(kw)Dimension(mm)
    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200


    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm


    Details:


    CNC Control system
    MD11 Control system, ecnomic price with easy operating, our standard control system. E21S,DAC310, DAC360 control system can be optional


    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm


    Hydraulic system
    Brand: Bosch-Rextith
    Original: Germany
    Domestic famous valve, make sure the best quality of the machine


    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm

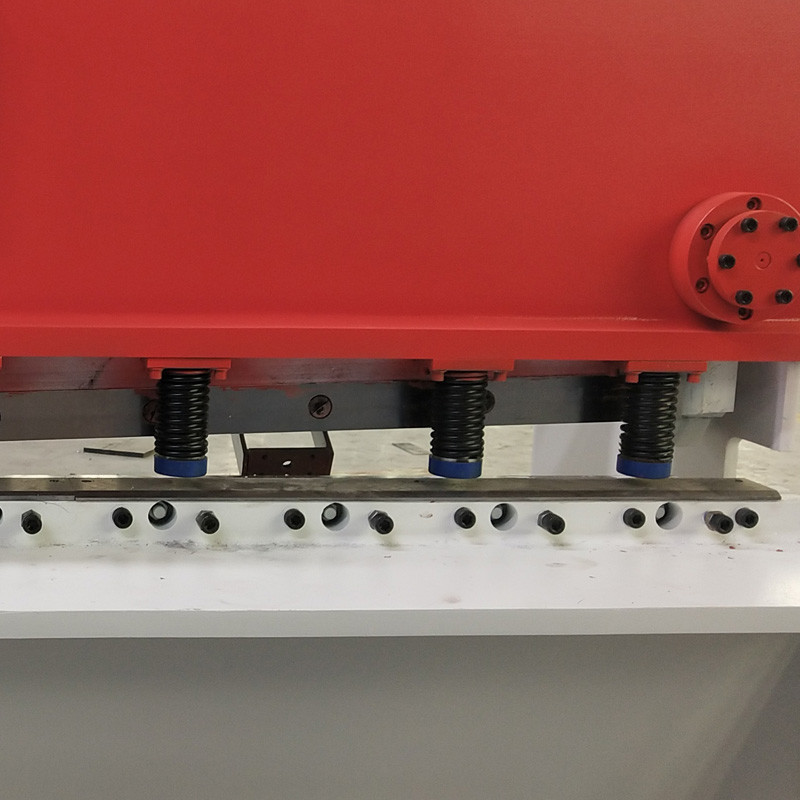

    Built- in Spring Pressure Cylinder
    Its lower end equpped with special material gasket,avoiding aluminium alloy or other softor materials being imprinted.


    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm


    Back gauge
    Brand: Aoxuanzg
    Original: China
    With higher precision, to ensure the positioning precision. It brings the higher accuracy of processing.


    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm


    Siemens Motor
    Using Siemens Motor guarantees the machine service life,and reduce the noise when working


    NC Small Sheet Metal Guillotine MD11 Controller Shear Metal Cutting Machine 6mm*1600mm


    For more information, please contact me (^o^)/~
