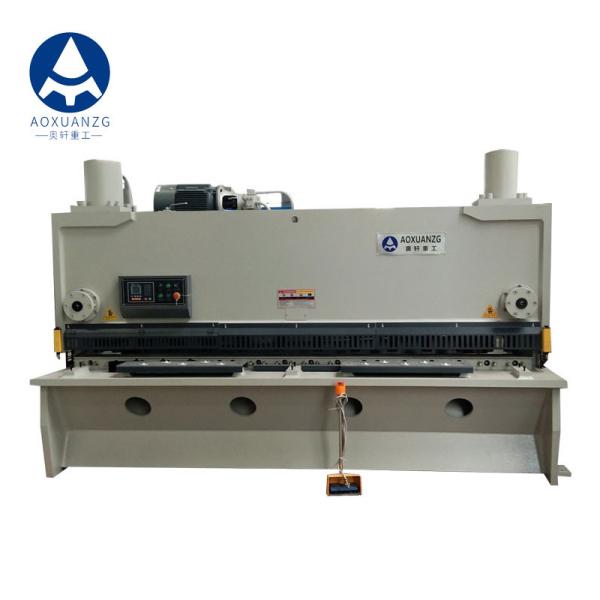

    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : QC11K-10*3200
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

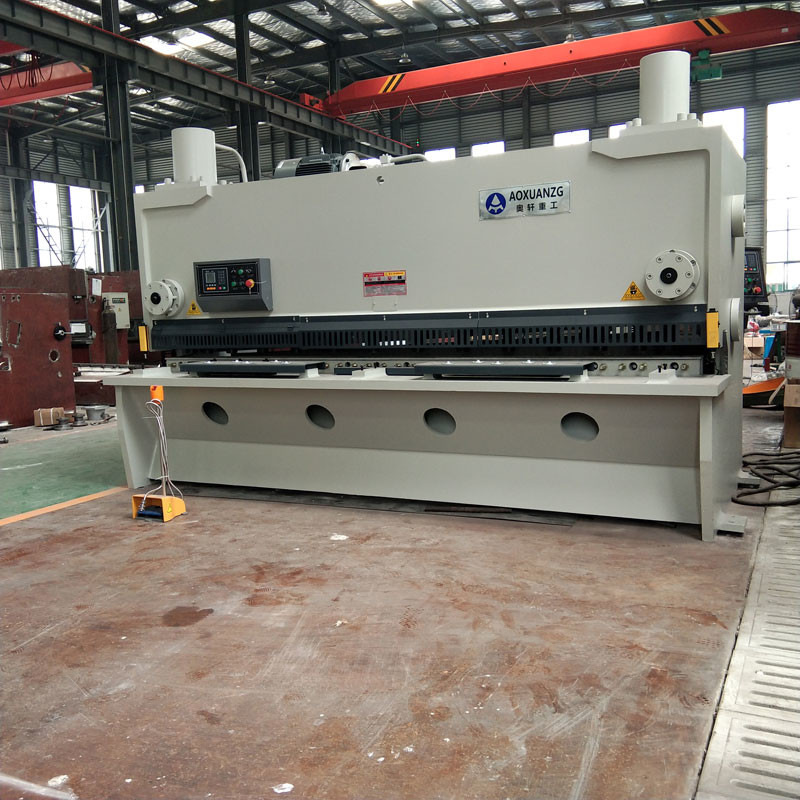

    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s

    Aoxuanzg Incision Smooth 10*3200MM Hydraulic Guillotine Shears With E21s

    Product Application
    1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
    2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,Germany,
    3. The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
    4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
    5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
    6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.


    Technical Parameters:

    ModelThickness(mm)Cutting Length(mm)Cutting Angle(°)Material Strength (KN/CM)Stroke (times/min)Power(kw)Dimension(mm)
    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200

    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s


    Standard Accessories

    1. E21S-Estun: digital monitor to display the position of the back gauge
    2. REXROTH, Germany hydraulic system
    3. SUNNY, USA oil pump with slide-in pipes joints
    4. Back gauge is moved with T-screw shaft, guided by rod-shaft and driven by AC motor
    5. Motorized adjustment of blade gap and shearing angle
    6. Hydraulic hold downs with sequential operation
    7. Moveable foot switch
    8. Finger guard
    9. Interchangeable blades with four cutting edges
    10. One set of standard blade (upper and lower) materials is 6CrW2Si
    11. Front support arms with length 1000mm (at least 3pcs)
    12. Ball worktable ,reduce the contact between sheet plate and machine work table
    13. Often-used internal hexagonal key spanner for adjusting blades
    14. Comprehensive instruction & maintenance manual


    Photoelectric protection

    Accidental contact stop function, protect operator's life safety.

    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s


    France Schneider electrics
    Stable France Schneider electrics, perform very well


    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s


    Optional Configuration
    Pneumatic back supporting device keeps thin sheet,cutting workbench and back stopper parallel Pneumatic Back Supporter to ensure accurate cutig sixe, avoid the sheet devating designed position and extended parts saging.


    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s


    American Sunny Oil Pump
    Using USA Sunny oil pump guarantees the oil service life, and reduce the noise when working, provides great powerfor the hydraulic system


    11 Kw Sheet Hydraulic Guillotine Shearing Machine 10*3200MM With E21s


    For more information, please contact me (^o^)/~
