    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : QC11K-4*2500
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM

    Customize Appearance CNC E21s Controller 4*2500MM Hydraulic Guillotine Shearing Machine

    Product Application
    1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
    2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,Germany,
    3. The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
    4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
    5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
    6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.


    Technical Parameters:

    ModelThickness(mm)Cutting Length(mm)Cutting Angle(°)Material Strength (KN/CM)Stroke (times/min)Power(kw)Dimension(mm)
    4×2500425001°30’≤450105.53040*1610*1620
    4×3200432001°30’≤450105.53840*1610*1620
    4×4000440001°30’≤45085.54600*1700*1700
    4×6000460001°30’≤45057.56460*2100*3200
    6×2500625001°30’≤450107.53040*1610*1620
    6×3200632001°30’≤45097.53840*1610*1620
    6×4000640001°30’≤45087.54620*1750*1700
    6×5000650001°30’≤45067.55400*1750*1700
    6×6000660001°30’≤4505116480*2100*2300
    8×2500825001°30’≤450107.53040*1700*1700
    8×3200832001°30’≤45087.53860*1700*1700
    8×4000840001°30’≤45087.54640*1700*1700
    8×5000850001°30’≤45087.55400*2400*2000
    8×6000860001°30’≤4508116480*2100*2350
    10×25001025001°30’≤4509113040*1700*1700
    10×32001032001°30’≤4509113860*1700*1700
    10×40001040001°30’≤4508114650*2100*2000
    10×6000106000≤4505156500*2100*2300
    12×2500122500≤450918.53140*2150*2000
    12×3200123200≤450918.53880*2150*2000
    12×4000124000≤450818.54680*2150*2000
    12×5000125000≤450618.55900*2150*2000
    12×6000126000≤450518.56900*2600*2700
    12×8000128000≤450518.59000*3500*3500
    16×25001625002°30’≤450918.53140*2150*2000
    16×32001632002°30’≤450818.53880*2150*2000
    16×40001640002°30’≤450818.54650*2150*2200
    16×50001650002°30’≤450618.55900*2600*2700
    16×60001660002°30’≤4505226900*2700*2700
    16×80001680002°30’≤4505229000*3500*3500
    20×2500202500≤4508223440*2300*2500
    20×3200203200≤4508224150*2350*2700
    20×4000204000≤4505224850*2350*2700
    20×6000206000≤4504224850*2350*2700
    25×2500252500≤4508373200*2700*2900
    25×3200253200≤4505374200*2700*2900
    30×2500302500≤4504373300*2900*2900
    30×32003032003°30’≤4504404200*2900*2900
    40×2500402500≤4503753200*3300*3000
    40×3200403200≤4503904300*3300*3200


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM


    Details:


    Estun E21s

    1. Backgauge and block control
    2. Control for general AC motors, frequency inverter
    3. Intelligent positioning
    4. Stock counter
    5. Holding/decompression time setting
    6. Program memory of up to 40 programs
    7. Up to 25 steps per program
    8. One side positioning
    9. Retract function
    10. One key backup/restore of parameters
    11. mm/inch
    12. Chinese /English


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM


    Back gauge
    Brand: Aoxuanzg
    Original: China
    With higher precision, to ensure the positioning precision. It brings the higher accuracy of processing.


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM


    Built- in Spring Pressure Cylinder
    Its lower end equpped with special material gasket,avoiding aluminium alloy or other softor materials being imprinted.


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM

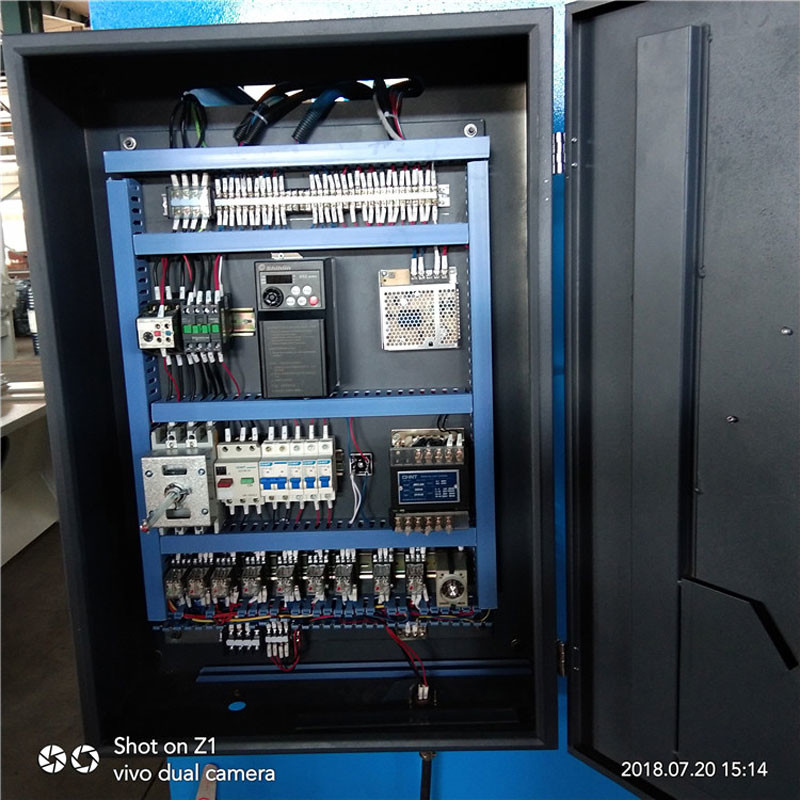

    Electrical system
    Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. Front Side Covers with safety switches, Back light safety guards,Foot pedal conforming to CE regulation.


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM


    Hydraulic system
    Brand: Bosch-Rextith
    Original: Germany
    Domestic famous valve, make sure the best quality of the machine


    Customize Industrial Hydraulic Guillotine Shearing Machine E21s Controller 4*2500MM
