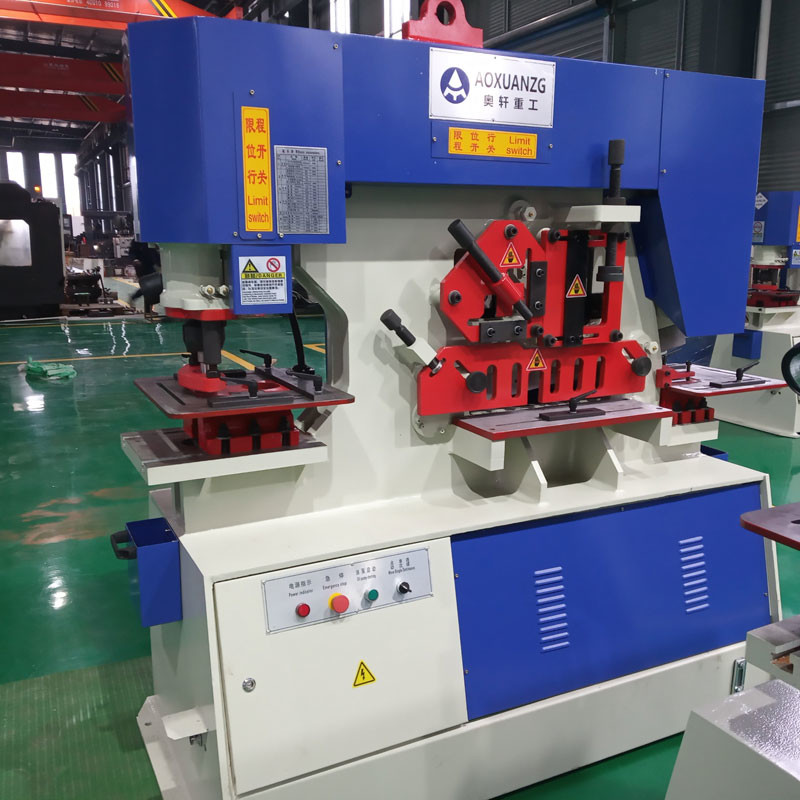

    65T Industrial Hydraulic Ironworker Machine Q35Y-16 For 16mm Steel Plate

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : Q35Y-16
    Certification : CE
    Price : $5800-$19800/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    65T Industrial Hydraulic Ironworker Machine Q35Y-16 For 16mm Steel Plate

    Q35Y-16 65T Hydraulic shearing and punching machine/hydraulic ironworker for 16mm steel plate


    * Aoxuan's Q35Y series industrial-grade hydraulic ironworker machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

    * The hydraulic ironworker machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.

    * Our hydraulic ironworker machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers' needs.

    * Optional tooling of hydraulic ironworker machine

    * Automatic Holding System: The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.

    * Temperature cooling system: When the hydraulic ironworker machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.


    Technical Parameters:
    ModelQ35Y-16Q35Y-20Q35Y-25Q35Y-30Q35Y-40Q35Y-60
    Puching pressure(T)60T100T120T160T250T315T
    Max cutting thickness of steel plates(mm)162025304060
    Material strength (N/mm²)≤450≤450≤450≤450≤450≤450
    Angel of shear (°)
    Flat bar shearing (T×W)(mm)16*250 8*40020*330 10*48025*330 16*60030*335 20*60040*330 20*700508300 30*750
    Max length of slinder strock(mm)80808080100100
    Trips frequency(times/min)11~2012~208~186~166~166~12
    Depth of throat (mm)300355400600600600
    Punch depth(mm)162025283540
    Max.punching diameter(㎜)283335384045
    Motor Power(KW)5.57.511111530
    Dimensions(L× W ×H)(mm)1780*920*17801952*920*19502355*1000*21502840*1200*23302940*1200*23303200*1440*2500


    65T Industrial Hydraulic Ironworker Machine Q35Y-16 For 16mm Steel Plate


    Details:
    Angle Station
    This station provides large capacity angle cutting at 90°and 45°. Angles between 45°and 90° can be achieved by first cutting at 90°and then flange trimming to the required angle in this shearing station.
    Flat cutting
    Positioning ruler on the worktable can control the cutting shape and cutting length with higher accuracy. The ironworker can cut small flat sheets. This function is same with shearing machine.
    65T Industrial Hydraulic Ironworker Machine Q35Y-16 For 16mm Steel Plate
    Punching Station
    The large punch bed area has a removable front block and is designed to give a very wide range of punching applications. A punch table with rules and guides for repetition work are fitted as the standard machine
    65T Industrial Hydraulic Ironworker Machine Q35Y-16 For 16mm Steel Plate
    65T Industrial Hydraulic Ironworker Machine Q35Y-16 For 16mm Steel Plate
    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging
    * Inquiry and consulting support.
    * Sample testing support.

    In-sales.
    * We will provide you with the latest progress in the product assembly, packaging and transportation.

    After-sale.
    * We will provide free accessories for the damage to non - human parts.
    * Training how to install the machine, training how to use the machine with video and so on
    * And our technical staff can go abroad to provide technical guidance.
