Multi Function Q35Y Hydraulic Iron Worker / Ironworker Machine /
Punching And Shearing Machine

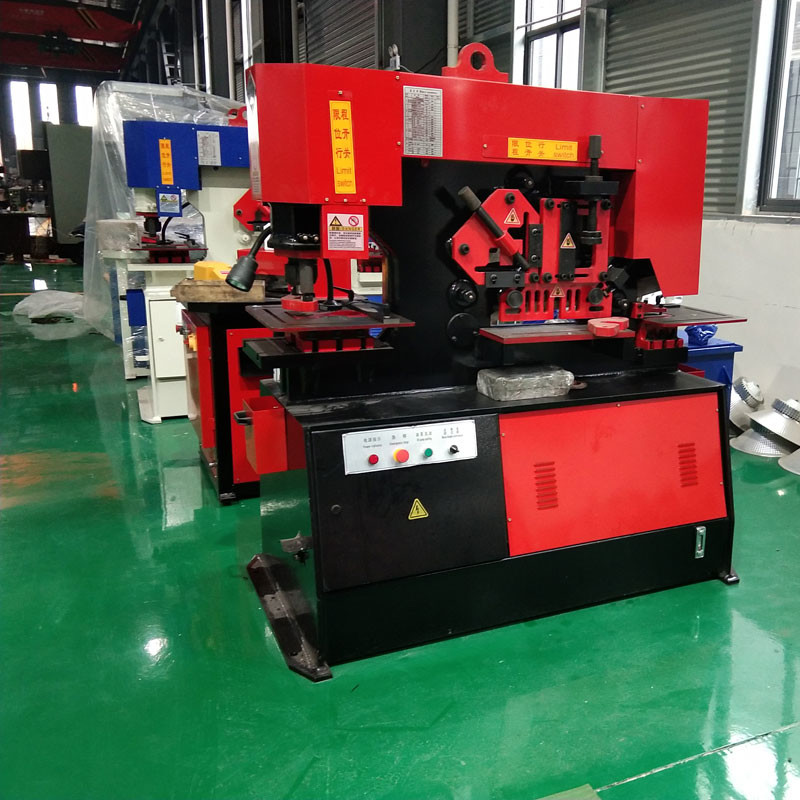

A. whole structure of the hydraulic iron worker :
1. Q35Y Series Hydraulic Iron Worker, Totally European design,The
machine are strong and easy to use machines which are able to can
cut and punch all kinds of materials such as plate, square bar,
angle, round bar, channel and so on.
2. Aoxuanzg Industrial hydraulic ironworkers have been designed and
built to the highest quality standards in the industry. This
profitable machine will serve any grueling fabrication shop for
decades to come
3. The machine by the European Union CE certification and ISO
quality system certification
B. Hydraulic system:
1. Adopt integrated hydraulic control system, more reliable and
easy for maintenance. Hydraulic system is from Bosch –
Rexroth,Germany.
2. All seals in cylinder is PARKER from USA,the most famous
brand,good quality and high performance
3. Being able to work under rated load continuously,stable working
and high precision.
C. Machine Blade: The rectangular monoblock blades featuring long life with 4
cutting edges, quality high-carbon high-chrome blades D2 quality.
D. Electrical system and the safety interlock:
1. Electrical components are from European,in accordance with
international standards,reliable safety,long life,good
anti-interference ability,a radiation unit is fitted in electrical
cabinet.
2. Protective fence and the safety interlock to ensure the
operation safety. Have a movable single-hand pedal switch,easy to
operate.
3. Emergency stops on machine and foot switch for safety,Foot pedal
conforming to CE regulation.
Technical Parameters:
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-60 |
| Puching pressure(T) | 60T | 100T | 120T | 160T | 250T | 315T |
| Max cutting thickness of steel plates(mm) | 16 | 20 | 25 | 30 | 40 | 60 |
| Material strength (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angel of shear (°) | 7° | 8° | 8° | 8° | 8° | 8° |
| Flat bar shearing (T×W)(mm) | 16*250 8*400 | 20*330 10*480 | 25*330 16*600 | 30*335 20*600 | 40*330 20*700 | 508300 30*750 |
| Max length of slinder strock(mm) | 80 | 80 | 80 | 80 | 100 | 100 |
| Trips frequency(times/min) | 11~20 | 12~20 | 8~18 | 6~16 | 6~16 | 6~12 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Punch depth(mm) | 16 | 20 | 25 | 28 | 35 | 40 |
| Max.punching diameter(㎜) | 28 | 33 | 35 | 38 | 40 | 45 |
| Motor Power(KW) | 5.5 | 7.5 | 11 | 11 | 15 | 30 |
| Dimensions(L× W ×H)(mm) | 1780*920*1780 | 1952*920*1950 | 2355*1000*2150 | 2840*1200*2330 | 2940*1200*2330 | 3200*1440*2500 |
Details:
Angle Station
This station provides large capacity angle cutting at 90°and 45°.
Angles between 45°and 90° can be achieved by first cutting at
90°and then flange trimming to the required angle in this shearing
station.
Flat cutting
Positioning ruler on the worktable can control the cutting shape
and cutting length with higher accuracy. The ironworker can cut
small flat sheets. This function is same with shearing machine.

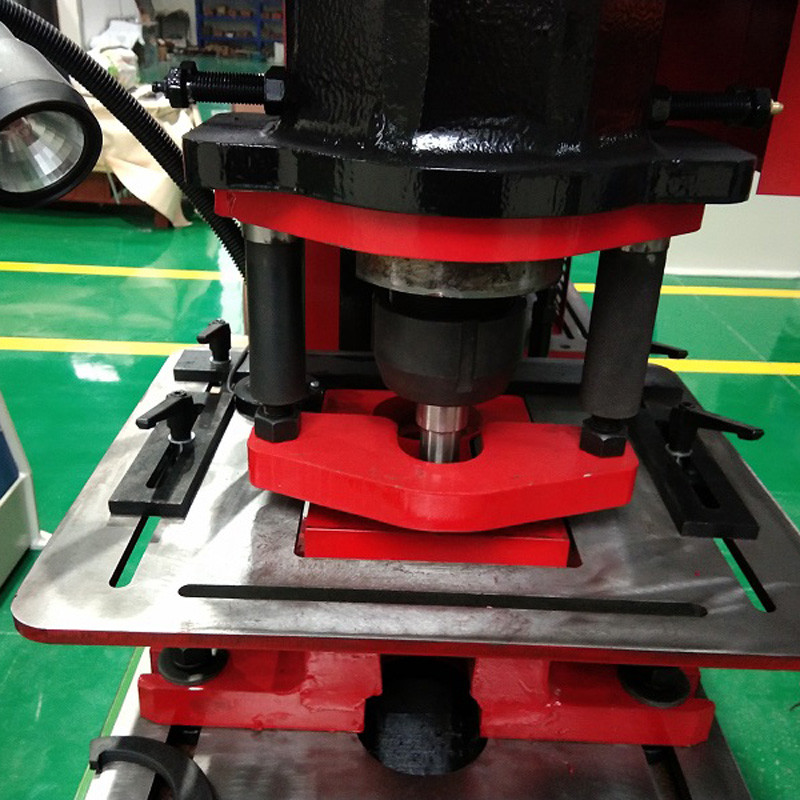

Punching Station
The large punch bed area has a removable front block and is
designed to give a very wide range of punching applications. A
punch table with rules and guides for repetition work are fitted as
the standard machine

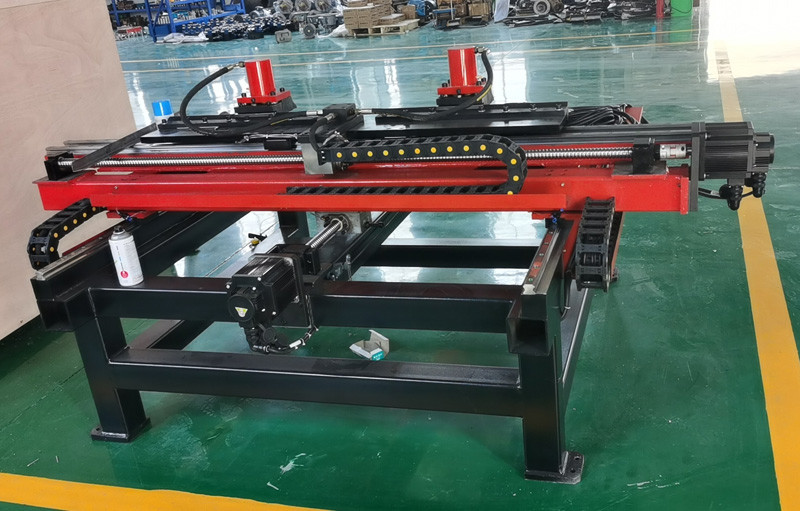

Optional: feeder
Automatic feeding table, after connecting, can realize automatic,
save labor cost, fast and convenient.
Pre-sales.
* Project design, performance introduction, technical agreement,
contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product
assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human
parts.
* Training how to install the machine, training how to use the
machine with video and so on
* And our technical staff can go abroad to provide technical
guidance.
For more information, please contact me (^o^)/~
