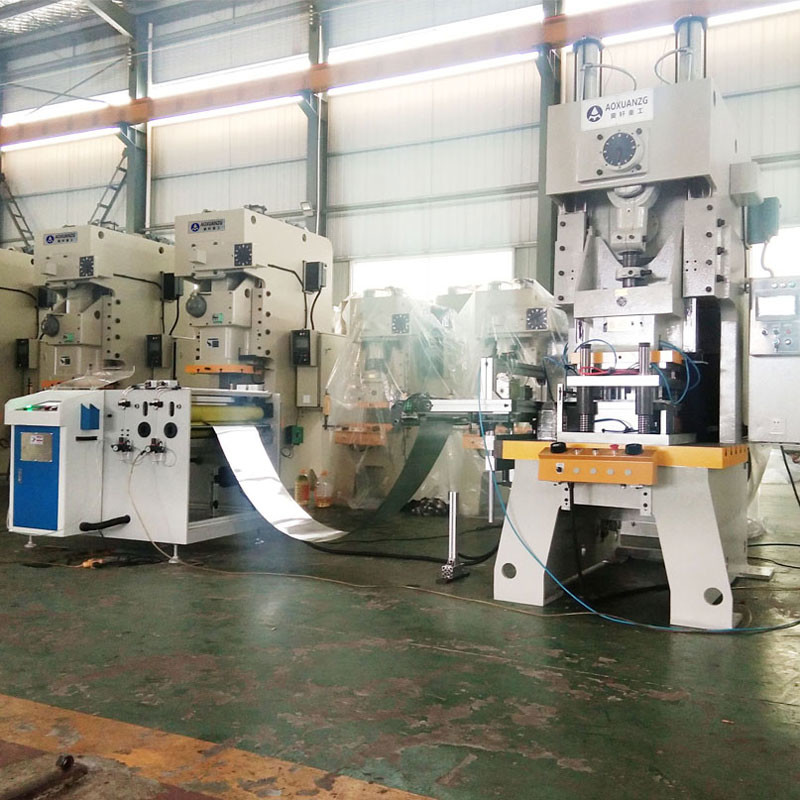

    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder

    Single Crank 63T Pneumatic Punching Machine For Aluminum Foil Container With Feeder


    Main Features:
    1. J21 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
    2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
    3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
    4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
    5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
    6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
    7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
    8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.


    Technical Parameters:

    ITEMUNITJH21-25JH21-45JH21-60JH21-80JH21-125JH21-160JH21-200JH21-250JH21-315JH21-400
    Nominal CapacityKN250450600800125016002000250031504000
    Slide Strokemm80120140160180200220220220250
    Slide StrokesFixedTimes/min100807060504545303030
    Variable(optional)Times/min60-10050-8045-7040-6035-5030-4525-4520-3020-3020-30
    Max. Die Shut Heightmm250270300320350400450500500550
    Die Shut Height Adjustmentmm5060708090100110120120120
    Throat Depthmm210225270310350400430450450490
    Distance Between Columnsmm4505155606106707369109809801050
    Slide Bottom SizeF-Bmm250340400460520580650700700750
    L-Rmm3604104805406207008809509501020
    Shank Hole SizeDiametermm40505050707070707070
    Depthmm6560706590100100130130130
    Bolster SizeF-Bmm400440520600680760840880880950
    L-Rmm720825930950110011751390150015401700
    Thicknessmm80110130140155165180190190210
    Bed Opening Hole Diametermm150150150180200220250270270290
    Overall DimensionsF-Bmm1496158515401765204023052600266027202850
    L-Rmm945107512001200132014201540164016801750
    Heightmm2120239125702725303532153800386538654150
    Motor PowerKW35.55.57.5111518.5223037
    Weight(approximate)kg245035505150645095501360019200232002660031600

    • Steel welded frame with high rigidity.
    • Motor with inverter.
    • Combined wet friction clutch.
    • Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
    • Hydraulic overload protector.
    • Lifting balance cylinder.
    • Imported dual solenoid valve.
    • Elec. forced grease lubrication.
    • Balance cylinder: manual oil lubrication.
    • Integrated panel (elec.cam included).
    • PLC control of international brand.
    • Contactor and button of international brand.
    • CE safety specifications
    • Optional: air cushion, light curtain, automotive device


    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder


    Name: Machine Body
    Original: China
    Heavy one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.


    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder

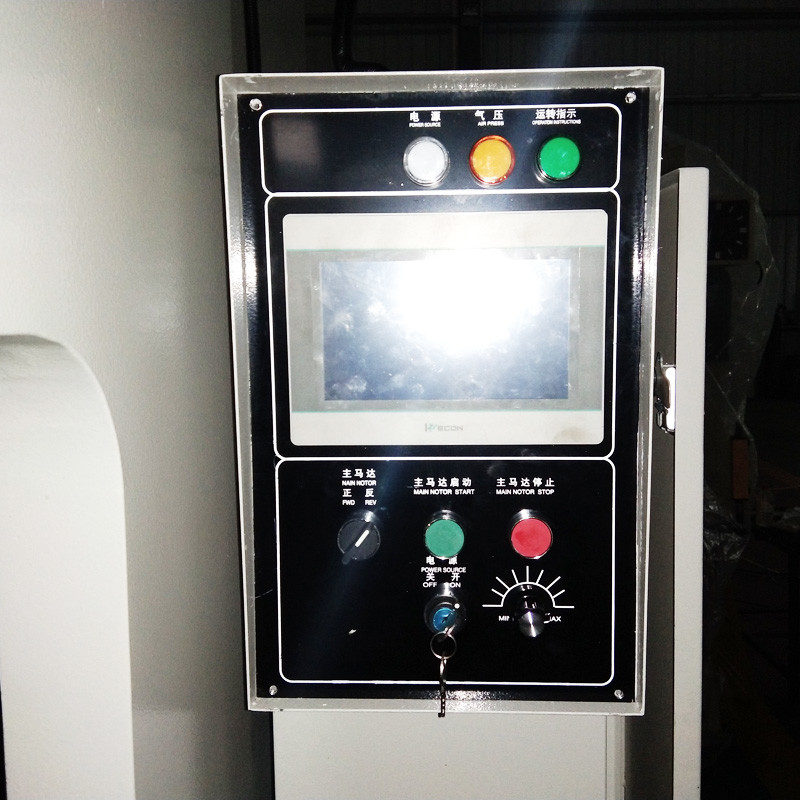

    Name: NC Control system
    Original: Made in China
    • Six programmable limit switches
    • Four programmable die protection inputs
    • LCD display screen for status and fault messages
    • LED display for crank angle and spm


    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder


    Electrical System
    Electrical components are imported or from Sino-foreign joint Venture,in accordance
    with intermational standards,reliable safety, long life,good anti-interference ability, a radiation unit is fitted in electrical cabinet.


    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder

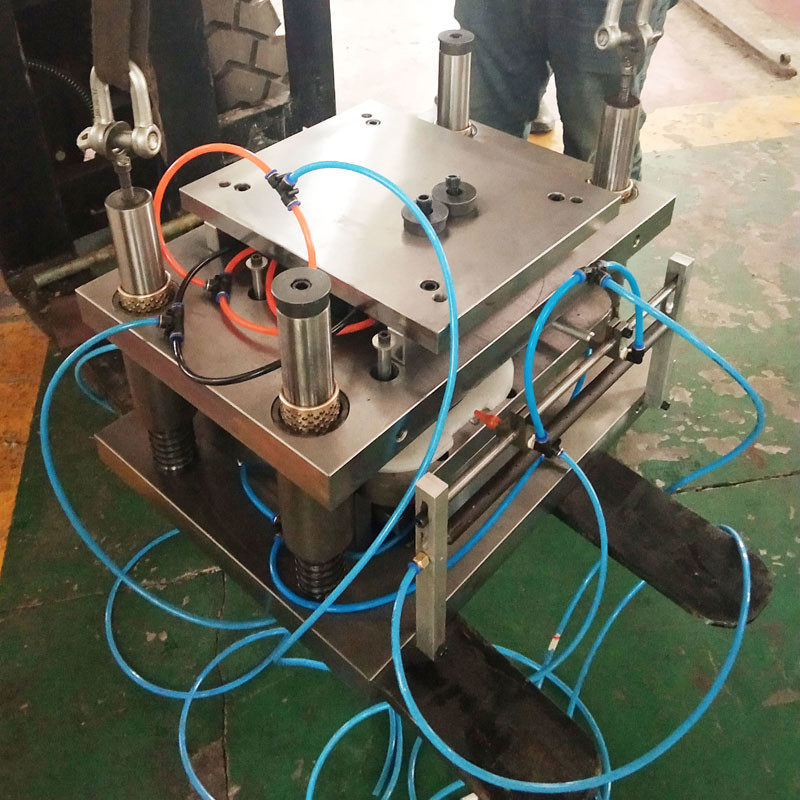

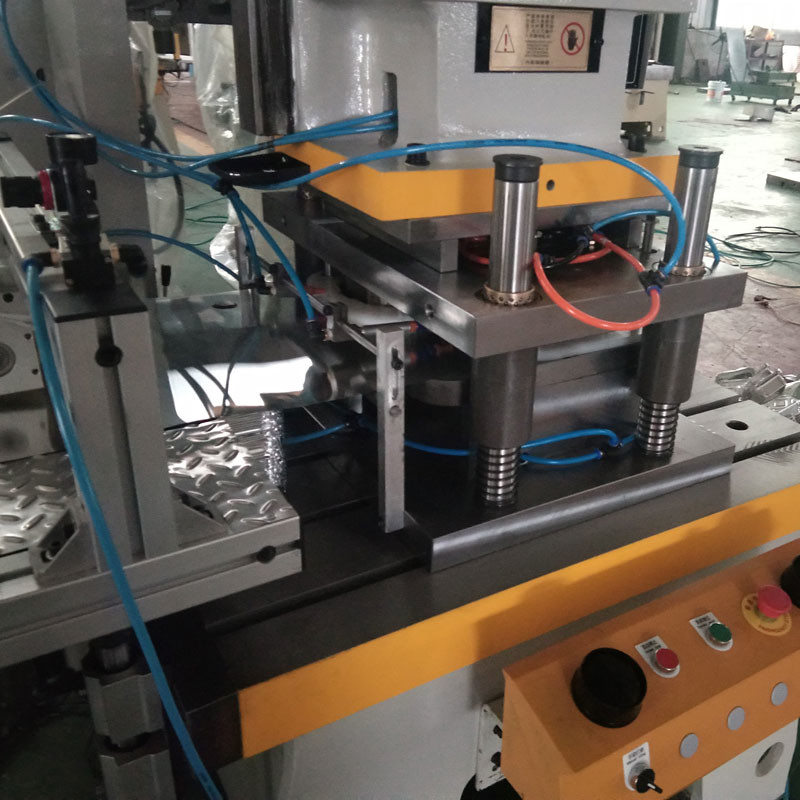

    Mould:
    According to customer requirements, accept customization. Customer needs to provide dimensions and drawings.


    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder

    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder

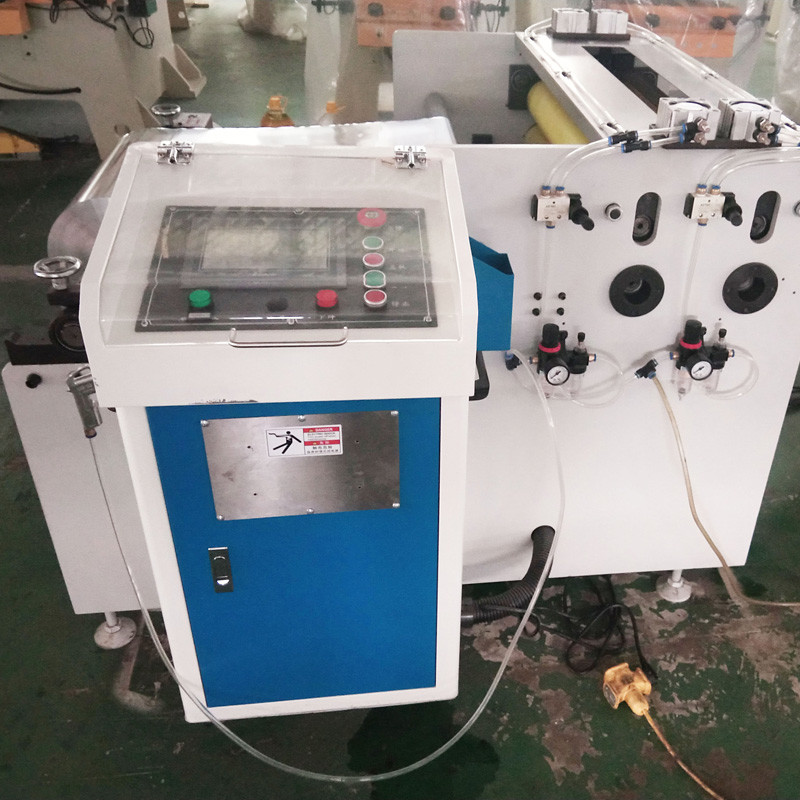

    Feeding machine:
    Aluminum foil lunch box special feeder, can be selected according to the customer's material width. Realize full automation, more convenient operation, low error rate, fast speed, save labor.


    Single Crank 63T Pneumatic Punching Machine 1000*1200mm Aluminium Hole Punch Machine With Feeder


    For more information, please contact me (^o^)/~
