Multi-Purpos 2 head 65T 90T Hydraulic Punch Shear Machine And
Ironworker
Hydraulic Punch Machine and Ironworker
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for over sized punching
7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders
11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment
Hydraulic Multi-Purpose Ironworker Machine
I. Structure and performance introduction:
This series of products are ideal equipment for cutting all kinds
of angle steel, I-beam, U-shape steel, right angle or 45 degree
angle steel. Multi-workstations make it possible to finish series
operations simultaneously on one machine, such as punching,
shearing and notching, Dual-piston-type combined punching and
shearing machine allows two-man operation at the same time
(stamping +another work station), German Rexroth’s integrated
hydraulic valve block ensures the stability of the machine, Through
Thermal Effect of annealing processing, the entire rack is able to
keep its shape forever, without deformation. The introduction of
imported brand accessories ensures the parts’ service life and use
precision.
* Punching: effective punching can be achieved with the machine,
and stamping die is easy to be replaced.
* Bar cutting: you can quickly cut the round bar and square steel,
if you want to cut U-shaped, I-beam or T-profile section steel only
by exchanging the cutting blade and the operation procedure is very
simple.
* Angle cutting: you can cut several 90 ° and 45 ° angles with the
help of special dies.
* Metal Sheet Bending: it is very easy to fulfill the daily metal
sheet bending work by making the bending moulds.
* Notching: The machine is equipped with a large-shaped slotting
blade head, which can meet your general use, as to, special shaping
blade head can be customized.
II. Main functions:
* 2 independent hydraulic piston rods and foot-pedal allows two
people operating at the same time.
* More efficient stroke-control functions of piston rod.
* Central lubricating system
* Motor-driven rear stopper
* Lighting devices for work
* 5 independent work-positions: punch pin and die (standard
punching dies),cutting blade group for round and square steel,
shearing blades for steel plate, slotting and angle-cutting
Technical Parameters:
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-60 |
| Puching pressure(T) | 60T | 100T | 120T | 160T | 250T | 315T |
| Max cutting thickness of steel plates(mm) | 16 | 20 | 25 | 30 | 40 | 60 |
| Material strength (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angel of shear (°) | 7° | 8° | 8° | 8° | 8° | 8° |
| Flat bar shearing (T×W)(mm) | 16*250 8*400 | 20*330 10*480 | 25*330 16*600 | 30*335 20*600 | 40*330 20*700 | 508300 30*750 |
| Max length of slinder strock(mm) | 80 | 80 | 80 | 80 | 100 | 100 |
| Trips frequency(times/min) | 11~20 | 12~20 | 8~18 | 6~16 | 6~16 | 6~12 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Punch depth(mm) | 16 | 20 | 25 | 28 | 35 | 40 |
| Max.punching diameter(㎜) | 28 | 33 | 35 | 38 | 40 | 45 |
| Motor Power(KW) | 5.5 | 7.5 | 11 | 11 | 15 | 30 |
| Dimensions(L× W ×H)(mm) | 1780*920*1780 | 1952*920*1950 | 2355*1000*2150 | 2840*1200*2330 | 2940*1200*2330 | 3200*1440*2500 |
Details:

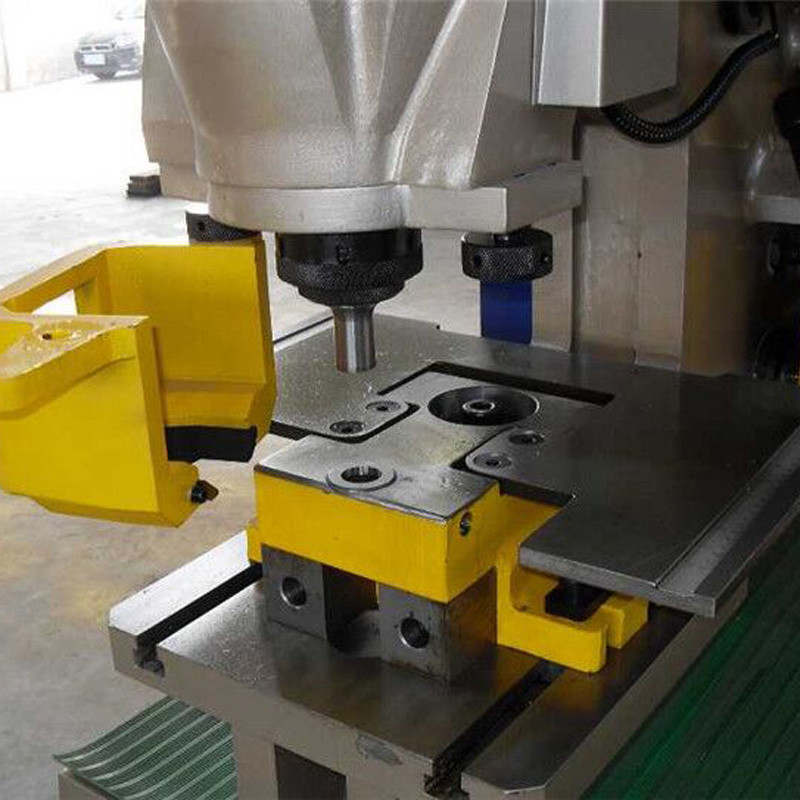

Punching parts
Full range of universal punches and dies are available. Unique
style allows for large angle iron punching and large channel
punching.
Large viewing window on stripper swing away design for ease of
operation. Large 2 piece gauging table with rulers and stop as
standard fittings. Quick change coupling nut and sleeve for rapid
replacement of change.
Each head can be customized for different pressure, we can be
customized for 1 head,3 head punching machine, suitable for
different pressure, but only need punching work.
Mould:
According to the needs of customers, customized different sizes of
die, including, round, square, oval and so on. The customer only
needs to provide the graphics and dimensions. This machine standard
15 sets of circular mold (free).
Packing Detail:
☂ Each ironworker with plastic film package first, then placed in a
wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to
the harbor terminal.At the dock we pack the goods in containers and
ship them abroad.
Delivery Detail :
☀ Shipped in 25 days after payment.
Pre-sales.
* Project design, performance introduction, technical agreement,
contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product
assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human
parts.
* Training how to install the machine, training how to use the
machine with video and so on
* And our technical staff can go abroad to provide technical
guidance.
For more information, please contact me (^o^)/~
