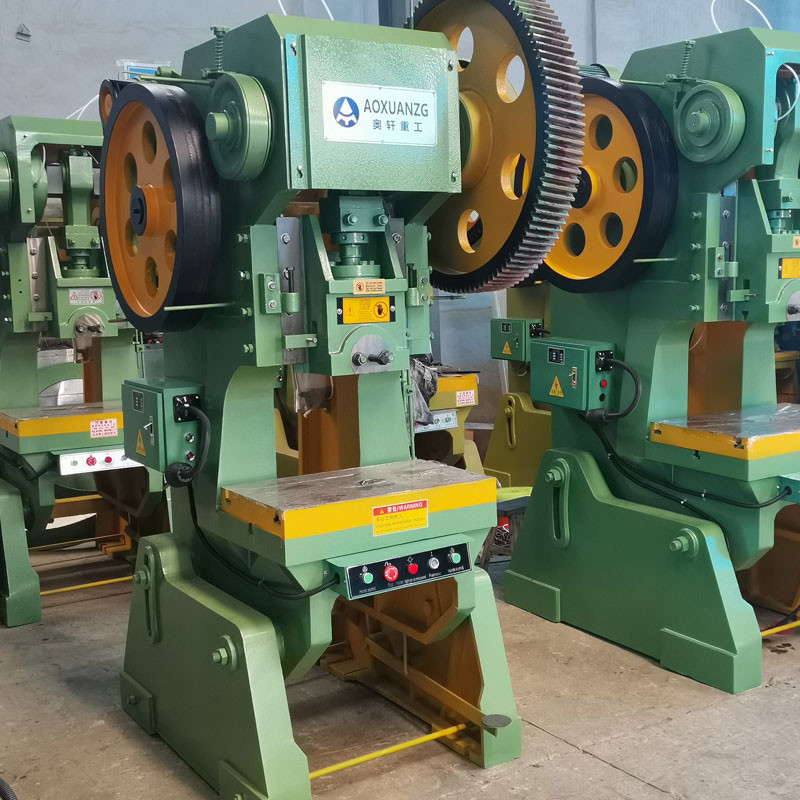

    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : J23-40T
    Certification : CE
    Price : $5050
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel

    Molds Customized 40T Mechanical Punching Machine For Air Duct Equipment Parts Angle Steel


    Main Features:

    1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
    2. Steel-welded frame, high rigidity and less deformation Compact.
    3. Thick plates and large columns provide you with the stable platform you need for your demanding application.
    4. High accuracy, high efficiency, simple and convenient operation, good performance.
    5. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical.
    6. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.


    The press is applicable to compression of plastic materials. For example, powder and plastic products forming and heat/cool metal extruction, stamping, bending, edge-folding, straightening, depressed mounting and etc.


    Technical Parameters:
    ModelJ23-6.3TJ23-12TJ23-16TJ23-25TJ23-40TJ23-63TJ23-80TJ23-100TJ23-125T
    Nominal Pressure(KN)6312016025040063080010001250
    Nominal Pressure Stroke(mm)1.5222.544555
    Slide stroke(mm)40506070100100120120140
    Stroke frequency (times/min)150140100705556455040
    Die Set Height (mm)120130170200240275300320340
    Die Height Adjustment304040405663708090
    Worktable Size ( front-back) (mm)210220290350400450480580700
    Worktable Size ( Left-Right)(mm)3503704605606806807809101100
    Max Tilt Angle202030152525252020
    Die Handle Hole Size (mm)253035405050606060
    Thickness of the Worktable30354550708090110120
    Worktable Hole Diameter7090120130135140160160170
    Power(KW)0.751.51.52.2345.57.511
    Column Spacing (mm)140170190240250280320390400
    Dimensions (mm)400*500*1300600*530*1500760*650*1600900*700*20001400*1000*23001700*1150*25002000*1300*26501950*1400*28502300*1500*3000
    Throat Depth (mm)120130170190250260290330330

    Details:


    The machine body have been heat-treated to eliminate internal stress. At the same time, they have been processed on our CNC floor boring and milling machine. the bottom surface of the worktable, the side of the slider guide rail, and the crank sleeve are processed integrally to ensure the initial accuracy of assembly.


    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel


    Crankshafts are all high-quality crankshafts made of 42CRMo steel after high temperature forging. the surface is quite smooth. so that make sure the lower friction resistance , and the lower noise. It is lubricated. The press work more smooth.


    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel


    Toolkit


    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel

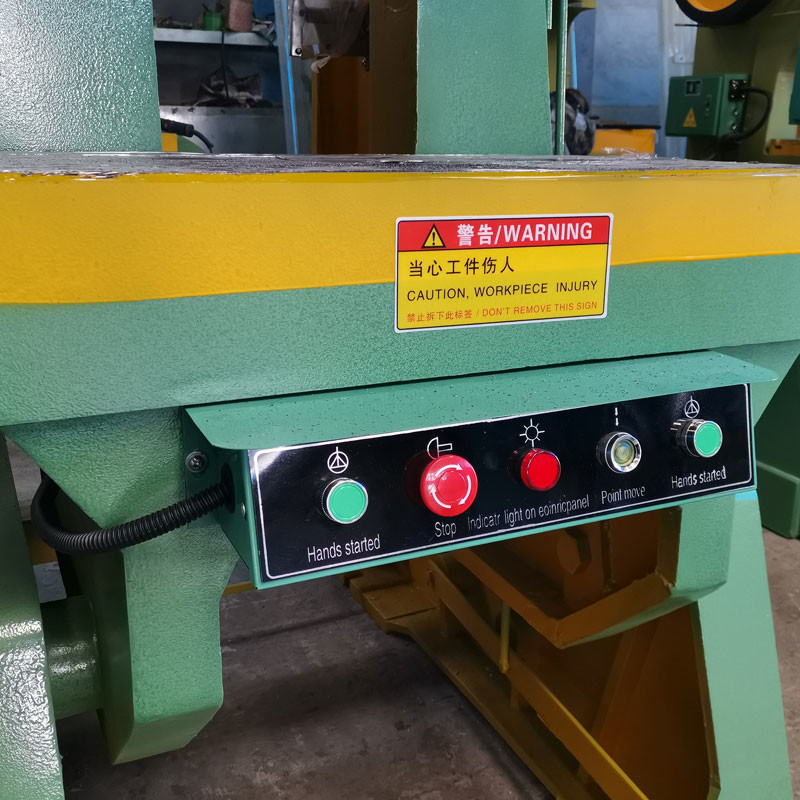

    Warning sign

    Both-hands operation buttons to ensure the operators' safety.


    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel


    T type slot, easy to install and uninstall molds,It is firmly fixed and will not move.Table size can be customized.


    CNC Angle Mechanical Punching Machine 40T 3kw For Air Duct Steel
