    Full Automatic 13 Axis Hydraulic CNC Press Brake For File Cabinet

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : 2500P
    Certification : CE
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 50sets/Year
    Delivery Time : 20-30 days
    Price : $124530-135650
    • Product Details
    • Company Profile

    Full Automatic 13 Axis Hydraulic CNC Press Brake For File Cabinet

    High Speed CNC Full Automatic 13 Axis Hydraulic Press Brake For File Cabinet
    Our equipment is designed and produced according to the high precision machine standards,the main lathe bed adopts high grade castings,and the casting and weld assembly are all subjected to strict stress relieving process,also,they are producted integrated by ultra precision machine tol,finally,with the stictly control by our high precision detector,our machines can ensure the higher accuracy,higher stability and higher rigidity during there long-time running period.

    Technical Parameters:


    Maximum bending speed0.2S/Blade
    Maximum bending width2500mm
    Bending height170mm(customizable)
    The rated voltage380V
    Peak power28KW
    Average power2.8KW
    The noiseAbout 50 decibels
    Outline dimension565cm X 300cm X 340cm
    The total quality19T
    Maximum bending Thickness
    (standard)
    Optional thickness
    UTS 515N/mm2 201 Stanilness steel 0.8mm
    UTS 520N/mm2 304 Stanilness steel 1.0mm
    UTS 410N/mm2 cold-plate 1.2mm
    UTS 265N/mm2 aluminium plate 1.6mm
    Minimum material thickness0.35mm
    Minimum inner dimensions140mmx190mm
    Minimum inner size140mm
    Maximum bending size2500mmX1250mm
    Number of shafStandard 13 axis concurrent linkage
    Conventional hinge cutter(option)
    Power hinge cutter(option)

    Full Automatic 13 Axis Hydraulic CNC Press Brake For File CabinetFull Automatic 13 Axis Hydraulic CNC Press Brake For File Cabinet


    Details:


    High grade casting
    Equipment core framework using high grade QT500-7 and HT250 castings, and must be measured by a testing instrument. After precise finite element force analysis, the frame adopts the most stable triangular interconnection design, which greatly guarantees the stability under high tonnage impact force.
    High welding standard
    No matter big and small, in the whole welding process adopts carbon dioxide protection welding. Every welding place ues full welding technology to ensure the welding workpiece is strong and beautiful.
    Thoroughly eliminate stress
    Both casting and welding support mesa, adopt high precision temperature control furnace,according to the material of the corresponding temperature curve to make multiple tempering, annealing and other heat treatment process, then enough long full frequency vibration aging treatment, completely release the internal stress of workpiece,
    ensure that used for a long time not to be out of shape.
    Precision machining
    Different fixtures are designed for different workpieces, and the high-precision multi-axis machining center is used to finish the workpieces, which ensures the consistency of the precision before and after clamping.
    Strict testing
    Using high-precision micrometer U meter, with marble platform and marble square feet with tens of millions of years of aging, accurate measurement for each workpiece, control the processing quality of each workpiece strictly and check on strictly, to ensure that the assembly precision of the whole machine meets the standard of high-precision machine tools.

    Full Automatic 13 Axis Hydraulic CNC Press Brake For File CabinetFull Automatic 13 Axis Hydraulic CNC Press Brake For File Cabinet

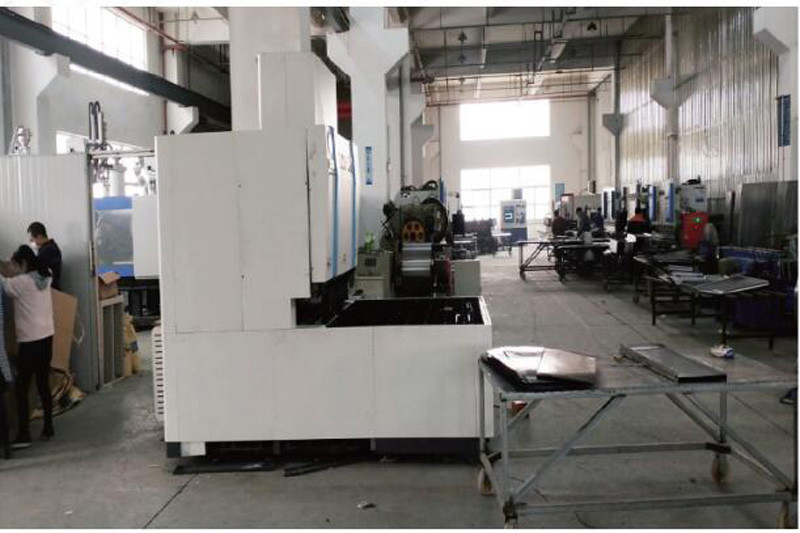

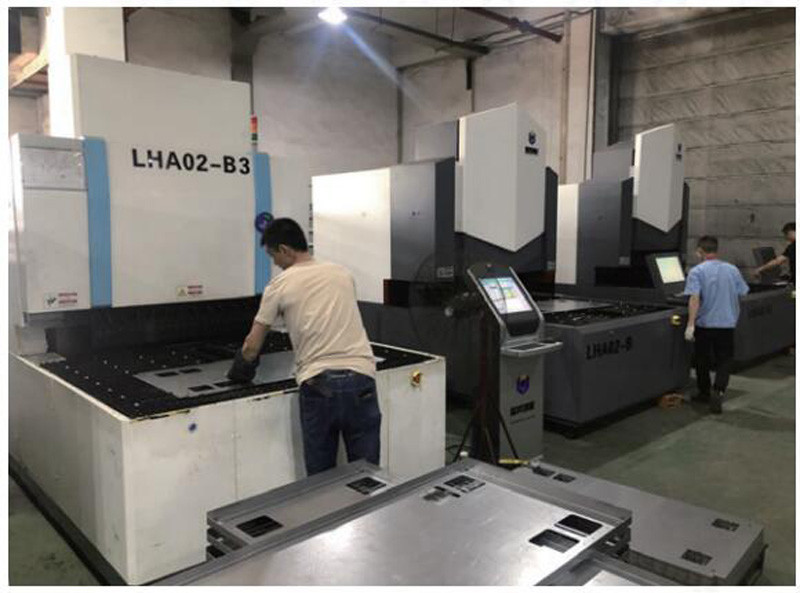

    Display:
    Full Automatic 13 Axis Hydraulic CNC Press Brake For File Cabinet
    For more information, please contact me (^o^)/~
