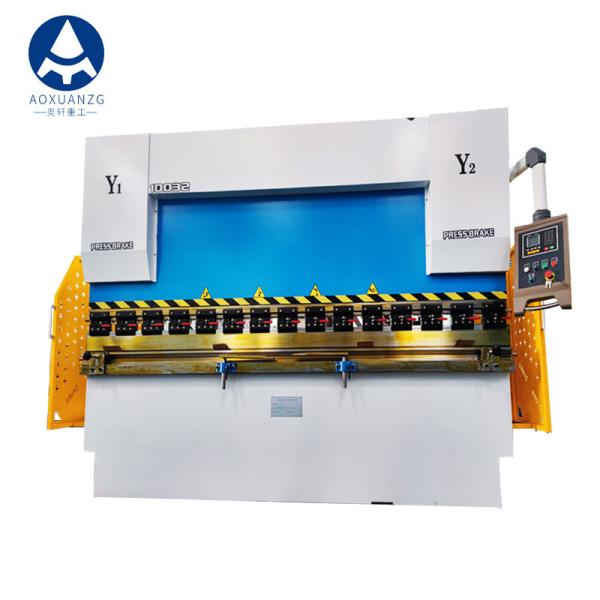

1000kn Iron Sheet Plate CNC Bending Machine Hydraulic

    Buy cheap 1000kn Iron Sheet Plate CNC Bending Machine Hydraulic from wholesalers

    Buy cheap 1000kn Iron Sheet Plate CNC Bending Machine Hydraulic from wholesalers
    • Buy cheap 1000kn Iron Sheet Plate CNC Bending Machine Hydraulic from wholesalers
    • Buy cheap 1000kn Iron Sheet Plate CNC Bending Machine Hydraulic from wholesalers

    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-100T/3200
    Certification : CE
    Price : $8000-$10000/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic

    WC67K 1000kn Iron Sheet Plate NC Bending Folding Machine Hydraulic CNC Bender
    NC Press brake series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic


    Details:


    Custom hand shift finger


    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic


    Main Motor
    The main motor adopts the German Siemens brand, which has low noise and long service life during work.


    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic


    Backgauge
    High-precision backgauge device, ball screw and linear guider rail

    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic


    Left / Right /Back protective Guard
    Protective guard installed both in left,right and back to protect safety of operators.


    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic


    6 Sets will delivery to Russia.


    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic

    For more information, please contact me (^o^)/~


    1000kn Iron Sheet Plate CNC Bending Machine Hydraulic
