Technical Parameters:

​

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Details:

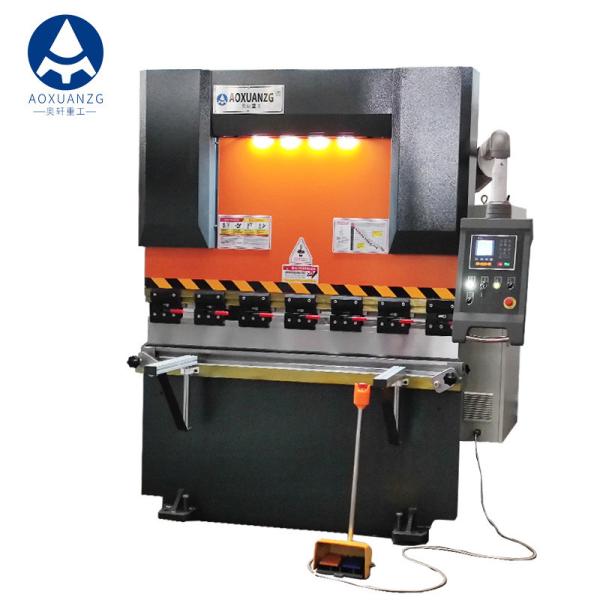

E21 controller
Positioning control of back gauge X axis.
Intelligent punch beam Y axis positioning control.
Unilateral and bidirectional positioning which eliminates spindle clearance effectively.
Retract functions.
Automatic reference searching.
One-key parameter backup and restore function.

Fast position indexing.
40 programs storage space, each program has 25 steps.
Power-off protection.

Brand:

Press Brake Tooling
They are made from 40CrMo Materials with hardness up to 52 degrees to ensuring die service life

High Precision Back-Gauge
The unique and novel ball screw linear guide structure back-gauge ensures high positioning accuracy. Multi-level with movable,adjustable stop fingers. Increased positioning range makes bending more efficient and accurate . Optional function more Complete multiple Axes.

Packing and shipping:

For standard export packaging, the whole body of the machine is wrapped with plastic film, and then packed in wooden cases.There two kinds of ways: LCL is for small press brake, FCL is for big press brake.

※ LCL: Covered by plastic films, packed by wooden case.

※ FCL: Covered by plastic films, packed by a container.

☀ Beforepackaged, the machines will be tested strictly to guarantee the stability and high accuracy.

☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.

☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

✈ Shipped in 30 days after payment.
