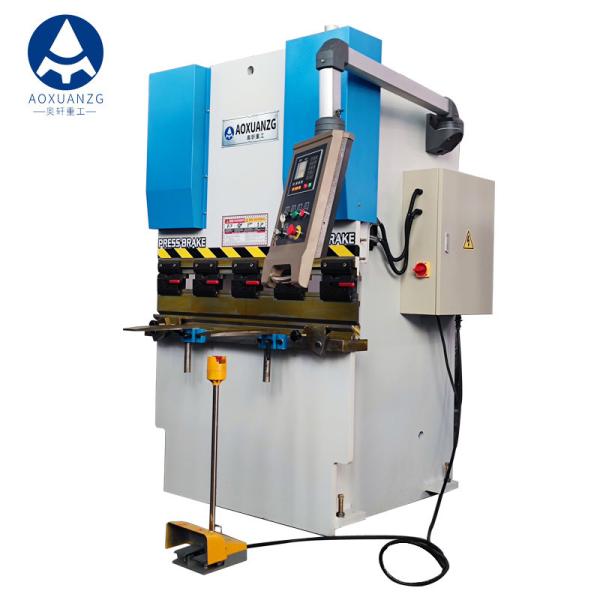

1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel

    Buy cheap 1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel from wholesalers

    Buy cheap 1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel from wholesalers
    • Buy cheap 1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel from wholesalers
    • Buy cheap 1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel from wholesalers
    • Buy cheap 1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel from wholesalers

    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-400KN/1200MM
    Certification : CE,CO
    Price : $6800-$8000/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel

    40T1200MM Small Press Brakes Press Bend Machine Bending Foldder For 2mm Stainless Steel
    Main features
    1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
    2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
    3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
    4. Upper clamp is fitted with compensation device.
    5. Worktable mechanical compensation or hydraulic compensation device is optional.

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel

    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel


    Details:


    E21 controller


    1. The X-axis and Y-axis are programmed by the NC E21 system to achieve accurate positioning of the inverter.
    2. WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.
    3. Rear Stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in coopeartion with digital display system, thus to further increase the operating precision of this machine.


    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel


    Backgauge
    High-precision backgauge device, ball screw and linear guider rail

    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel


    France Schneider electric
    Using the Schneider electric with high reliability and Estun servo drive to improving the positioning accuracy of X.Y Axis.


    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel


    Back gauge adopt imported ball screw

    In order to guarantee the precision of positioning of back gauge and improve the precision of processing ,positioning±0.02mm,repeat positioning, long life with high stability,high speed


    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel


    Fast-clamp
    Mechanical quick clamps or upper die is more safe and efficient when changing the upper die.


    1200MM Small Torsion Bar Press Brake 400 Kn For 2mm Stainless Steel


    RFQ

    1. Are you the manufacture? Can we visit your factory?
    ◆ Of course, you can. We are manufacturer and we are located in Anhui,China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

    2.What's your main product? What is your main foreign market?
    ◆ Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products.Our main foreign markets are Asia, North America, Europe, and Africa.

    3. What are the advantages of your machines? And how can I believe the quality of your product?
    ◆ The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.

    4. Are you able to update the production process Information in time after placing our order?
    ◆ After confirming your order ,we would keep you updated of production details of emails and photos.

    5. Can we be your agent?
    ◆ Yes,we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine
    technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

    6. Payment terms?
    ◆ T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

    7. Are you provide product metal parts and provide us technical guidance?
    ◆ Wearing parts, Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.

    8. How long is your warranty?
    ◆ 2 years free warranty, life-long maintenance.

    9.Do you accept customer Logo and customized ?
    ◆ We accept kinds of customized , including logo and machine .


    For more information, please contact me (^o^)/~
