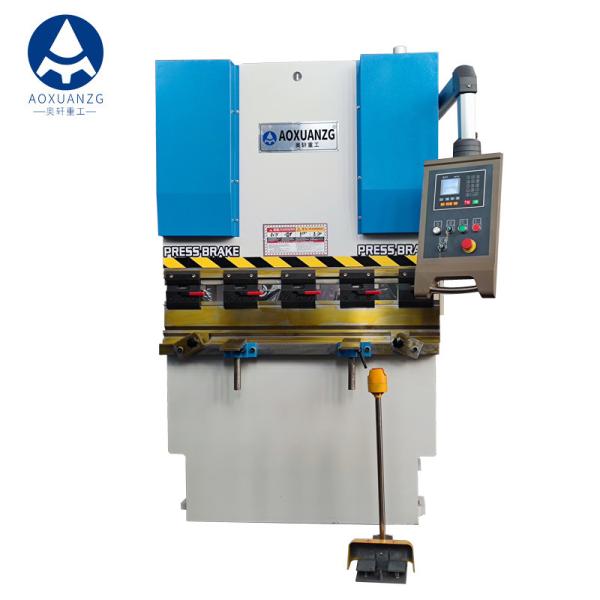

    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-40T/1200MM
    Certification : CE,CO
    Price : $6800-$8000/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding

    Fast Delivery 400KN 1200mm Press Brake With E21 Controller Folding Machine Bender
    NC Press brake series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.
    Main features
    1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
    2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
    3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
    4. Upper clamp is fitted with compensation device.
    5. Worktable mechanical compensation or hydraulic compensation device is optional.

    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150

    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    Details:


    E21 controller


    1. The X-axis and Y-axis are programmed by the NC E21 system to achieve accurate positioning of the inverter.
    2. WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.
    3. Rear Stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in coopeartion with digital display system, thus to further increase the operating precision of this machine.


    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    Main Motor
    The main motor adopts the German Siemens brand, which has low noise and long service life during work.


    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    Backgauge
    High-precision backgauge device, ball screw and linear guider rail

    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    France Schneider electric
    Using the Schneider electric with high reliability and Estun servo drive to improving the positioning accuracy of X.Y Axis.


    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    Back gauge adopt imported ball screw

    In order to guarantee the precision of positioning of back gauge and improve the precision of processing ,positioning±0.02mm,repeat positioning, long life with high stability,high speed


    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding


    Packing and shipping:
    For standard export packaging, the whole body of the machine is wrapped with plastic film, and then packed in wooden cases.There two kinds of ways: LCL is for small press brake, FCL is for big press brake.
    ※ LCL: Covered by plastic films, packed by wooden case.
    ※ FCL: Covered by plastic films, packed by a container.
    ☀ Beforepackaged, the machines will be tested strictly to guarantee the stability and high accuracy.
    ☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
    ☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
    ✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
    Delivery Detail :
    ✈ Shipped in 30 days after payment.

    For more information, please contact me (^o^)/~


    400KN 1200mm Hydraulic Press Brake With E21 Controller Folding
